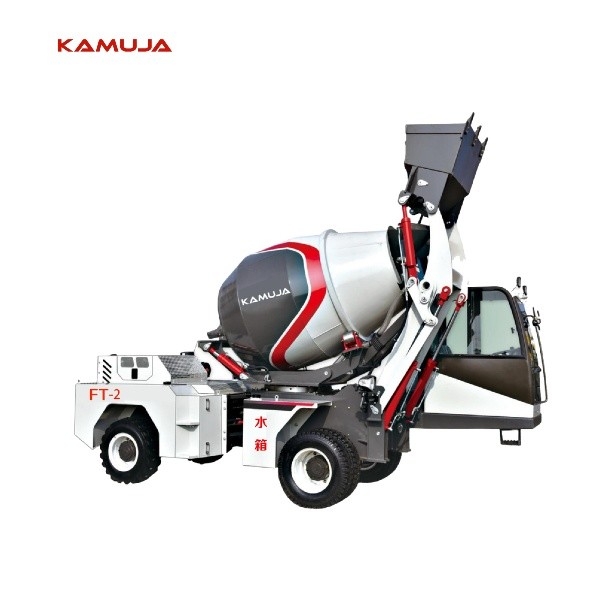

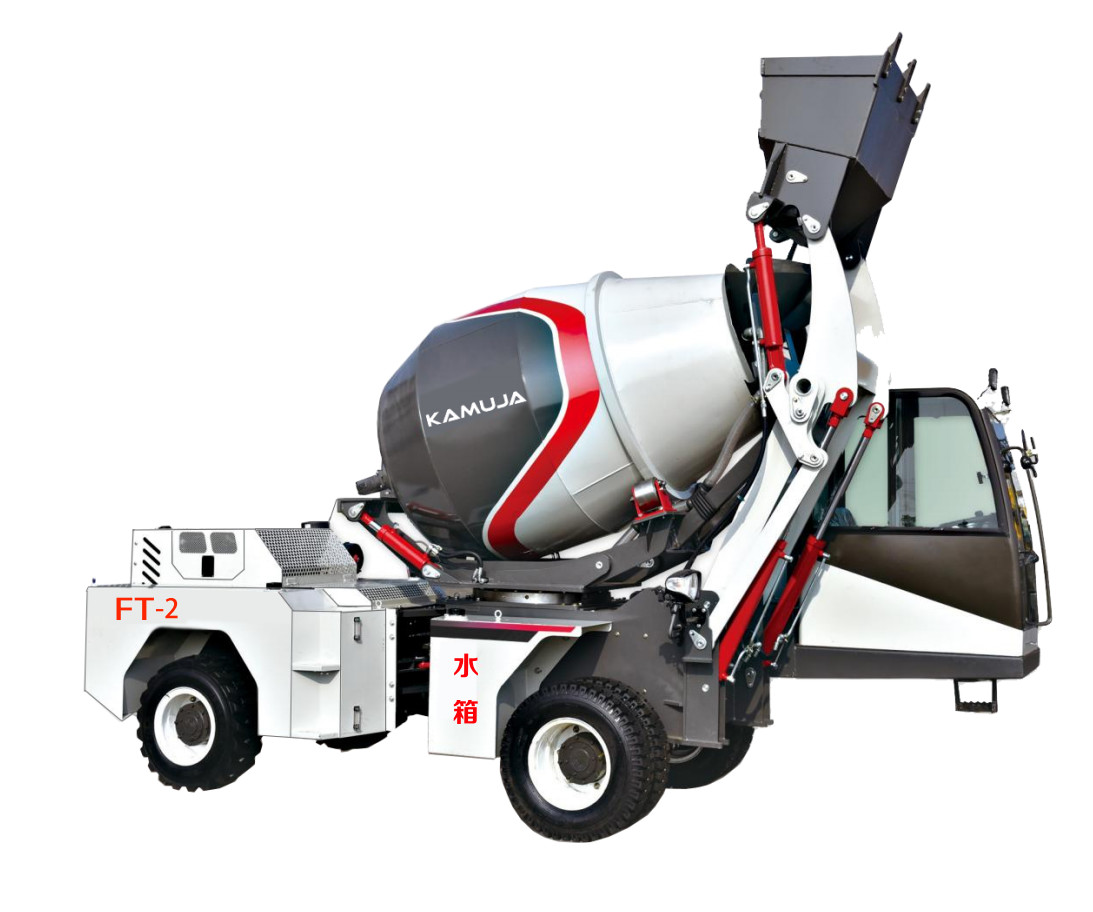

Hydraulic 2m3 Auto Concrete Mixer Truck Mounted Concrete Mixer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 2 Cubic Meters | Chassis Type | Truck Mounted |
|---|---|---|---|
| Control System | Fully Automatic | Discharge Method | Hydraulic, Electrical |
| Drum Material | Steel | Power Source | Diesel |
| Warranty | 1 Year | Water Supply System | Automatic |
| High Light | 2m3 auto concrete mixer,hydraulic auto concrete mixer,hydraulic concrete mixer truck |
||
Product Description
Automatic Concrete Feeding Mixer-Output of concrete:2m³/tank
OVERALL
SPECIFICATIONS
| Item | Specification | Unit | FT-2 |
| Diesel Engine | Type | YN38GBZ | |
| Total displacement cylinders | 3800cc,4-in-line | ||
| Injection | Direct injection and mechanical control | ||
| Cooling system | Water-cooling,dry air filter | ||
| Maximum power | Kw |
76 | |
| Maximum torque | N-m/r/min | 340/1440-1800 | |
| Electric System | Generator | 28v-750W | |
| Battery | 2*12V-60AH(272A) | ||
| Speed | The first high speed/second high speed | Km/h | 0-16.5/0-32.5 |
| The first low speed/second low speed | Km/h | 0-6/0-12 | |
| Axle and Tyre | Rear axle oscillating | ± | 10° |
| Tyre | 25.5/70-16 | ||
| Mixing and Unloading | The geometrical volume of drum | L | 3200 |
| The rotation speed of drum | r/min | 18 | |
| Equipment Hydraulic System | Maximum flow rate | ml/r | 40/63 |
| Maximum pressure | Map | 20 | |
| Loading | Capacity | ㎥ | 0.4 |
| Times | 5 | ||
| Maintenance and Oil filling | Fuel tank | L | 165 |
| Total hydraulic system capacity | L | 165 | |
| Engine | L | 10 | |
| Weight | Operating weight | kg | |
| Max Weight | kg | ||
| Load-carrying capacity | kg | 5000 | |
| Steering | Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering. | ||
| 4*4 Four-Wheel Drive | Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed. | ||
| Brakes | External disc brake and emergency brake acting on four wheels, independent dual circuit brake and hand-control to braking. | ||
| Water system |
Hydraulic centrifugal self suction pump injection, the capacity is 14-16m³/h, Inside : it is 150L/min. The total capacity of two connected water tanks positioned opposite is 350L Visual flowmeter, the water intake of the roller by hand-control.
|
||
| Cab | Closed cab with heating system,tilting front window, humanized seat flexible suspension and height adjustment are provided. | ||
