Product Details:
Payment & Shipping Terms:
|
| Head Diameter: | 50-70mm | Power Source: | Electric |
|---|---|---|---|
| Hose Lenght: | 4-12m | Hose Diameter: | 28-30mm |
| Inner Shaft Diameter: | 13mm | ||
| High Light: | electric concrete poker,honda concrete poker |
||

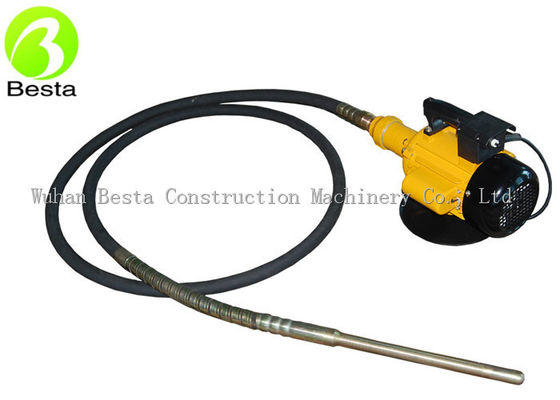

Description of concrete vibrator
Concrete poker vibrator, work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineer.
Features of concrete vibrator
1. Stable operation.
2. Good mechanical performance.
3. Low noise.
4.Good anti-wear performance.
5.heads and shafts can be combined and rapidly exchanged to match the right equipment for the job.
6.Powered by 4-stroke gasoline engine, easy to start,low noise operation,low mintenance and reduced fuel consumption .
| Model | ZV25 | ZV35 | ZV38 | ZV45 | ZV50 | ZV70 | ZP38 | ZP45 | ZMC25-1M | ZMC35-1M | |
| Engine | Electric 1.1-1.5kw or Fuel Engine 3-5.5HP | Handheld 800w | |||||||||
| Dia.of head(mm) | 26 | 36 | 38 | 47 | 51 | 68 | 38 | 45 | 25 | 35 | |
| Frequency(Hz) | 230 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 260 | 300 | |
| Amplitude(mm) | 1.1 | 1.15 | 1.18 | 1.2 | 1.21 | 1.32 | 1.2 | 1.25 | 0.7 | 0.8 | |
| Dia.of Hose | outer | 24 | 30 | 30 | 32 | 36 | 46/36 | 30 | 36 | 24 | 30 |
| (mm) | inner | 13 | 16 | 16 | 18 | 20 | 20 | 16 | 18 | 13 | 16 |
| Dia.of Shaft(mm) | 8 | 10 | 10 | 13 | 13 | 13 | 10 | 13 | 8 | 10 | |
