Product Details:
Payment & Shipping Terms:
|
| Power: | 3kw External Concrete Vibrator | Voltage: | 110v, 220v,380,410v |
|---|---|---|---|
| Vibrating Amplitude: | 2.2mm | Currency: | 6.4A |
| Weight: | 57kg | Size: | 45*33*35cm |
| High Light: | 3kw External Concrete Vibrator,Single Phase External Concrete Vibrator,3kw External Type Concrete Vibrator |
||

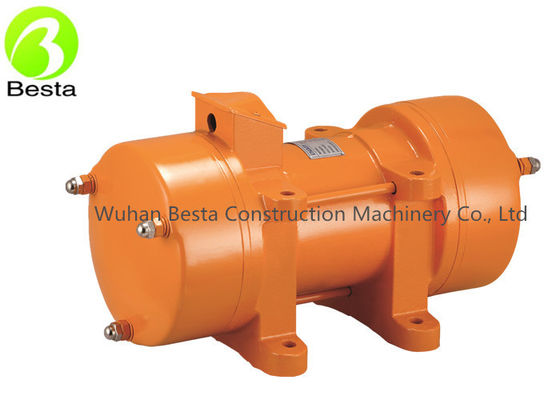

Adjustable 3kw External Concrete Vibrator Single Phase Construction Works
Advantage:
1. Motor coil is made of copper wire.
2. Voltage and phase can be customized by client
3. Cast iron body for more strong and stable.
Application:
As vibrating motor, used in Machinery Repair Shops, Manufacturing Plant, Construction wor.All concrete vibration scenarios .It is new universially energy saving vibration exciter for all kinds of vibration equipment exciter for all kind of vibration equipment like vibration screen, vibration feeder, crusher, vibration conveyor etc.
As concrete Vibrator, need to fitting the plate for vibrating concrte, make the concrete solidified stable.
| Model | Power Supply | Output Power | Vibrating Amplitude | Centrifugal Force | Current | Weight |
| V/Hz | kW | mm | kN | A | kg | |
| ZFT3 | 380/50 | 0.03 | 1.5 | 0.3-0 | 0.15 | 4.4 |
| ZFT9 | 380/50 | 0.09 | 2.1 | 1-0 | 0.19 | 4.4 |
| ZF18 | 380/50 | 0.18 | 2.3 | 1 | 0.37 | 7.5 |
| ZF25 | 380/50 | 0.25 | 1.8 | 1.8 | 0.67 | 12 |
| ZF55 | 380/50 | 0.55 | 1.64 | 4.15 | 1.3 | 21.5 |
| ZF80 | 380/50 | 0.8 | 2 | 2.6 | 1.74 | 27 |
| ZF110 | 380/50 | 1.1 | 2 | 4.3 | 2.52 | 27 |
| ZF150 | 380/50 | 1.5 | 2.4 | 8.3 | 3.18 | 38 |
| ZF220 | 380/50 | 2.2 | 2.2 | 10 | 4.6 | 46 |
| ZF300 | 380/50 | 3 | 2.2 | 14 | 6.4 | 57 |
