Product Details:
Payment & Shipping Terms:
|
| Name: | Construction Hoist Lift | Capacity: | 20 Person |
|---|---|---|---|
| Height: | 30-100M | Roomage Size: | 3*1.5*2.4M |
| Install Structure: | 1 Pillar 2 Roomage | Lifting Type: | Gear Driving |
| Section: | 1508*650*650mm | Power: | 380v 50Hz 11kw |
| High Light: | 20 Person Construction Hoist Lift,2000kg Construction Hoist Lift,20 Person Passenger Material Hoist |
||

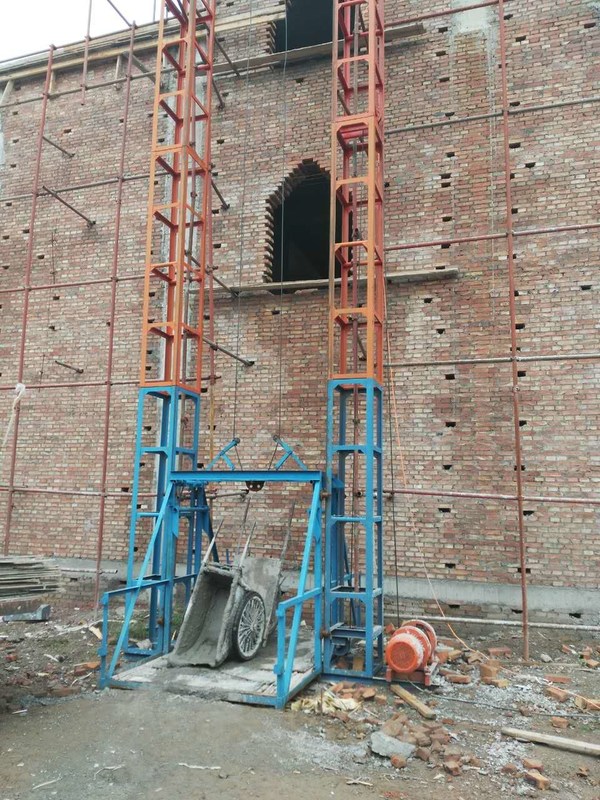

Remote Control 20 Person Construction Hoist Lift Passenger Material Hoist
The hoists have ISO, CE, SGS certificate, were exported to over 10 countries and earned a reputation
form our customers. We commit a good quality with exceptional service and technical support.
There are also other improvements to make sure the operation stable and reliable. That is the
Reason why we are so well received.
Product Feature:
1), Better safety control system.
2), High operational reliability.
3), Easy to use (install, dismount and maintain).
4), CE and ISO compliant.
5), Exceptional service and technical support.
6), Nice price, Will be within your budget.
Product Specification:
| Item | unit | SC200 | SSE100 | CL2T |
| Rated Load | Kg | 2000 | 1000 | 2000 |
| Rated Person | 20 | - | - | |
| Lifting speed | m/min | 36-38 | 17 | 21 |
| Roomage | m | 3*1.5*2.4 | 3.8*1.8*2 | 3.5*1.8*2 |
| Lifting Type | Gear | Steel Wire 12mm | Steel Wire 12mm | |
| Weight of Roomage | kg | 500*2 | 500 | 450 |
| Power of Main Hoist | kw | 11 | 7.5 | 7.5 |
| Power of Lifting | kw | 3 | 3 | - |
| Power Capacity | KVA | 270 | - | - |
| Power | KW | 11*3*2 | 7.5+3 | 7.5 |
| Standard Section | mm | 1508*650*650 | 3000*600*500 | 3000*712*500 |
| Weight of Section | kg | 140 | 97 | 100 |
| Operating Platform | kg | 435 | 435 | - |
| Standard Lifting Height | m | 100 | 30 | 20 |
| Max.Lifting Height | m | 150 | 81 | 30 |
| Safety Device | SAJ40-1.2 | SAS20 | SAS20 | |
| Total Weight | kg | 9000 | 4000 | 2350 |
