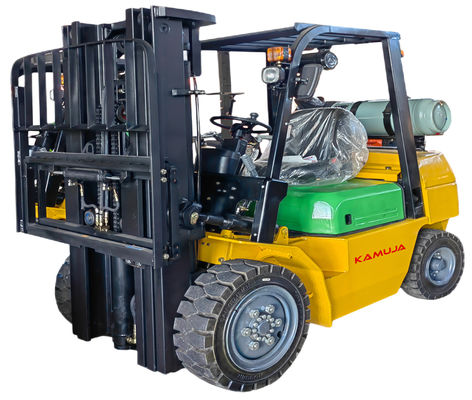

2.0T~3.5T Gasoline LPG Forklift Dual Fuel Forklift NISSAN Engine K21/K25
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel Type | Gasoline/LPG | Load Capacity | 2000Kg Up To 3500kg ( Different Model) |
|---|---|---|---|
| Mast Type | Doble Or Triple Stage | Max Lift Height | 3m Up To 5m |
| Tire Type | Pneumatic Or Solid | Transmission | Automatic |
| High Light | 3.5T Gasoline LPG Forklift,2.0T Gasoline LPG Forklift,K21 K25 Dual Fuel Forklift |
||
Product Description
Brochure.Dual Fuel Froklift-SF20Y25Y30Y35Y.pdf

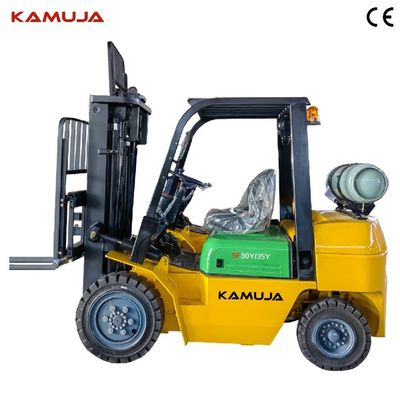

2.0~3.5T Gasoline&LPG Forklift , dual fuel, NISSAN Engine K21/K25
INTRODUCTION
Inherited the high quality characteristics of KAMUJA series products. The whole machine has a compact and reasonable structure, strong lifting capacity, low failure rate and good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short distance transportation of efficient equipment.
FEATURES
① ENGINE SYSTEM
The engine has good start performance, stable and reliable work, low fuel consumption and strong power. Engine configuration: SF20Y/25Y-NISSAN K21;SF30Y/35Y-NISSAN K25
② HYDRAULIC SYSTEM
Optimized matching hydraulic system, high working efficiency; equipped with special hydraulic joint, high reliability, low oil leakage rate.
③ DRIVE SYSTEM
The YQX30A (JDS30Ⅱ) gearbox of China first-class manufacturers has low failure rate,high transmission efficiency and good maintenance.
④ ELECTRICAL SYSTEM
LCD instrument, integral control box, waterproof sealing plug-in structure, to ensure the safety and reliability of the whole electrical system.
⑤ CAB & CONSOLE
The cab space is compact, equipped with high-quality seats, to give you a comfortable driving experience.
⑥ FUEL CONSUMPTION AND GREEN ENVIONRMENTAL PROTECTION
PERFORMANCE
High vehicle work efficiency, low fuel consumption, energy saving and environmental protection.
⑦ MAINTENANCE CONVENIENCE
Special maintenance space is reserved for the car body to make the follow-up maintenance more convenient.
CHART CAPACITY
SPECIFICATION
| STANDARD DIMENSIONS | |||||||
| General | Model | SF20Y | SF25Y | SF30Y | SF35Y | unit | |
| Load capacity | 2000 | 2500 | 3000 | 3500 | Kg | ||
| load center | 500 | 500 | 500 | 500 | mm | ||
| Power type | Gasonline/Lpg | Gasonline/Lpg | Gasonline/Lpg | Gasonline/Lpg | |||
| Dimensions | Lift size | 3000 | 4500 | 3000 | 3000 | mm | |
| Fork size | 1070x122x40 | 1070x122x40 | 1070x122x45 | 1070x122x45 | mm | ||
| Mast tilt angle | /6/12 | /6/12 | /6/12 | /6/12 | ° | ||
| Front overhang | 485 | 485 | 495 | 495 | mm | ||
| Overall dimensions | Length(with/without fork) | 3600/2530 | 3660/2590 | 3829/2759 | 3879/2809 | mm | |
| Overall width | 1160 | 1160 | 1226 | 1226 | mm | ||
| Overall height fork lowered | 2070 | 2070 | 2070 | 2070 | mm | ||
| Overhead guard height | 2070 | 2070 | 2070 | 2070 | mm | ||
| Turning radius | 2170 | 2320 | 2400 | 2450 | mm | ||
| Performance | Travel speed(full load/no load) | 20/21 | 20/21 | 20/21 | 20/21 | Km/h | |
| Lift speed with load | 500 | 500 | 520 | 520 | mm/sec | ||
| Max.gradeability | 20 | 20 | 20 | 20 | % | ||
| Self weight | 3450 | 3830 | 4300 | 4560 | Kg | ||
| Wheel&tires | Tires | Front | 7.00-12-12PR | 7.00-12-12PR | 28.9×9-15-15PR | 28.9×9-15-15PR | |
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
| Tread | Front | 970 | 970 | 1000 | 1000 | mm | |
| Rear | 970 | 970 | 980 | 980 | mm | ||
| Wheelbase | 1600 | 1600 | 1700 | 1700 | mm | ||
| Min.ground clearance(mast) | 85 | 85 | 110 | 110 | mm | ||
| Drive units&control | Engine | Model | NISSAN K21 | NISSAN K25 | |||
| Rated output | 31.2/2250 | 37.4/2300 | Kw/rpm | ||||
| Rated torque | 143.7/1600 | 176.5/1600 | N·m/rpm | ||||
| No.of cylinder | 4 | 4 | |||||
| Bore×stroke | 89×93 | 89×100 | mm | ||||
| Displacement | 2.065 | 2.488 | L | ||||
