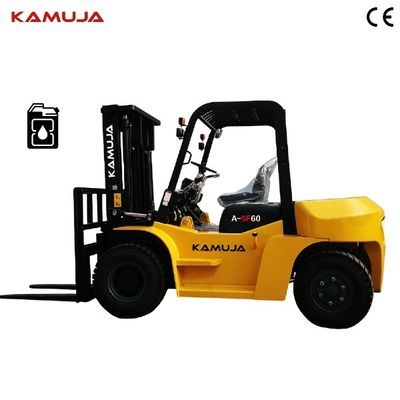

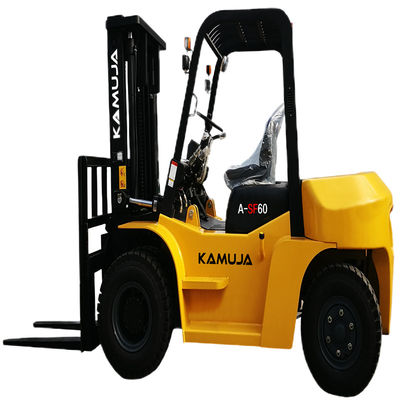

6000kg Diesel Lift Truck ISUZU 6BG1 6 Ton Forklift For Mast A-SF60
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Power Souce | Diesel Engine |
|---|---|---|---|
| Engine | ISUZU 6BG1 | Max. Lifting Height | Standard 3m , Options : Free II & III Mast- 3.5~8M In Different Costs |
| Fork Length | 1220 Mm Or 1070mm | Rated Loading Capacity | 6000kg |
| Warranty | 1 Year Or 2000 Working Hours | ||
| High Light | 6000kg Diesel Lift Truck,ISUZU 6BG1 6 Ton Forklift,6BG1 Diesel Lift Truck |
||
Product Description
6000kg/6.0 Ton Diesel ISUZU Engine With Options for Mast - A-SF60
INTRODUCTION
Inherited the high quality characteristics of KAMUJA series products.
The machine has the advantages of compact and reasonable structure, strong lifting capacity, low failure rate and good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment.
FEATURES
① ENGINE SYSTEM
The engine works stably and reliably, with low fuel consumption and strong power.
② HYDRAULIC SYSTEM
The dual pump design allows separate operation of the power steering and lifting units, and the hydraulic joint designed specifically for KAMUJA provides high reliability and effectively reduces the oil leakage rate.Full hydraulic load free induction steering system, easy to operate; It can ensure that the speed of goods is increased under idle conditions, so that the vehicle is more stable and reliable.
③ TRANSMISSION SYSTEM
Adopt the domestic first-class manufacturer's gearbox, transmission power is strong.
④ ELECTRICAL SYSTEM
Using the latest technology of wiring harness and waterproof plug-in, multi-channel fuse layout, safe and reliable.
⑤ CAB & CONSOLE
The cabin is spacious with premium seats for a comfortable driving experience, and the configuration's edge design can be seen from the driver's seat for optimal visibility when reversing to determine the distance.
⑥ DOOR FRAME TYPE IS AVAILABLE
Wide field of view/Level 2 Full freedom/Level 3 Full freedom
⑦ACCESSORIES ARE OPTIONGAL FOR THE JOB
Side shifter/pitch fork/roll clip/soft clip, etc
⑧APPLICABLE CONDITIONS/ENVIRONMENT
Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment
⑨FUEL CONSUMPTION/GREEN ENVIRONMENTAL PERFORMANCE INTRODUCTION
The vehicle has been optimized to the maximum extent, improving the operation efficiency, effectively reducing fuel consumption, energy saving and environmental protection.
⑩REPAIR AND EASE REPAIR
Special maintenance space is reserved for the car body, making subsequent maintenance more convenient. KAMUJA's perfect service network, timely and thoughtful service, is your peace of mind to use the equipment intimate guarantee
OVERALL
CAPACITY CHART
SPECIFICATIONS
| General | Model | Unit | A-SF60 | ||
| Load capacity | kg | 6000 | |||
| Load center | m m | 500 | |||
| Power type | Diesel | ||||
| Dimensions | Lift height | H | m m | 3000 | |
| Free lifting height | H3 | m m | 200 | ||
| Fork Distance(Out side | m m | 300/1756 | |||
| Mast tilt angle | a/β | deg | 6/12 | ||
| Fort overhang | K | m m | 615 | ||
| Overall dimensions | Length to face of fork L1 | m m | 4770 | ||
| Overall width | m m | 1995 | |||
| Overallheight forklowered H1 | m m | 2500 | |||
| Overallheightforkraised H2 | m m | 4380 | |||
| Overall guard height H4 | m m | 2460 | |||
| Turning radius | m m | 3320 | |||
| Min.right angle aisle width | m m | 3000 | |||
| Performance | Travelspeed (Full/Noload) | Walking speed | km/h | 26/28 | |
| Lifting speed | km/h | 40/430 | |||
| Max.gradeability(Full/No load) | % | 20/15 | |||
| Self weight | kg | 8640 | |||
| Chassis | Tires |
Front | 8.25-15-14PR | ||
| Rear | 8.25-15-14PR | ||||
| Tire diatance | Front | m m | 1470 | ||
| Rear | m m | 1700 | |||
| Wheelbase | m m | 2250 | |||
| Ground clearance | Rack | m m | 200 | ||
| Drive units&control | Engine | Model | ISUZU6BG1 | ||
| Rated output | km/rpm | 82.4/2000 | |||
| Rated torque | N.m/rpm | 416.8/1500 | |||
| No.of cylinder | 6 | ||||
| Borexstroke | m m | 105×125 | |||
| Displacement | L | 5.785 | |||
| Torque Converter of transmission box |
Type | Hydraulic | |||
| Shift | Front and back | 2/2 | |||
| Working pressure | Mpa | 20 | |||
