4000kg Derrick Tower Crane 18.6m Radium Derricks Construction

Place of Origin	China
Brand Name	HDC
Certification	/
Model Number	HDC50(1830)-4t
Minimum Order Quantity	1 unit
Price	TBD(USD)
Packaging Details	export package
Delivery Time	22 work days
Payment Terms	T/T
Supply Ability	No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model	HDC50(1830)-4t	Hoisting Speed	0-9 M/min
Max. Radium Load	18.6 Meters	Power	19kW
Tip Load	3.0 T/18.6m	Max Lifting Load	4t
Highlight	4000kg Derrick Tower Crane , 18.6m Radium Derricks Construction , Derrick Tower Crane 18.6m Radium

Leave a Message

Product Description

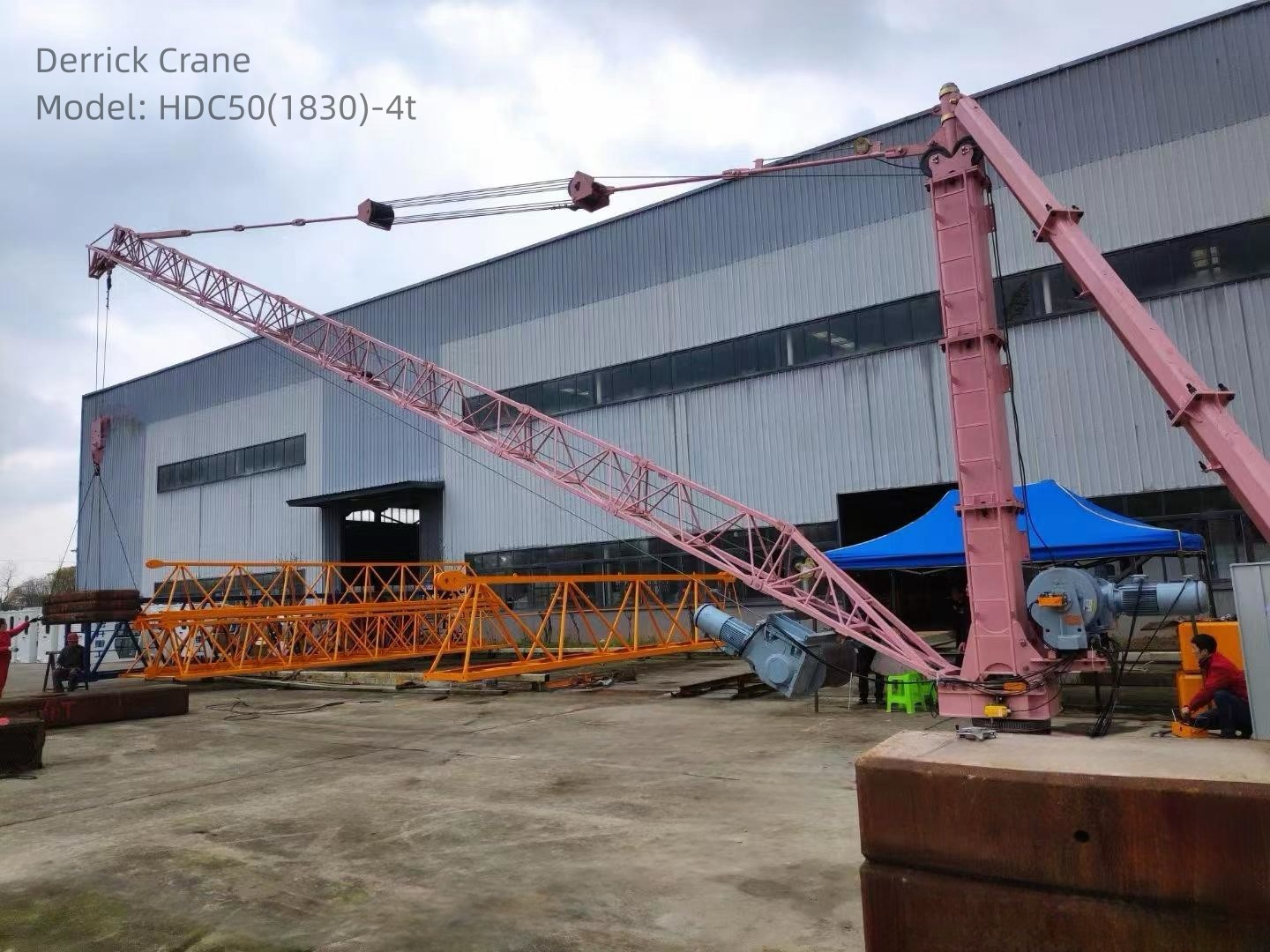

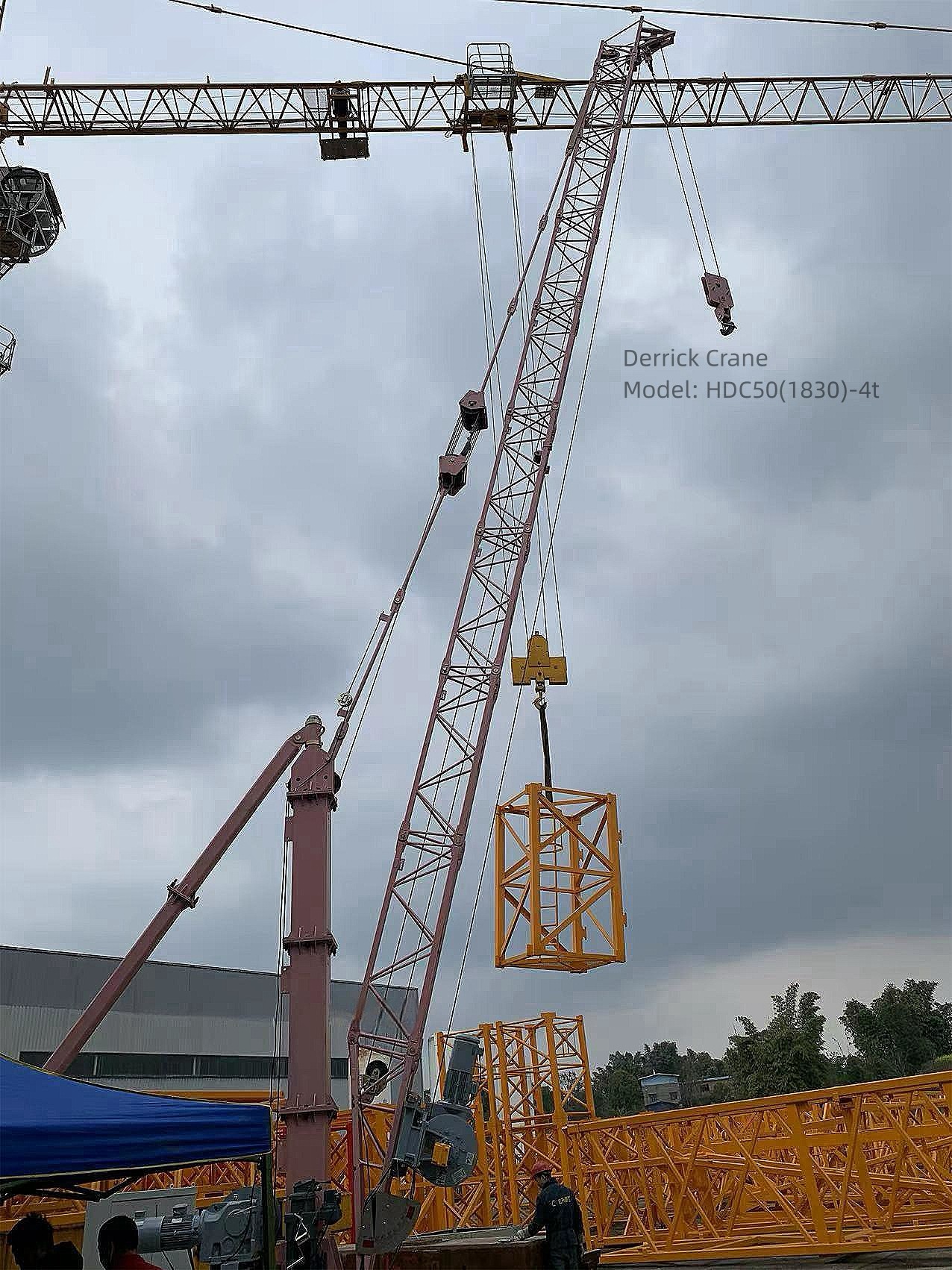

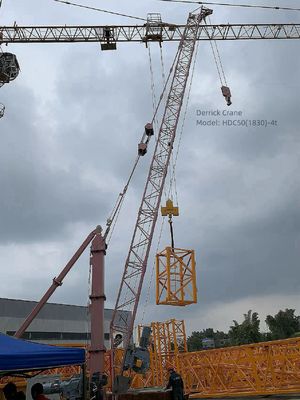

Derrick Tower Crane HDC50(1830)-4t Max. Capacity Load 4 ton

TOWER CRANE --- Derrick Crane

MODEL: HDC50(1830)-4t

4000kg Derrick Tower Crane 18.6m Radium Derricks Construction 0

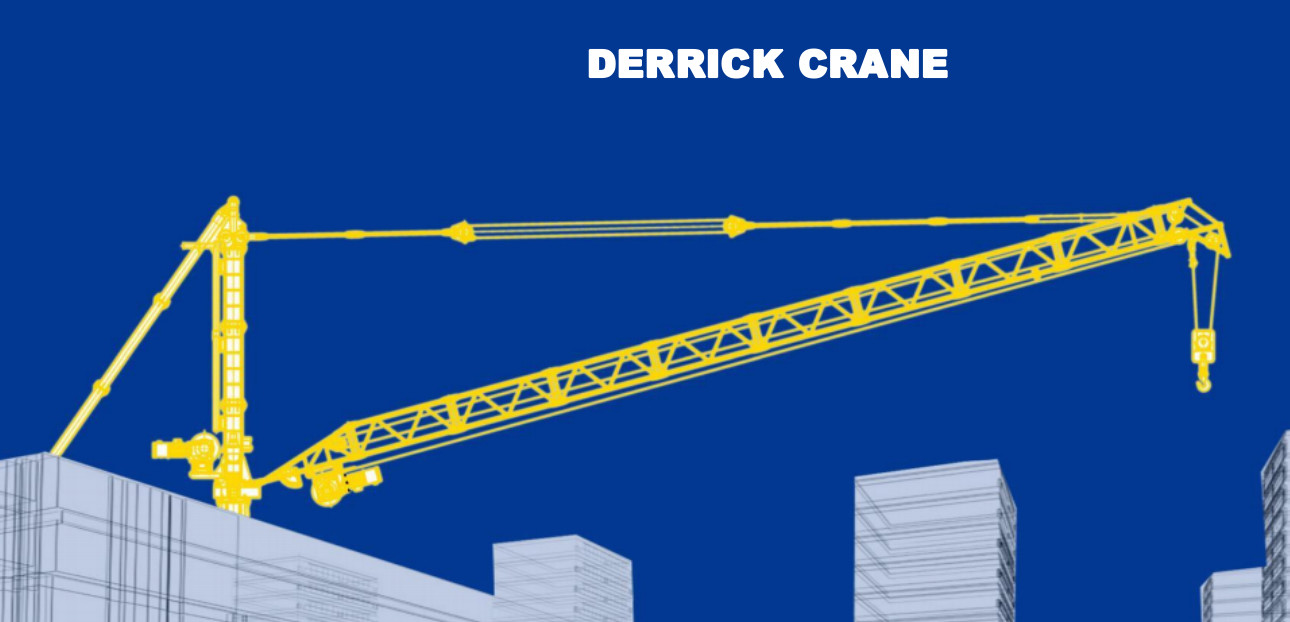

Layout Diagram of the Complete Machine

4000kg Derrick Tower Crane 18.6m Radium Derricks Construction 1

Load Diagrams:

Radium (m)	5.5	6	9	10	12	14.2	15	18.6
Angle(°)	75	72.2	61.9	58.3	50.5	40.8	36.8	15
Height (m)	15.8	15.5	14.3	13.6	12.0	9.8	8.7	3.5
Load (t)/a2	4.0						3.74	3.0
Note:H——Height between the hook to the grouand

Main Tecnical Parameters:

Name	Speed(m/min)		Load( t)	Rope Capacity	Power( kW)
Lifting Mechanism	a=2	0～9	4	430 6layers	7.5
Trolleting Mechanism	≤1.8min				7.5
Slewing Mechanism	0.6r/min				4
Power	380V/50Hz		Total(kW)		19

Download the brochure:

Express.Brochure.Derrick Crane 4,10,16t.pdf
