180m3/H Used Truck Concrete Pump 46.4m Concrete Pump Second Hand
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max. Theor. Output | 180m3/h | Rated Working Pressure | 42MPa |
|---|---|---|---|
| Hopper Capacity | 600L | Concrete Cylinder Dia.×stroke | Φ260×2100 |
| Max. Aggregate Dimension | 40mm | Placing Depth | 46.4m |
| Outriggers Span (front×rear×side) | 12250×12820×11660mm | Chassis Model | ZZ5446V516HE1 |
| Emission | CN III | Engine Power | 324/1900 KW/(r/min) |
| Status | READY FOR WORK | Model | ZZ5446V516HE1 63X-7RZ |
| High Light | 180m3/h used truck concrete pump,used truck concrete pump 46.4m,46.4m concrete pump second hand |
||
Product Description
PART I. INTRODUCTION OF KAMUJA
USTED TRUCK-MOUNTED CONCRETE PUMP Vertical Reach 63M & REFURBISH SERIVE 63X-7RZ
Hunan Kamuja Machinery & Equipment Co.,Ltd is founded by a group of passionate professionals who have an average of more than 10 years working experience in the construction machinery industry and established close relationship with numerous clients from all over the world.
We are a compnay that is committed to inspiring to create value through our products and service to customer and providing thorough solutions for both brandnew and used machines in the Construction, also Industrial logistics sectors.
We offer comprehensive service for the used construction machineries, such as Pre- Order Inspection, all kinds of reburbishing services that meet different customer’s requirements, Pre-Delivery Inspection, Spare Parts, On-line Traning & Instruction
Service, Optional On-site Service.
With the commitment to provide quality and reliable new machines, KAMUJA carefully select the vendors and work closely with those who have international background and reputation. KAMUJA brand new forklift and generators are flexible for customization according to our partners and customers requests.
We are an authorized ventor of one of the leading Chinese tower crane manufacturers who started the first tower crane production since 1958, and enjoyed worldwide reputation. Together with our advanced factory, KAMUJA team will provide strong supports to the customers to achieve safe and
cost-effective construction for their projects.
Qualification
PART II. CONCRETE MACHINERY EXPERTISE
★ KAMUJA has a specialized team and warehouse to refurbish China Made Concrete Machinery, among the
most famous brand, Zoomlion and Sany. We normally have in stock under own property various models with different year of manufacturing, ready for sale as origin all statues or furnished.
★ Most Commercial Models and Configurations:
- 37m/38m Zoomlion w/. ISUZU, Sinotruk Chassis, EURO III
- 40m Zoomlion w/. FAW Chasis, EURO V
- 43m/47m Zoomlion w/. FAW, ISUZU, Mercedez Benz Chasis, EURO III, V.
- 49m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO V
- 52m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V
- 56m Zoomlion w/. Scania, Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V
- 62m/63m Zoomlion and Sany w/. Scania, Mercedez Benz chassis, EURO III,IV
★Year of manufacturer: 2011-2021
★ Refurbish Class: Premium, Medium, Standard.
PART IV. SPECIFICATIONS
| Model | ZOOMLION 63X-7RZ | ||
| Pumping system | Max. Theor. output | m3/h | 180 |
| Max. Theor. concrete output Pressure | MPa | 11.3 | |
| Rated working pressure | MPa | 42 | |
| Pumping frequency | min-1 | 26 | |
| Hopper capacity | L | 600 | |
| Filling height | 1540 | ||
| Hydraulic system type | Closed loop | ||
| Distribution valve | S valve | ||
| Concrete cylinder dia.×stroke | mm | Φ260mm×2100mm | |
| Hydraulic oil cooling | Air cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | 63X-7RZ | |
| Placing height | m | 62.1 | |
| Horizontal distance | m | 56.9 | |
| Placing depth | m | 46.4 | |
| Slewing angle | ±270° | ||
| Boom number | 7 | ||
| The length of boom section | mm | 11590/8230/8220/9330/9260/4970/6500 | |
| Sections folding angle | 90°/180°/180°/180°/180°/235°/90°/120° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 15830 | |
| Outriggers span (front×rear×side) | mm | 12250×12820×11660 | |
| Chassis and the whole machine | Chassis model | ZZ5446V516HE1 | |
| Wheelbase | mm | 1950+4500+1400 | |
| Engine power | kW/(r/min) | 324/1900 | |
| Engine moment | N.m/(r/min) | 1900/1000-1400 | |
| Tail gas exhaust standard | CN Ⅲ | ||
| Others | Lubrication mode | Automatic lubrication | |
| Oil tank volume | L | 800 | |
| Control mode | Manual+remote control | ||
| Maximum water pressure | MPa | 7 | |
| Water tank volume | L | 400 | |
| Pipe cleaning mode | Water cleaning/dry cleaning | ||
Working scope fig.

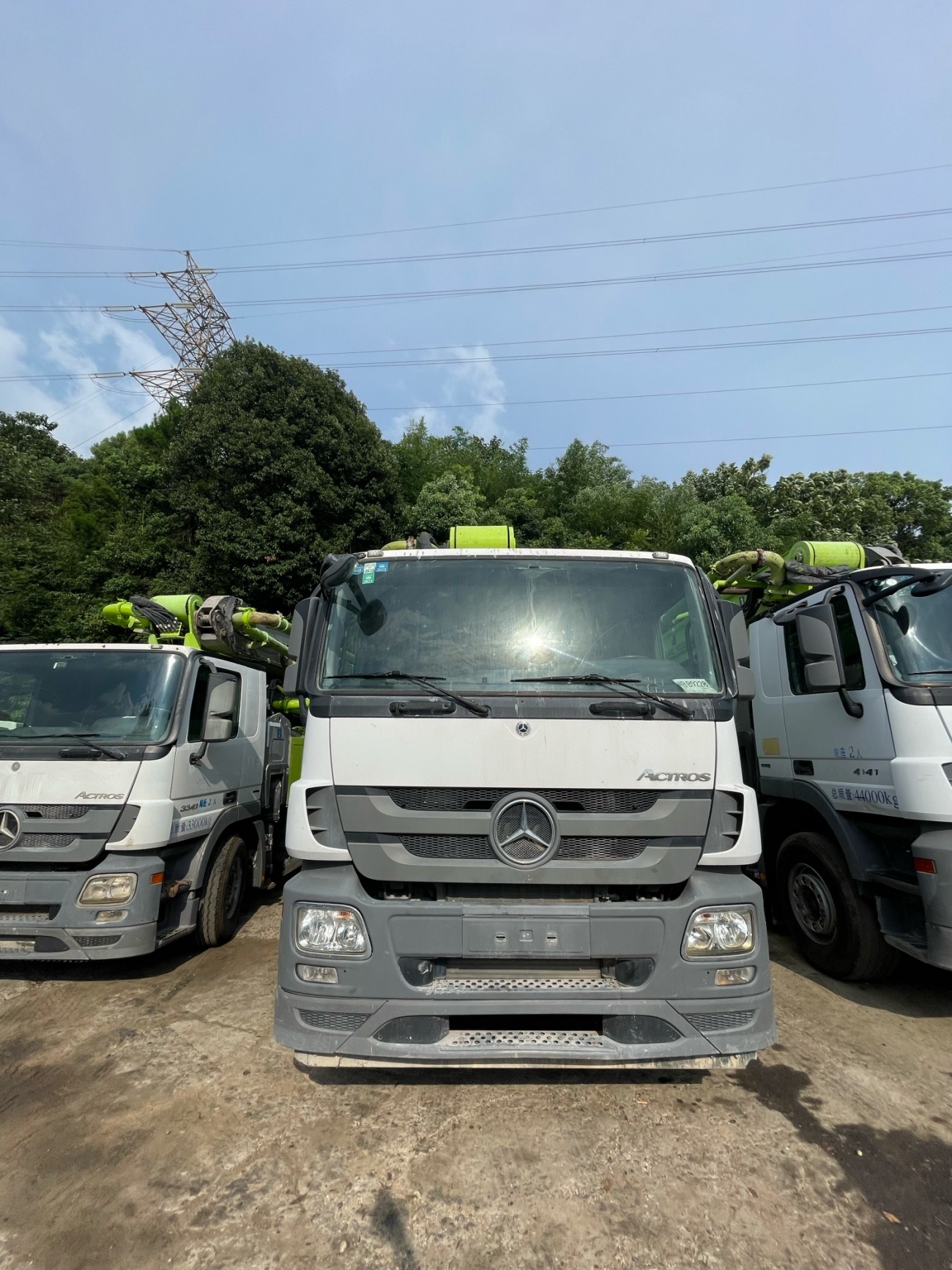

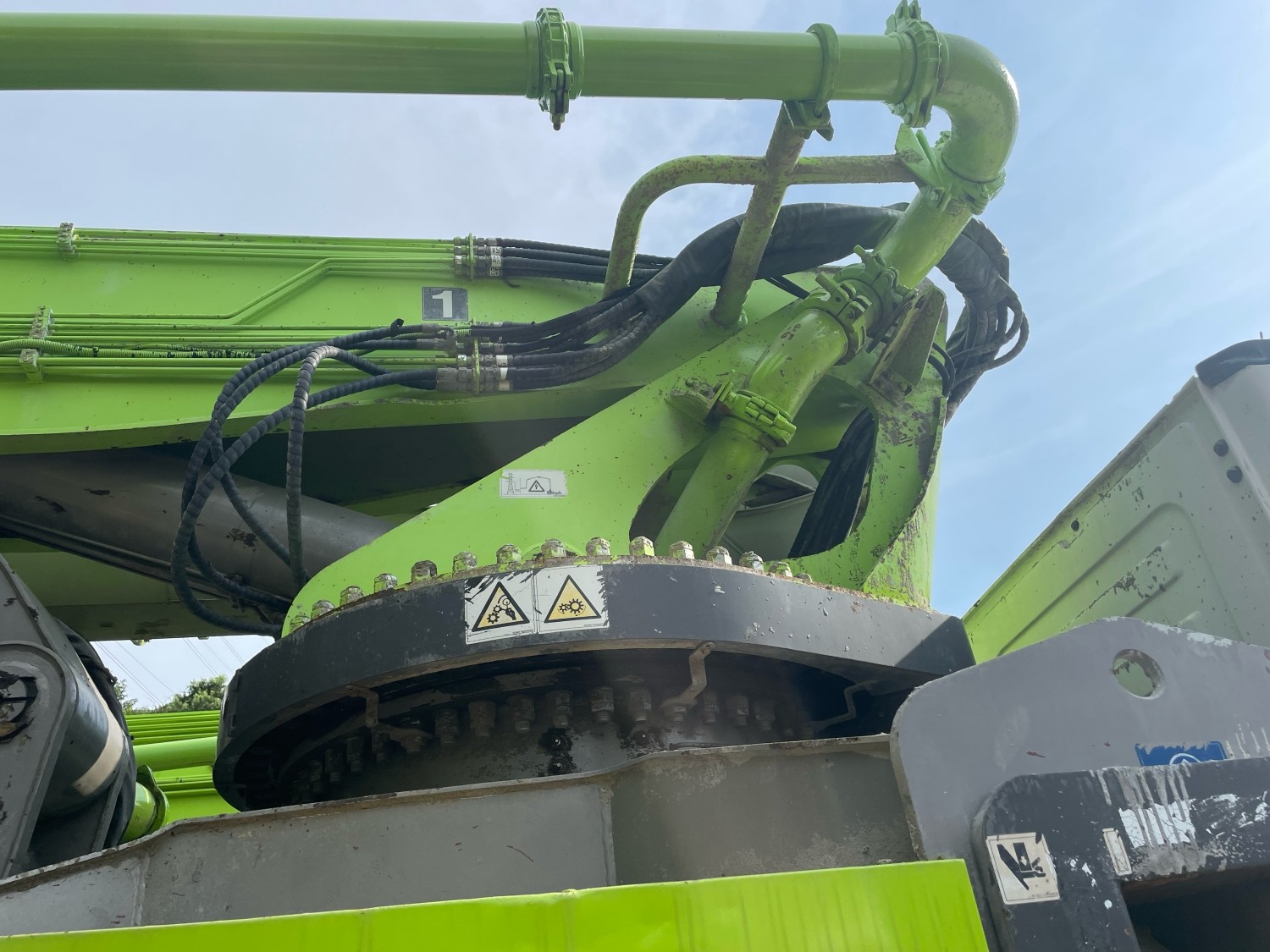

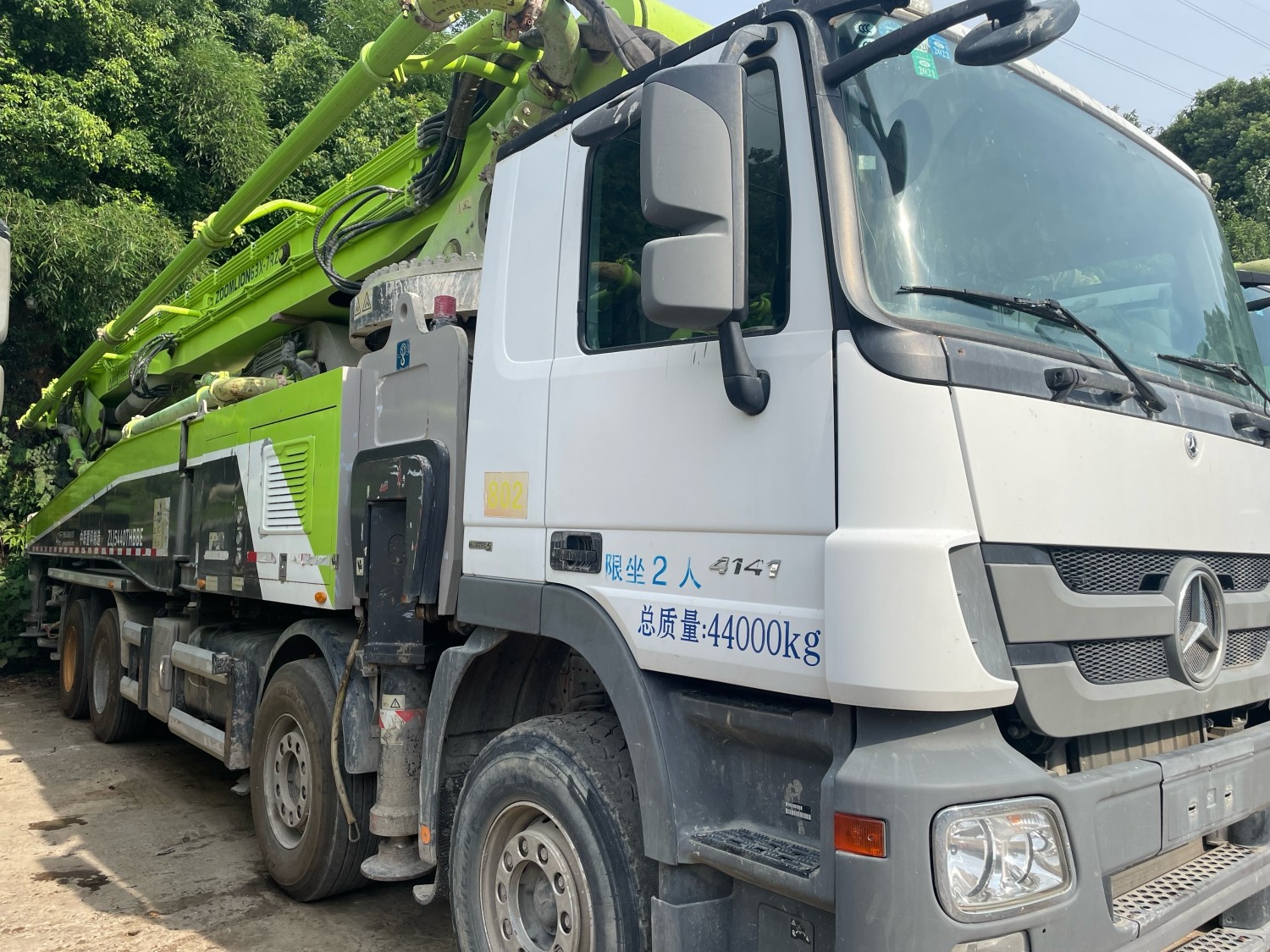

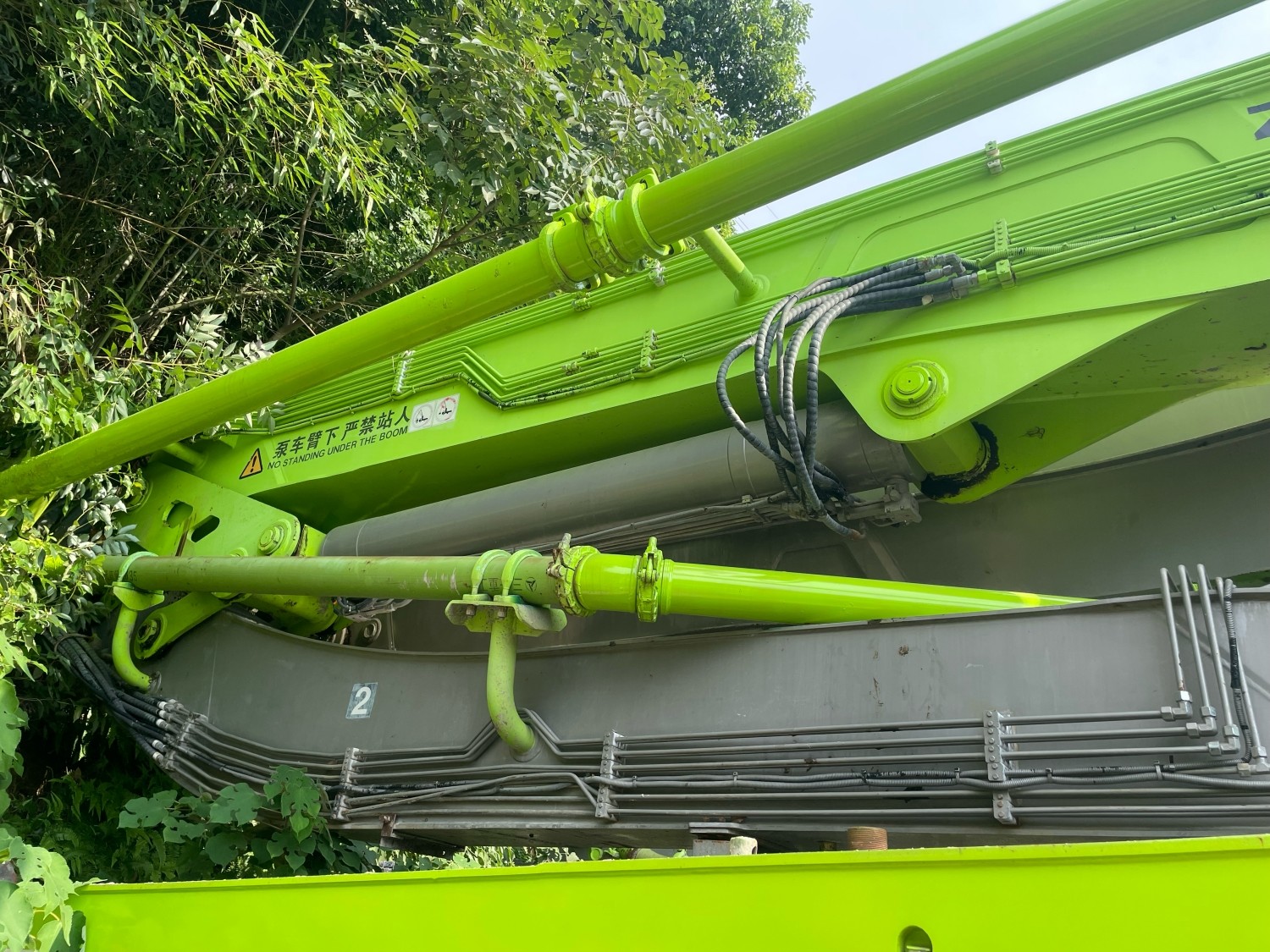

PART V. REAL PHOTOS
