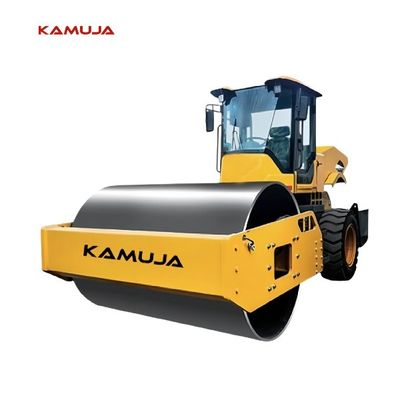

12 Ton Road Roller KAMUJA Single Drum Ride On Roller

Place of Origin CHINA
Brand Name KAMUJA
Certification CNAS, IAF
Model Number YZD-12.0
Minimum Order Quantity 1 UNIT
Price TBD(USD)
Packaging Details export package
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Static Line Load 385 N/cm Drive System AMERICAN DANFOSS
Drum Width 2,130 Mm Exciting Force 285/150 Kn
Nominal Amplitude 1.80/0.44 Mm Power 93kw/2400rpm
The Vibration Frequency 70KN Type Walking Single Drum Roller
High Light

12 Ton Road Roller

,

Single Drum Ride On Roller

,

KAMUJA Road Roller

Leave a Message
Product Description

KAMUJA Single Drum Ride-On Roller,Weight 12t - YZD-12.0



INTRODUCTION



The 12-ton road roller is mainly used for the foundation compaction of auxiliary roads,pipeline earthwork backfill, underground parking lots, rural roads, and gravel. Its front steel wheel and rear rubber wheel.
The structure is characterized by strong climbing ability and strong power. It can realize self-transfer within a range of 5 kilometers, saving users freight costs.

FEATURES


① Hydraulic vibration and hydraulic steering, simple and light operation; flexible and stable performance



② The equipment is equipped with a wheel-side reduction axle and a domestic high-power, high-efficiency, high-power diesel engine.



③ Use brand-name hydraulic vibration systems and electronic vibration valves, with low failure rate and reliable quality.



④ The whole machine has beautiful and elegant design, high configuration, reasonable structure, low maintenance cost, excellent performance and high cost performance.

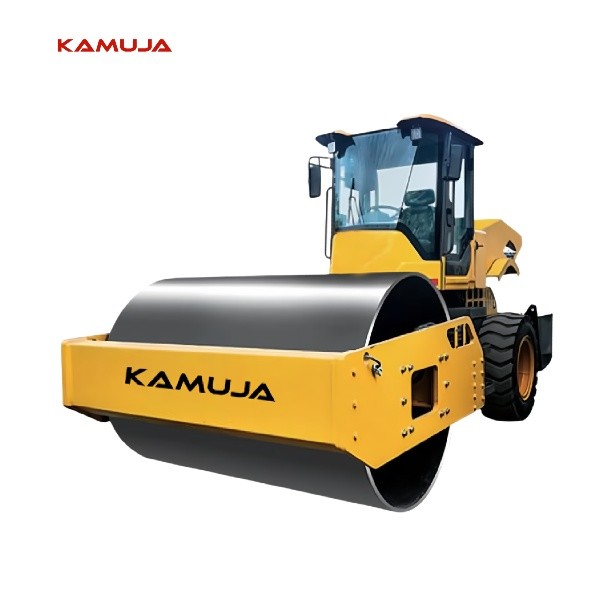

12 Ton Road Roller KAMUJA Single Drum Ride On Roller 0

HYDRAULIC PITCH CONVERTER

It adopts hydraulic torque converter transmission, wheel speed reduction and rear rubber wheel drive.

Two-wheel air brakes, the walking system can be continuously variable in both directions in two gears.





12 Ton Road Roller KAMUJA Single Drum Ride On Roller 1    12 Ton Road Roller KAMUJA Single Drum Ride On Roller 2



MOTOR CUMMNINS TIER II

With strong power and reserve power

High-efficiency features



12 Ton Road Roller KAMUJA Single Drum Ride On Roller 3



ARTICULATED

The whole machine is based on the rotary joint structure of a heavy-duty road roller.

The design complies with the three-level shock absorption principle, and the cab is spacious and bright.



SPECIFICATION

Compaction Static Line Load N/cm 385
Nominal Amplitude mm 1.80/0.44
Vibration Frequency Hz 70
Excitation force Kn 285/150
Engine Model 48TA3.9-C25II
Type Diesel Engine
Power Kw/rpm 93/2400
Fuel tank capacity L 200
Lubrication oil capacity L 18
Fuel Consumption See the Diagram
Walking Speed Km/h 0-15
Turning Radius mm 3100
Theoretical Climbing ability % 55
Overall Dimension Drum wheel width mm 2130
Drum wheel diameter mm 1400
Wheelbase mm 3160
Total Length mm 5610
Total Width mm 2300
Total Height mm 2700
Packing Dimension mm 5800*2400*2810
Total Weight t 12
