10 Ton Derrick Tower Crane HDC63(3023)-10T Derrick Boom Crane
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | HDC63((3023)-10T | Hoisting Speed | 0-90m/min |
|---|---|---|---|
| Max. Radium | 30m | Power | 78kW |
| Tip Load | 2.3t | Max. Lifting Load | 10t |
| High Light | 10 Ton Derrick Tower Crane,10T Derrick Boom Crane,Derrick Tower Crane 10T |
||
Product Description

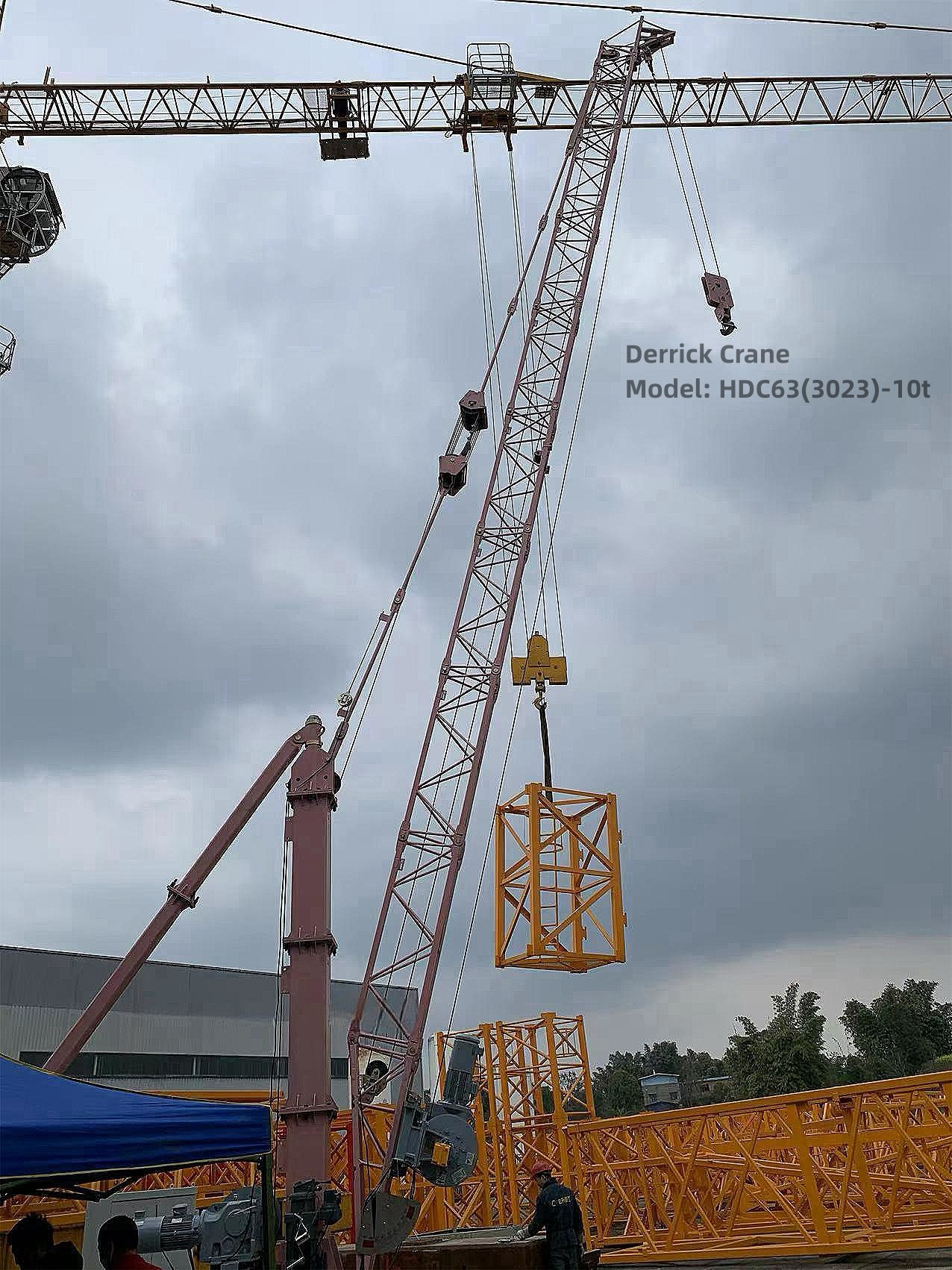

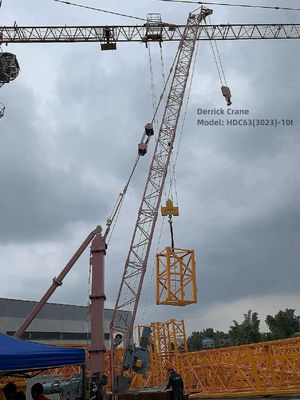

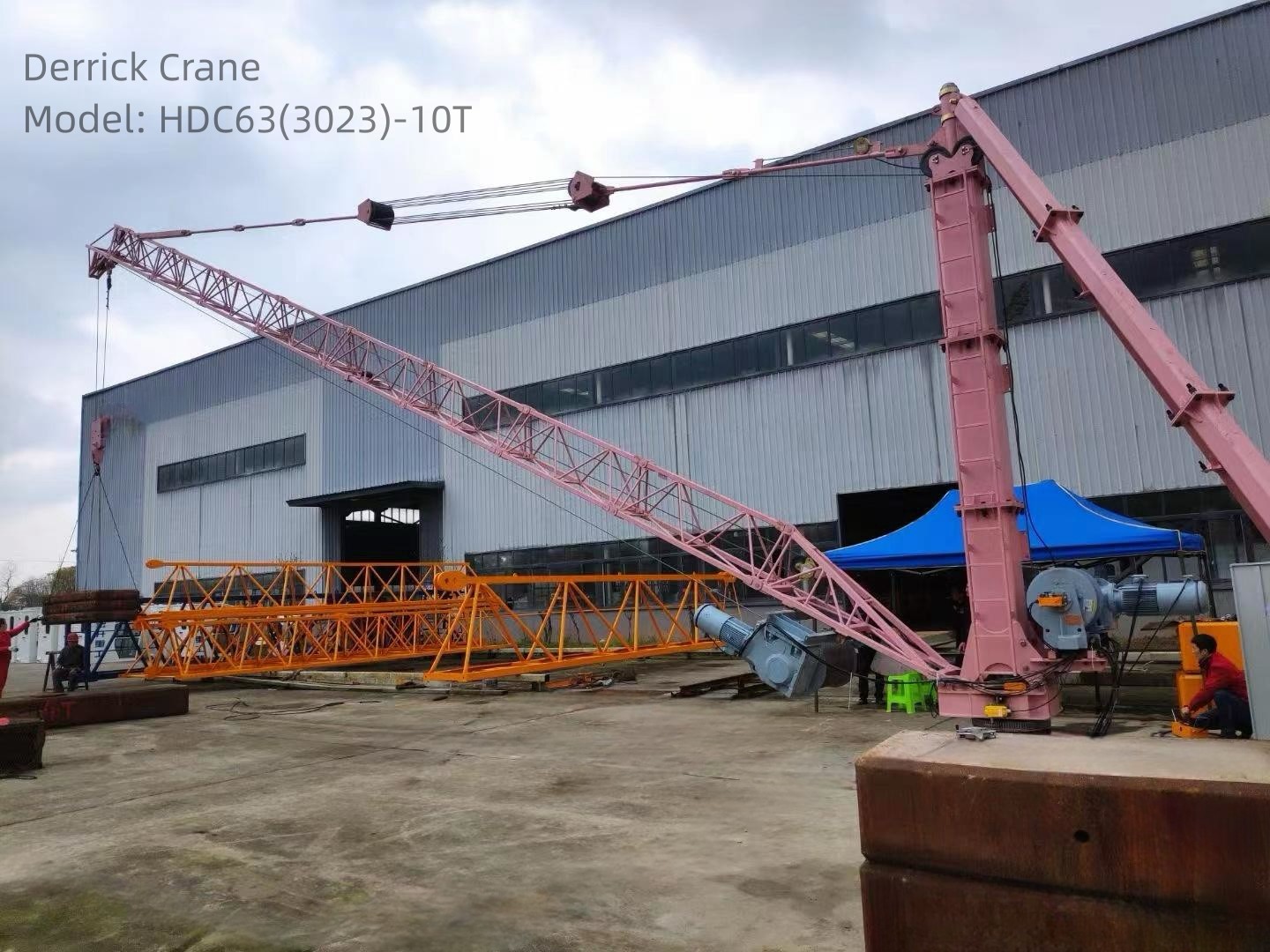

Derrick Tower Crane HDC63(3023)-10T Max. Capacity Load 10 ton
Tower Crane---Derrick Crane
Model: HDC63(3023)-10T
Layout Diagram of the Complete Machine:
Load Diagram:
| Radium (m) | 4.5～10.65 | 12 | 15 | 20 | 23 | 25 | 28 | 30 | |
|
Load(t) |
a4 | 10 | 8.38 | 6.26 | 4.13 | 3.3 | 2.85 | 2.31 | 2 |
| a2 | 5 | 4.43 | 3.6 | 3.15 | 2.61 | 2.3 | |||
| Note:H——Height between the hook to the grouand | |||||||||
Mechanisms:
| Name | Speed(m/min) | Load( t) |
Rope capacity |
Power( kW) |
| Lifting Mechanism | 0～90 | 10 | 600 | 45 |
| Trolleting Mechanism | ≤3min | 24 | ||
| Slewing Mechanism | 0～0.7r/min | 7.5 | ||
| Power | 380V/50Hz | Total(kW) | 78 | |
Donwload the brochure:
