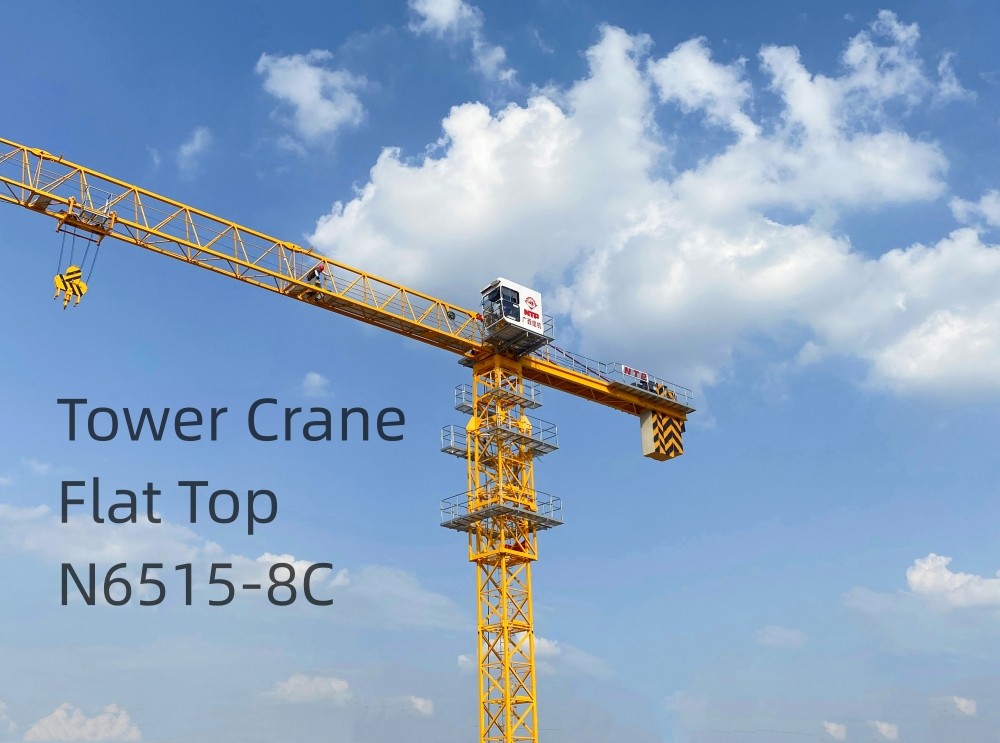

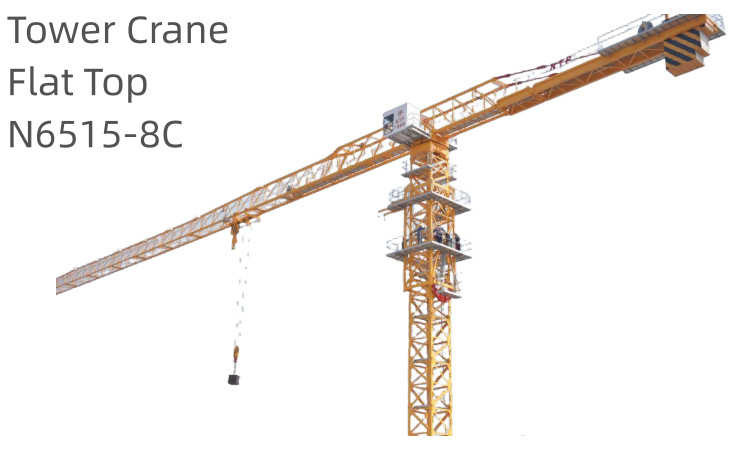

N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction

Place of Origin China
Brand Name NTP
Certification CE
Model Number N6515-8C
Minimum Order Quantity 1 UNIT
Price TBD(USD)
Packaging Details Export Package
Delivery Time 22 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crane Feature Flat-top Tower Crane Hoisting Speed 0-98m/min
Jib Length 65m Free Standing Height 46.5m
Mast Secton Dimension 1.8*1.8*2.8m Fundation Type Outrigger/chassis
Rated Lifting Moment 1600kN.m Tip Load 1.5
Max Lifting Load 8t
High Light

8000kg Flat Top Tower Crane

,

Tower Crane Used In Building Construction

,

8000kg Crane Used In Building Construction

Leave a Message
Product Description

Tower Crane Flat-Top Model: N6515-8C, Max. Capacity Load: 8t



FACTORY INTRODUCTION



N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 0N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 1

Founded in 1958, the manufacture is an industry-leading enterprise integrating the R&D, manufacturing, installation, transformation and maintenance of construction hoisting machinery, and is also one of the first four manufacturers who obtained the manutacture license of construction machinery in China.

Two production bases in Bali and Wuming of Nanning, covering an area of 360,000 square meters and equipped with more than 1,200 sets of advanced processing equipment, with an annual output of over RMB 3 billion.





PRODUCT INTRODUCTION



Internal climbing type tower crane:

The tower crane is Installed inside a building, and cumbs upward with the help o the building structure, without any independent foundation. additional attachment devices or standard sections. Such a tower crane features a low cost, a wider construction coverage area and higher work efficiency. Furthermore, such a tower crane can be transformed into an attached tower crane at a low cost.

N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 2

Inner cage type tower crane:

The Jacking center of gravity rests on the center of the tower body, making the installation, removal, and lifting of the tower crane more stable, and safer. The standard sections of the tower body are of a sheet structure which occupies less space during transportation and storage, thus lowering the cost or transportation and storage. It can be accessed in any angle within the range of 360° .



Outer cage type tower crane:

The standard sections of the tower body can be installed and removed as a whole, making such a tower crane easy for connection, safe and relablein operation. and quick in lifting up and down.





FEATURES

N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 3

System integration, intelligent lifting:

Highly-integrated intelligent electrical monitoring. smooth lifting. Varying load and speed, accurate positioning, full coverage of real-time monitoring. risk identification without blind corner.



N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 4

Triple protection. safe and reliable:

Anti-slip hook, anti-overload, anti-punching, anti-tower-falling, anti-rope-breaking, anti-collision, anti hanging. anti-swing and anti-twist safety functions. Providing triple protections by means or mechanical. electronic and intelligent technologies.



N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 5

Ouick assembly design, convenient assembly and disassembly:

Quick assemply platform, combied tie rod, telescopic wall attachment. error-proof aviation plug, quick assembly and disassembly, flexible and efficent.



N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 6N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 7

High Efficiency, worry free service:

Open type tower body, easy maintenance, long service life; sheet-like standard mast, stacked storage, low transport cost; sate operation, worry Tree service, fine management, economic operation the through the whole lite cycle under the support from "Construction Machinery Smart Housekeeper”



First-class configuration, excellent performance:

Three maior transmission mechanisms, hydraulic jacking device, intelligent electrical system,intelligent monitoring svstem and other components all suppled by First-class manufacturers: high rigidity. good stability and high wind resistance of the structure, ensuring more rellable operation of the machine.





N6515-8C Flat-top Tower Cranes



N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 8

N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 9N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 10

Sectional dimensions of tower
section(m×m×m)
Reinforced
section
Standard section FSH(m) Max. Height
1.8*1.8 *2.8 4 9 46.5 220.1



Load Diagrams

N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 11



Main Technical Parameters

N6515-8C 8000kg Flat Top Tower Crane Used In Building Construction 12

The technical information may vary by the update policy, the changes will be without prior notice.



Download Brochure:

Express.Brochure.N6515-8C.pdf
