16 Ton Derrick Tower Crane HDC125(4038)-16T Cranes And Derricks In Construction
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | HDC125(4038)-16t | Hoisting Speed | 0-90m/min |
|---|---|---|---|
| Max. Radium | 40m | Power | 114kW |
| Tip Load | 3.8t | Max. Lifting Load | 16t |
| High Light | 16 Ton Derrick Tower Crane,16T Cranes And Derricks In Construction,16T Derrick Tower Crane |
||
Product Description

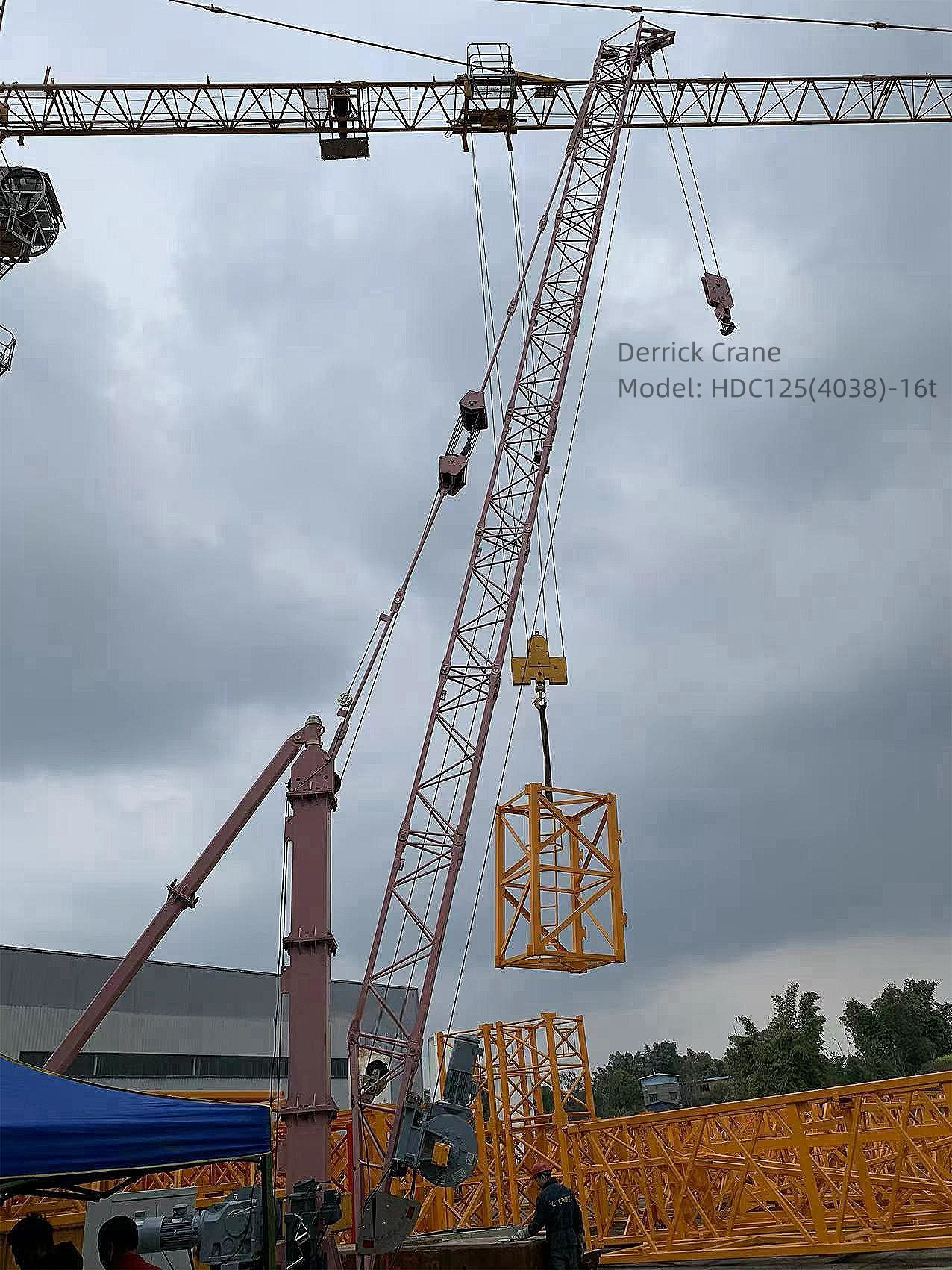

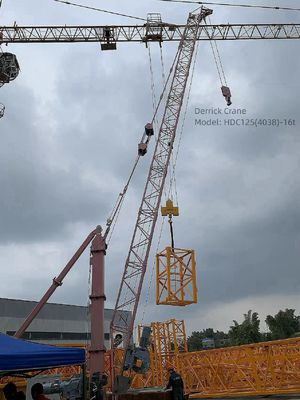

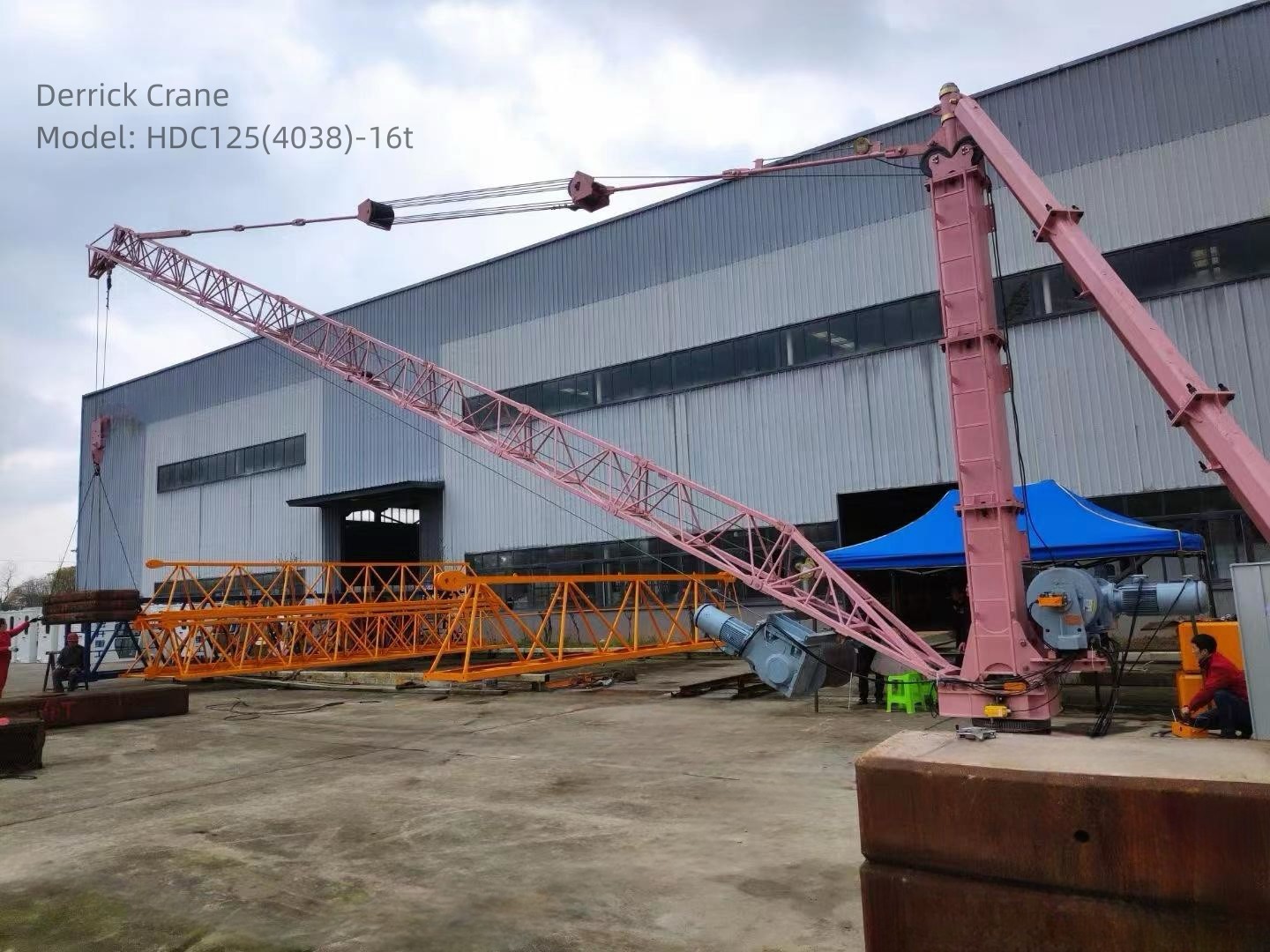

Derrick Tower Crane HDC125(4038)-16t Max. Capacity Load 16 ton
Tower Crane --- Derrick Crane
Model: HDC125(4038)-16t
Layout Diagram of the Complete Machine:
Load Diagram:
| Radium (m) | 7.3～14.26 | 15 | 18.04 | 20 | 25 | 30 | 35 | 40 | |
|
Load(t) |
a4 | 16 | 15.09 | 11.8 | 10.38 | 7.6 | 5.74 | 4.41 | 3.4 |
| a2 | 8 | 6.14 | 4.81 | 3.8 | |||||
| Note:H——Height between the hook to the grouand | |||||||||
Mechanisms:
| Description | Speed(m/min) | Load( t) |
Rope capacity |
Power( kW) |
| Lifting Mechanism | 0～90 | 16 | 650 | 75 |
| Trolleying Mechanism | ≤3min | 30 | ||
| Slewing Mechanism | 0～0.7r/min | 2×4.5 | ||
| Power | 380V/50Hz | Total(kW) | 114 | |
Download the brochure:
