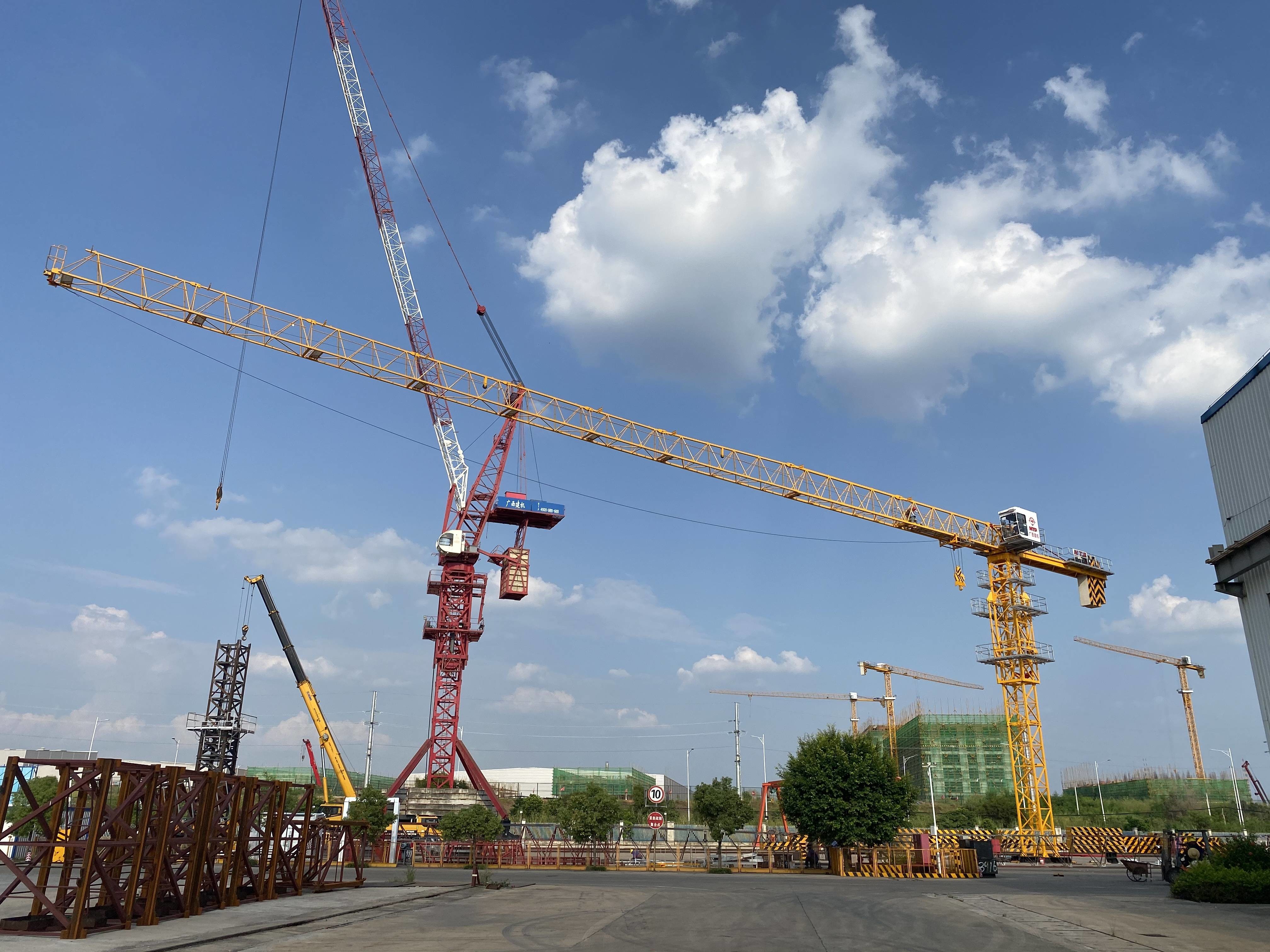

24 Ton Luffing Tower Crane 60m Radium Luffing Jib Tower Crane QTD400-24
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | QTD400-24 | Max. Radium | 60m |
|---|---|---|---|
| Maximum Hoisting Capacity | 24t | Tip Load | 5.0t |
| Mast Section | 2.0*2.0*3.0m) | Rated Hoisting Moment | 2600kN·m |
| High Light | luffing tower crane 60m,24 ton luffing tower crane,60m radium luffing jib tower crane |
||
Product Description
Luffing Tower Crane QTD400-24 Max. Capacity Load 24 ton
FACTORY INTRODUCTION
The manufacture is founded in 1958, is an industry-leading enterprise integrating the R&D, manufacturing, installation, transformation and maintenance of construction hoisting machinery, and also one of the first four manufacturers in China to obtain the manufacture license o construction machinery.
Two production bases in south of China, covering an area of 360,000 square meters and equipped with more than 1,200 sets of advanced processing equipment, with an annual output of over RMB 3 billion.
TYPES
Outer cage type tower crane:
The standard sections ofthe tower body can be installed and removed as a whole, making such a tower crane easy to connection and rellable in operation, quick in lifting up and down.
Internal climbing type tower crane:
The tower crane is installed inside a building and climbs upward with the help ofthe building structure without any independent foundation, additional attachment devices or standard sections. Such a tower crane features a low cost, a wider construction coverage area and higher work efficiency Furthermore, can be transformed into an attached tower crane at a low cost.
QTD260-16 Luffing Tower Cranes
Drawing of Tower Crane Structure:
Tower:
|
Sectional dimensions of tower section(m×m×m) |
Reinforced section |
Standard section | FSH(m) | Max.Height |
| 2.0*2.0*3.0(outer cage) | 2 | 8 | 43.7 | 205.7 |
Load Diagrams
Main Technical Parameters
| Hoisting performance | Rated hoisting moment | 4000kN.m | |||
| Maximum hoisting capacity | 24 t | ||||
|
Mechanism performance |
2Fall | 4Fall | Motor | ||
| t | m/min | t | m/min | ||
| Lifting | 12 | 0~35 | 24 | 0~17.5 | 90Kw |
| 6 | 0~70 | 12 | 0~35 | ||
| Trolleying | 15°~85° 3.5 min | 90Kw | |||
| Slewing | 0~0.75r/min | 3*155N.m | |||
※ The technical information may vary by the update policy, the changes will be without prior notice.
