ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift

Place of Origin China
Brand Name KAMUJA
Certification CE
Model Number A-SF35
Minimum Order Quantity 1 UNIT
Price USD 11K-14K/ UNIT
Packaging Details 2 UNITS/20GP; 4-5 UNITS/40GP & 40 HQ
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Power Souce Diesel Engine Engine ISUZU C240
Max. Lifting Height Standard 3m , Options : Free II & III Mast- 3.5~8M In Different Costs Fork Length 1220 Mm Or 1070mm
Rated Loading Capacity 3500 Kg Warranty 1 Year Or 2000 Working Hours
High Light

ISUZU 3.5 Ton Diesel Forklift


3500kg Diesel Forklift


3500kg Diesel Powered Forklift

Leave a Message
Product Description

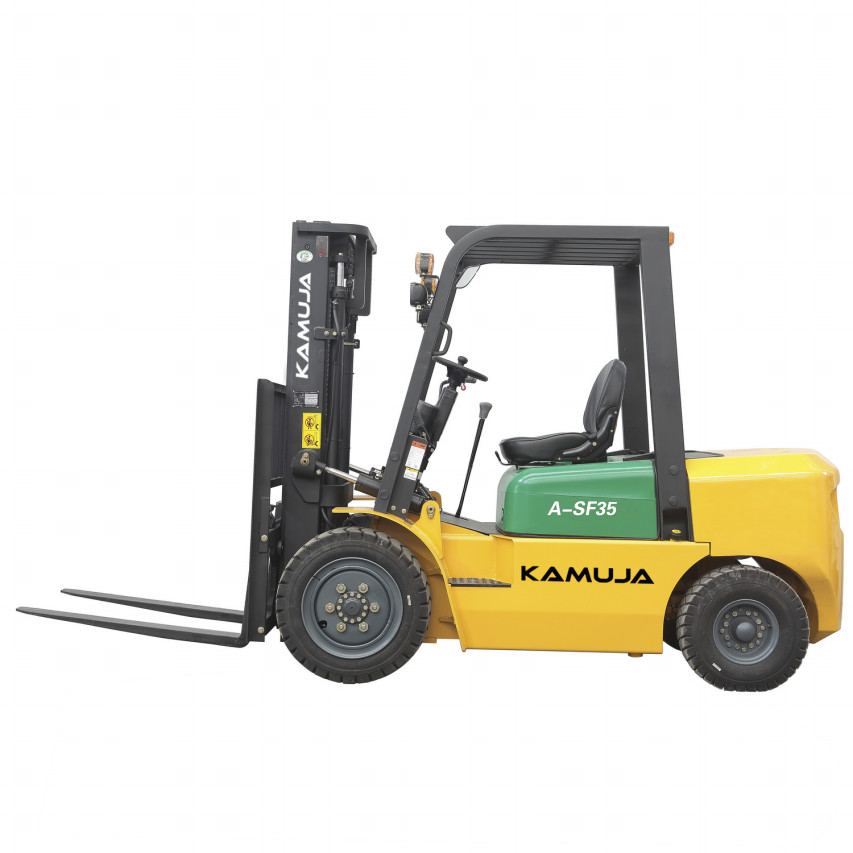

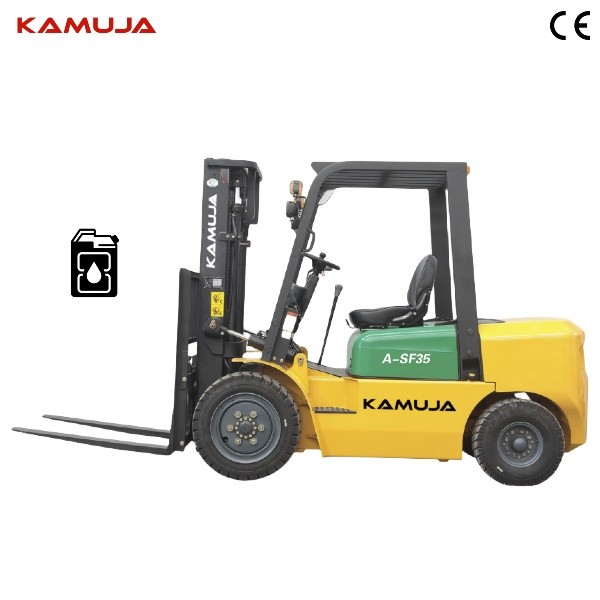

3500kg/3.5 Ton Diesel , ISUZU Engine With Options for Mast - A-SF35


Inherited the KAMUJA series of products have always high quality characteristics, the machine structure is compact and reasonable, lifting capacity is strong, low failure rate. Good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance efficient equipment.




Equipped with mature, reliable and powerful IZUSU diesel engine, which is powerful, energy-saving and environmentally friendly.

The gearbox, drive axle and steering axle are all made from well-known domestic and international manufacturers, with stable and reliable performance.


The mast is welded from high-quality high-strength rolled steel and is equipped with split large rollers, which has strong load-bearing capacity and long service life; the frame, the load-bearing components such as the cab and counterweight have all completed finite element analysis of stress and fatigue.

The structure is reasonable and the quality is stable.


High-quality hydraulic components produced by well-known domestic and foreign manufacturers, with reliable performance. It has the characteristics of long service life and low oil leakage rate; rational arrangement of soft and hard pipes ensures small pipeline pressure loss and high overall machine working efficiency.

It adopts intelligent electronic monitoring combination instrument with high reliability, and the electrical system adopts waterproof sealed plug-in structure, which is safe and reliable.

Combination lamps with high reliability and high sealing level provide more concentrated and clear brightness and longer lifespan.


The new structure large-capacity water tank, the heat dissipation channel improved by using advanced heat dissipation technology and the reasonably designed air guide cover ensure the whole machine has good heat dissipation performance, easy maintenance and long service life.

  ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift 0

                                                                                                   Copper radiator


The entire vehicle adopts advanced ergonomic design and is equipped with multi-level shock absorption to provide a comfortable operating environment; it is equipped with a fully hydraulic system with low input torque.

Steering gear, easy steering; integrated iron hood, good heat and sound insulation.

   ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift 1 ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift 2 ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift 3

                                          Luxury Seat & Belt         Easy to open the engine hood                         Self made first class torque converter



    ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift 4



   ISUZU 3.5 Ton Diesel Forklift 3500kg Diesel Powered Forklift 5




General Model A-SF35
Load capacity 3500 kg
Load center 500 m m
Power type Diesel
Dimensions Lift height H 3000 m m
Free litheight H3 100 m m
Fork size 1070×125×45

m m
Mast tilt angle a/β 6/12 deg
Fort overhang K 495 m m
Overall dimensions Length to face of fork L1 4065 m m
Overall width 1225 m m
Overall height fork lowered H₁ 2060 m m
Overall height fork raised H2 4265 m m
Overall guard height H4 2165 m m
Tuming radius 2550 m m
Performance Travel speed (Full/No

Hydraulic 19/20 km/h
Mechanical   8.8/8.8 km/h
ll 20/20 km/h
Lift speed with speed 480 mm/sec
Max.gradeability 20 %
Self weight 4560 kg
Wheel &tires

Front 28×9-15-12PR
Rear 6.50-10PR
Tread Front 1000 m m
Rear 970 m m
Wheelbase 1700 m m

clearance(Full/No load)
Mast 110/135 m m
Frame 130/135 m m
Drive units

Engine Mode ISUZU C240PKJ
Rated output 34.5/2500 km/rpm
Rated torque 139/1800 N.m/rpm
No.of cylinder 4
Borexstroke 92×100 m m
Displacement 2.67 L


                         ※ The technical information may vary by the update policy, the changes will be without prior notice.
