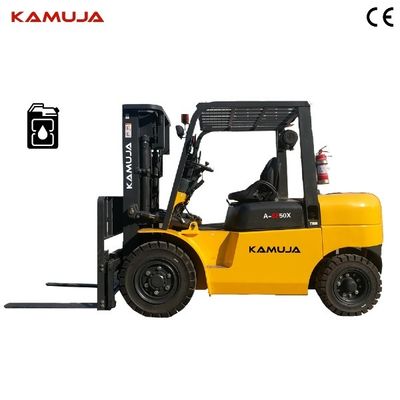

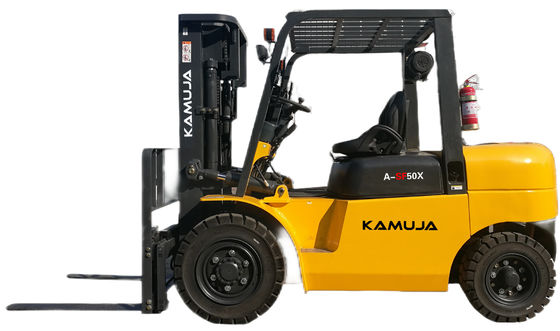

5000kg 5.0T Mitsubishi Diesel Forklift With Options For Mast A-SF50X
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Engine | Mitsubishi S6S |
|---|---|---|---|
| Max. Lifting Height | Standard 3m , Options : Free II & III Mast- 3.5~8M In Different Costs | Fork Length | 1220 Mm Or 1070mm |
| Rated Loading Capacity | 5000kg | Warranty | 1 Year Or 2000 Working Hours |
| High Light | 5.0T Mitsubishi Diesel Forklift,5000kg Mitsubishi Diesel Forklift,5000kg mitsubishi forklift |
||
Product Description
5000kg/5.0 Ton Diesel Mitsubishi Engine With Options for Mast A-SF50X
INTRODUCTION
Inherited the high quality characteristics of KAMUJA series products.
The machine has the advantages of compact and reasonable structure, strong lifting capacity, low failure rate and good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment.
FEATURES
① ENGINE SYSTEM
The engine has stable and reliable power output, low noise, low failure rate and long service life. Optional engine: Isuzu 6BG1; Chaochai 6102BG; Perkins 1104D-44TA.
② HYDRAULIC SYSTEM
Optimized matching hydraulic system, high working efficiency; Equipped with special hydraulic joint, high reliability, low oil leakage rate.
③ TRANSMISSION SYSTEM
The use of domestic first-class manufacturers speed box, low failure rate, high transmission efficiency, good maintenance.
④ ELECTRICAL SYSTEM
LCD instrument, integral control box, waterproof sealing plug-in structure, to ensure the whole electrical system safe and reliable.
⑤ CAB & CONSOLE
The use of wide field of view and high strength protective top guard frame can maximize the safety of the operator. The cab is spacious and equipped with quality seats for a comfortable driving experience.
⑥ DOOR FRAME TYPE IS AVAILABLE
Wide field of vision, three levels of full freedom.
⑦ ACCESSORIES ARE OPTIONAL FOR THE JOB
Side shifter, pitch fork, paper roll clip, soft clip, etc.
⑧FUEL CONSUMPTION GREEN ENVIRONMENTAL PROTECTION PERFORMANCE INTRODUCTION
The engine cover with large opening Angle design effectively increases the maintenance space; The detachable rear beam of the driving shed makes it easier to maintain the radiator; Hydraulic parts layout is reasonable, easy to maintain.
⑨EASY MAINTENANCE
Special maintenance space is reserved for the car body, making subsequent maintenance more convenient. Shantui perfect service network, timely and thoughtful service, is your peace of mind to use the equipment intimate guarantee.
OVERALL
CAPACITY CHART
SPECIFICATIONS
| General | Model | A-SF50X | ||
| Load capacity | 5000 | kg | ||
| Load center | 500 | m m | ||
| Power type | Diesel | |||
| Dimensions | Lift height H | 3000 | m m | |
| Free lit height H3 | 110 | m m | ||
| Fork size | 1070×150×50 1220×125×45 |
m m | ||
| Mast tilt ange a/β | 6/12 | deg | ||
| Fort overhang K | 570 | m m | ||
| Overall dimensions | Length to face of fork L1 | 4520 | m m | |
| Overall width | 1480 | m m | ||
| Overall height fork lowered H1 | 2190 | m m | ||
| Overall height fork raised H2 | 4300 | m m | ||
| Overall guard height H4 | 2290 | m m | ||
| Tuming radius | 3050 | m m | ||
| Min.right angle aisle width | 2785 | m m | ||
| Performance | Travel speed (Full/No load) | 19/25 | km/h | |
| Full load travel speed | 430 | km/h | ||
| Max.gradeability | 20 | % | ||
| Self weight | 7000 | kg | ||
| Wheel &tires | Tires | Front | 300-15-20PR | |
| Rear | 7.00-12-12PR | |||
| Tread | Front | 1180 | m m | |
| Rear | 1190 | m m | ||
| Wheelbase L | 2200 | m m | ||
| Ground clearance | Rack | 140 | m m | |
| Drive units &control |
Engine | Model | MitsubishiS6S | |
| Rated output | 57.4/2000 | km/rpm | ||
| Rated torque | 260/1700 | N.m/rpm | ||
| No.of cylinder | 4 | |||
| Borexstroke | 94×120 | m m | ||
| Displacement | 4.996 | L | ||
※ The technical information may vary by the update policy, the changes will be without prior notice.
