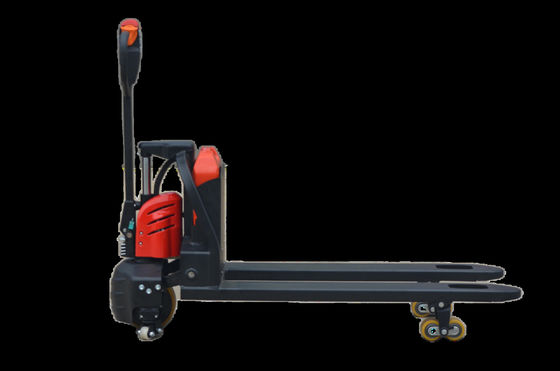

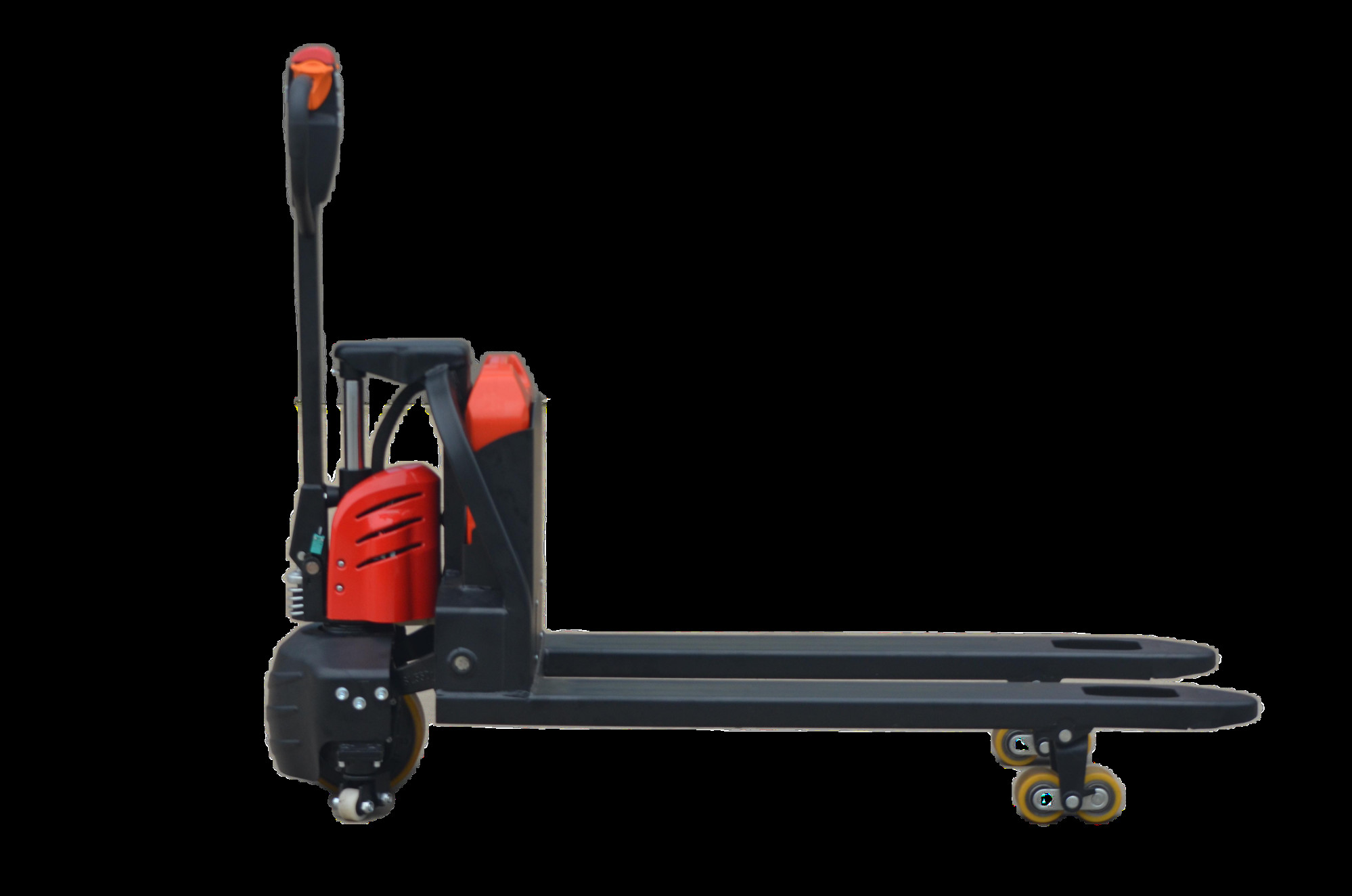

Pedestrian Electric Pallet Truck 1.5t&2t
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | DC | Max. Lifting Height | 200 Mm |
|---|---|---|---|
| Fork Width | 550/685 Mm | Rated Loading Capacity | 1.5t/1500kg Or 2.0t/2000kg |
| Fork Size | 50/150/1150 S/e/l (mm) | Warranty | 1 Year |
| High Light | Pedestrian Electric pallet truck,1.5t Electric pallet truck,2t Electric pallet truck |
||
Product Description
PRODUCT FEATURES
1.The vehicle is simple, dexterous, reliable and easy to operate. Compact structure, small turning radius. Light weight, can be used in freight elevator. Low noise, high performance;
2.The structural design allows the vehicle to maintain a light weight while having a strong skeleton
3.The whole machine adopts open design, easy to disassemble and replace the battery, convenient for users to maintain the vehicle. when the battery runs out, another set of battery can be quickly replaced (optional), effectively extend working hours;
4.Reverse anti-collision switch, dual guarantee of electromagnetic braking and motor braking is adopted for driving braking, which fully considers the operator's driving safety;
5.The electric lifting function on the operating handle saves the operator energy. The manual descending function can adjust the descending speed by pulling the handle to improve safety；
6.The sturdy metal cover protects the motor and wheels, while also reliably protecting the operator's feet to improve safety；
| Characteristics | Model | SL15L3 | SL20L3 | ||||
| Power unit | Electric | Electric | |||||
| Operation | Pedestrian | Pedestrian | |||||
| Rated traction weight | Q (t) | 1.5 | 2.0 | ||||
| Load centre | c (mm) | 600 | 600 | ||||
| Axle centre to fork face | x (mm) | 944 | 944 | ||||
| Wheel base | y (mm) | 1243 | 1243 | ||||
| Weights | Service weight with battery | kg | 142 | 146 | |||
| Wheels/Tyres | Wheels type | PU | PU | ||||
| Driving wheel size | Φ×w(mm) | Φ210×70 | Φ210×70 | ||||
| Bearing wheel size | Φ×w(mm) | Φ80×60 | Φ80×60 | ||||
| Wheels, number front/rear (x = driven) | 1x/4 | 1x/4 | |||||
| Track width | b11 (mm) | 400/535 | 400/535 | ||||
| Dimensions | Lift | h3 (mm) | 200 | 200 | |||
| Overall height(With handle | h14 (mm) | 740/1160 | 740/1160 | ||||
| lowered hength | h13 (mm) | 85 | 85 | ||||
| Overall length | l1 (mm) | 1603 | 1603 | ||||
| Length to fork face | l2 (mm) | 453 | 453 | ||||
| Overall width | b1/ b2 (mm) | 550/685 | 550/685 | ||||
| Fork dimensions | s/e/l (mm) | 50/150/1150 | 50/150/1150 | ||||
| Width of forks | b5 (mm) | 550/685 | 550/685 | ||||
| Min.Ground clearance | m2 (mm) | 35 | 35 | ||||
| Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 1804 | 1804 | ||||
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 1854 | 1854 | ||||
| Min.Turning radius | Wa (mm) | 1398 | 1398 | ||||
| Performance | Travel speed,laden/unladen | (km/h) | 4.2/4.5 | 4.2/4.5 | |||
| Maximum climbing ability, with/without load | (%) | 5/10 | 5/10 | ||||
| Service brake | Electromagnetic | ||||||
| Drive | Drive motor, 60 minute rating | (kW) | 0.75 | 0.75 | |||
| Lift motor rating at S3 15% | (kW) | 0.5 | 0.8 | ||||
| Battery voltage/rated capacity | (V/Ah) | 24/20 | 24/30 | 24/40 | 48/20 | 48/30 | |
| Battery weight (± 5%) | (kg) | 6 | 8.2 | 10.2 | 10.2 | 13.2 | |
| Others | Type of drive control | DC | |||||
| Noise level at operator‘s ear | (dB(A)) | ≤70 | ≤70 | ||||
| Type of steering | Mechanical | ||||||
