FE4P16Q Lead Acid Battery Forklift 1600kg/1.6T Lithium Battery Forklift
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Power Souce | AC Motor |
|---|---|---|---|
| Max. Lifting Height | 3000mm | Fork Length | 920mm |
| Rated Loading Capacity | 1600kg | Warranty | 1 Year Or 2000 Working Hours |
| High Light | FE4P16Q Lead Acid Battery Forklift,Lead Acid Battery Forklift 1600kg,1.6T Lithium Battery Forklift |
||
Product Description

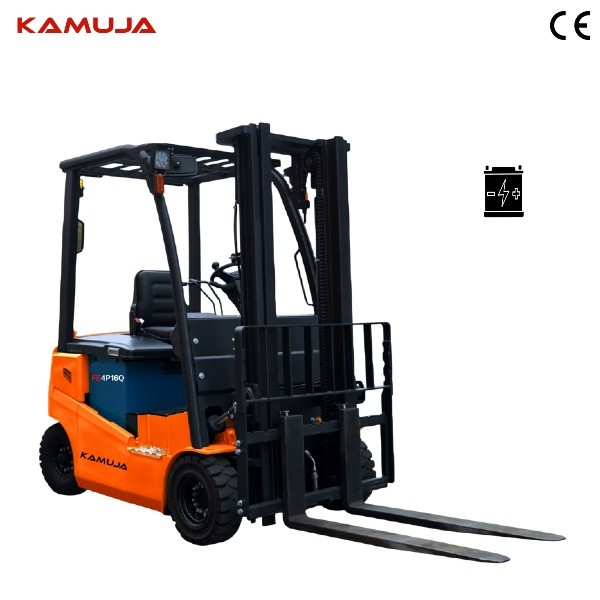

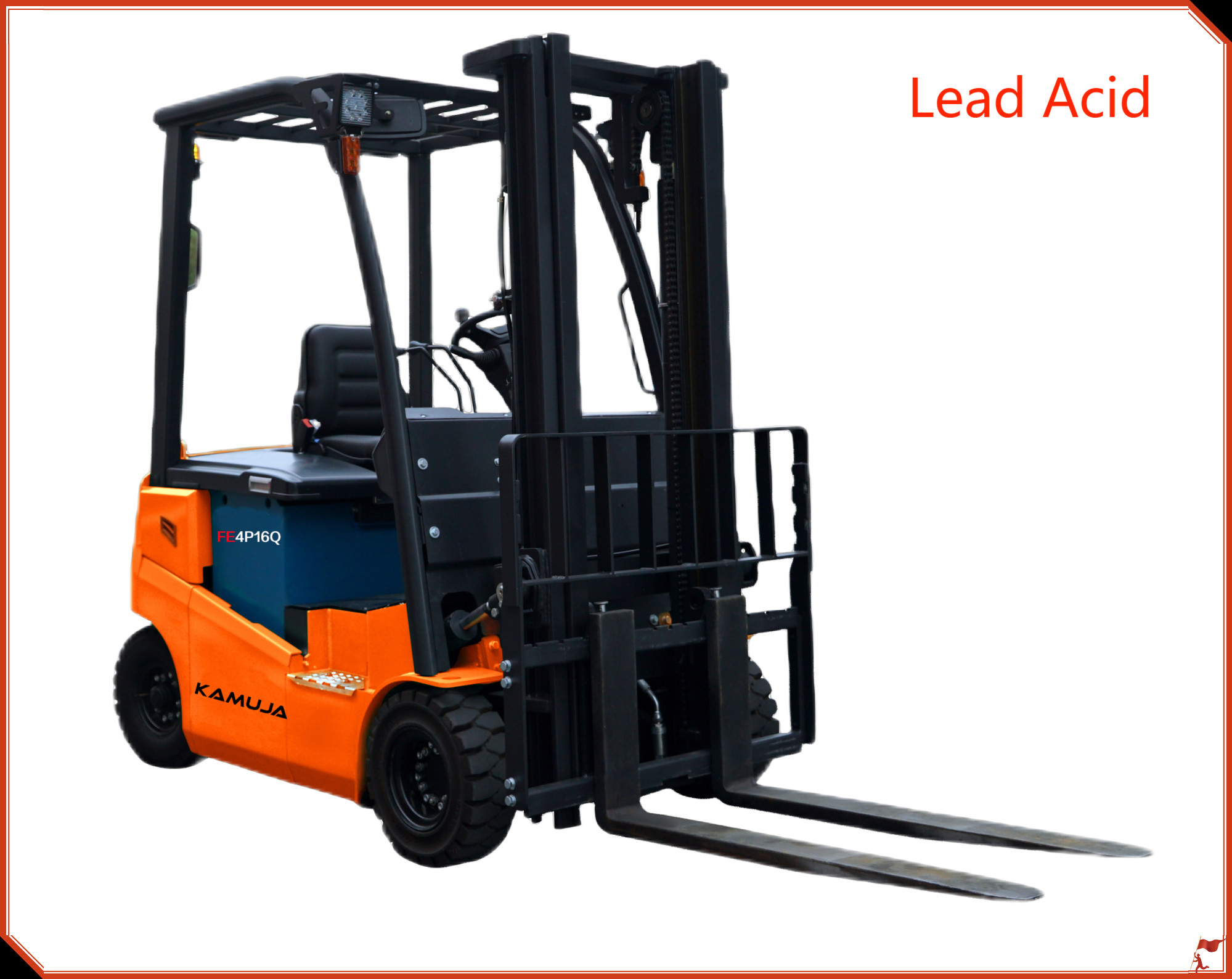

Electric Forklift (Lead Acid) 1600kg/1.6Ton Load Capacity
Features
Ergonomic design / High perfomance battery /Easy to mairtain/Acbust reliable design/Rated load1600Kg/High efficiency
①DRIVE AC MAINTENANCE-FREE
Drive motor adopts AC motor,maintenance-free,strong power;Conventional DC motors requirefrequent carbon brush replacement,while KAMUJA all-AC motors do not require carbon brushreplacement;With speed sensing and temperature sensing,the protection function is complete,and the reliability and life are greatly improved.
②SIDE EXIT BATTERY DESIGN
The battery can be replaced with another forklift,allowing for easy 24 hour continuousoperation,
③LOW CENTER OF GRAVITY DESIGN
The traditional system uses a transverse fan-shaped drive axle,parallel arrangement and largetransmission ratio.The battery is sunk at the bottom of the frame,the vehicle height is 2080mm,and the stability is good.
④LOW NOISE,GROUND VIBRATION DESIGN
The hydraulic system adopts low noise gear pump and full hydraulic power steering.Low noiseand comfortable operation.
Steering bridge shock absorption design:flexible connection is adopted to effectively protect thevehicle system and extend the service life of the vehicle.
⑤ELECTROMAGNETIC BRAKING MAKES DRIVING AND PARKING SAFER AND EASIER
The vehicle adopts the car control mode,electromagnetic braking,so that the driver's operationis more comfortable.
①DRIVE AC MAINTENANCE-FREE
Drive motor adopts AC motor,maintenance-free,strong power;Conventional DC motors requirefrequent carbon brush replacement,while KAMUJA all-AC motors do not require carbon brushreplacement;With speed sensing and temperature sensing,the protection function is complete,and the reliability and life are greatly improved.
②SIDE EXIT BATTERY DESIGN
The battery can be replaced with another forklift,allowing for easy 24 hour continuousoperation,
③LOW CENTER OF GRAVITY DESIGN
The traditional system uses a transverse fan-shaped drive axle,parallel arrangement and largetransmission ratio.The battery is sunk at the bottom of the frame,the vehicle height is 2080mm,and the stability is good.
④LOW NOISE,GROUND VIBRATION DESIGN
The hydraulic system adopts low noise gear pump and full hydraulic power steering.Low noiseand comfortable operation.
Steering bridge shock absorption design:flexible connection is adopted to effectively protect thevehicle system and extend the service life of the vehicle.
⑤ELECTROMAGNETIC BRAKING MAKES DRIVING AND PARKING SAFER AND EASIER
The vehicle adopts the car control mode,electromagnetic braking,so that the driver's operationis more comfortable.
Characteristic
1.1 Brand KAMUJA
1.2 Model FE4P16Q
1.3Drive mode: electric -Lead acid
1.4Operation mode: Mount type
1.5Rated load capacityQ(kg) : 1600
1.6Load center distanceC(mm) 500
Weight
2.1 Implicit battery when self-weight kg 2940
Chassis
3.1Tires: Solid/pneumatictire
3.2 Front wheel specification 18X7-83.3 Rear wheel specification 5.00-8-10PR
3.4Number of wheels, front/rear wheels (×= drive wheels)2×/2
3.5Front wheel treadb10(mm) 980
3.6The rear wheel baseb11(mm) 920
Basic size
4.1Gantry/fork tilt Angle, forward/back tilt α/β(°) 6/10
4.2Gantry retracting height h1(mm) 1985
4.3Free lifting height h2(mm) 130
4.4Lifting height h3(mm) 3000
4.5Gantry development height h4(mm) 3990
4.6Top guard height h6(mm) 2075
4.7Seat height h7(mm) 1065
4.8Traction pin height h10(mm) 530
4.9Overall length l1(mm) 3050
4.10 Body length (without fork) l2(mm) 2130
4.11Total width b1(mm) 1150
4.12Fork size s/e/l(mm) 35/100/920
4.13 Width of fork rackb3(mm) 1040
4.14 Ground clearance under the gantry m1(mm) 98
4.15 Ground clearance under the gantry m2(mm) 100
4.16Working channel width,1000X1200 pallets(1200 cross-fork placement)Ast(mm) 3571
4.17Working channel width,800X1200 pallets(1200 placed along the fork)Ast(mm) 3771
4.18 Radius of turning circleWa(mm) 1990
Performance parameter
5.1Travel speed, full/empty Km/h12/13
5.2 Increase speed, full/empty m/s 0.27/0.35
5.3Descent speed, full/empty m/s 0.52/0.42
5.4Maximum climb, S2 5 minutes full/no load % 12/15
5.5 Service brakeElectromagneticbrake
Electrical parameter
6.1 Drive motor power S2 5 min KW 7
6.2 Increase motor power S3 by 15% KW 8.6
6.3 Battery standard DIN
6.4 Battery voltage/rated capacity K5Volts/amps per hour LeadAcid :48/360(48/400,48/460)
Others
7.1 Drive control type AC
7.2 Work stress Mpa 14.5
7.3 The amount of oil L/min : 30
7.4Driver's ear noise level according to EN 12053 (Decibel ) : 72
