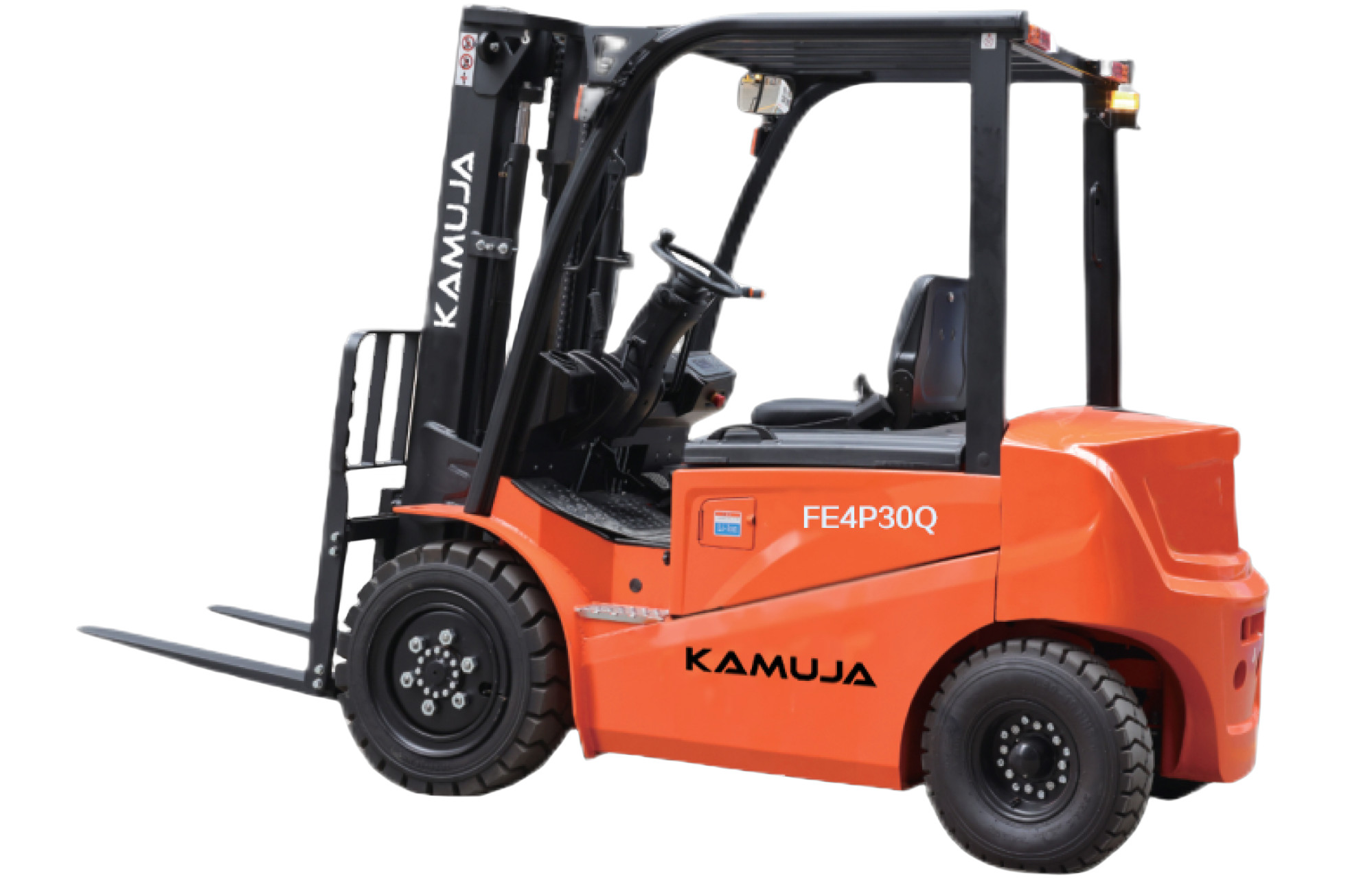

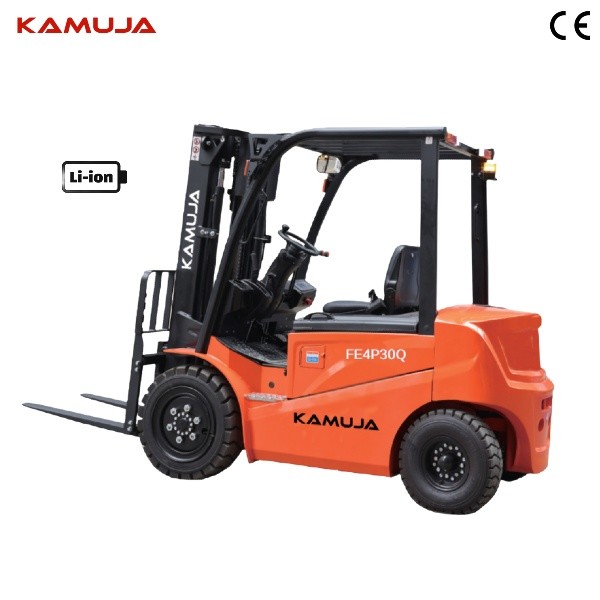

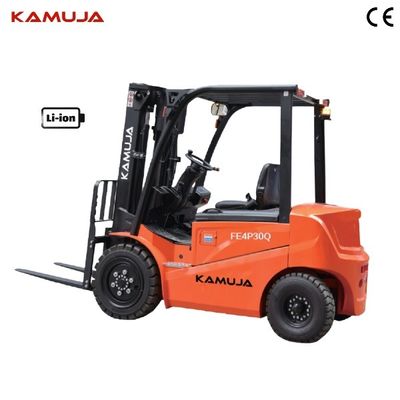

3.0T Lithium Battery Forklift AC Drive 3000kg Forklift Maintenance Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Power Souce | AC Motor |
|---|---|---|---|
| Max. Lifting Height | Standard 3m , Options : 3.5~6.5M In Different Costs | Certification | CE |
| Fork Length | 1070mm | Rated Loading Capacity | 3000kg |
| High Light | 3.0t lithium battery forklift,ac drive 3000kg forklift,lithium battery forklift ac drive |
||
Product Description
3.0T Lithium Baterry AC Drive Maintenance-Free Forklift 3000Kg
FEATURES : Ergonomic design / High perfomance battery /Easy to mairtain/Acbust reliable design/Rated load 3000Kg/High efficiency
① DRIVE AC MAINTENANCE-FREE
Drive motor adopts AC motor, maintenance-free, strong power; Conventional DC motors require frequent carbon brush replacement, while KAMUJA all-AC motors do not require carbon brush replacement; With speed sensing and temperature sensing, the protection function is complete, and the reliability and life are greatly improved.
② SIDE EXIT BATTERY DESIGN
The battery can be replaced with another forklift, allowing for easy 24 hour continuous operation.
③ LOW CENTER OF GRAVITY DESIGN
The traditional system uses a transverse fan-shaped drive axle, parallel arrangement and largetransmission ratio. The battery is sunk at the bottom of the frame, the vehicle height is 2080mm,and the stability is good.
④ LOW NOISE, GROUND VIBRATION DESIGN
The hydraulic system adopts low noise gear pump and full hydraulic power steering. Low noise and comfortable operation. Steering bridge shock absorption design: flexible connection is adopted to effectively protect thevehicle system and extend the service life of the vehicle.
⑤ ELECTROMAGNETIC BRAKING MAKES DRIVING AND PARKING SAFER AND EASIER
The vehicle adopts the car control mode, electromagnetic braking, so that the driver's operation is more comfortable.
Optional Mast
| Description |
Lift Height h3 mm |
Free Lift Height h2 mm |
Mast Stowed Height h1 mm |
Mast Extended Height h4 mm |
Tilt Angle Lean Forward/Backward α/β(⁰) |
Load Capacity (kg)C=500mm |
| No Side-shift, Inflatable Single Wheel | ||||||
| FE4P30Q | ||||||
| ZT Standard Stage II Mast | 2000 | 135 | 1570 | 3079 | 6/10 | 3000 |
| 2500 | 135 | 1820 | 3579 | 6/10 | 3000 | |
| 3000 | 135 | 2070 | 4079 | 6/10 | 3000 | |
| 3300 | 135 | 2220 | 4379 | 6/10 | 3000 | |
| 3500 | 135 | 2320 | 4579 | 6/10 | 3000 | |
| 3600 | 135 | 2370 | 4679 | 6/10 | 3000 | |
| 3700 | 135 | 2420 | 4779 | 6/10 | 2950 | |
| 4000 | 135 | 2620 | 5079 | 6/6 | 2850 | |
| 4300 | 135 | 2770 | 5379 | 6/6 | 2700 | |
| 4500 | 135 | 2870 | 5579 | 6/6 | 2500 | |
| 5000 | 135 | 3120 | 6079 | 6/6 | 2100 | |
|
ZZ Wide View Full Free Stage II Mast |
2000 | 563 | 1545 | 3079 | 6/10 | 3000 |
| 2500 | 813 | 1795 | 3579 | 6/10 | 3000 | |
| 3000 | 1063 | 2045 | 4079 | 6/10 | 3000 | |
| 3300 | 1213 | 2195 | 4379 | 6/10 | 3000 | |
| 3500 | 1313 | 2295 | 4579 | 6/10 | 3000 | |
| 3600 | 1363 | 2345 | 4679 | 6/10 | 3000 | |
| 3700 | 1413 | 2395 | 4779 | 6/6 | 3000 | |
| 4000 | 1613 | 2595 | 5079 | 6/6 | 2850 | |
|
DZ Wide View Full Free Stage III Mast |
4000 | 988 | 1970 | 5079 | 6/6 | 2750 |
| 4300 | 1113 | 2095 | 5379 | 6/6 | 2600 | |
| 4500 | 1163 | 2145 | 5579 | 6/6 | 2400 | |
| 4800 | 1263 | 2245 | 5879 | 6/6 | 2200 | |
| 5000 | 1406 | 2388 | 6079 | 6/6 | 2000 | |
| 5500 | 1640 | 2622 | 6579 | 3/6 | 1500 | |
| 6000 | 1873 | 2855 | 7079 | 3/6 | 1200 | |
| 6500 | 2107 | 3088 | 7579 | 3/3 | 800 |
SPECIFICATIONS
| Characteristic | 1.1 | Brand | KAMUJA | |
| 1.2 | Model | FE4P30Q | ||
| 1.3 |
Drive mode: electric (battery or power supply), diesel,gasoline, gas, manual |
Motor | ||
| 1.4 |
Operation mode: manual, walking, standing, riding, picking |
Mount type | ||
| 1.5 | Rated load capacity | Q(kg) | 3000 | |
| 1.6 | Load center distance | C(mm) | 500 | |
| 1.8 | Front overhang | X(mm) | 478 | |
| 1.9 | Wheel base | Y(mm) | 1800 | |
| Weight | 2.1 | Implicit battery (see 6.5) when self-weight | kg | 4070 |
| 2.2 | Bridge load at full load, front/rear | kg | 6390/680 | |
| 2.3 | Bridge load when unloaded, front/back | kg | 1750/2320 | |
| Chassis | 3.1 |
Tires: Solid rubber, super-elastomer, air tire, polyurethane tire |
Solid/pneumatic tire | |
| 3.2 | Front wheel specification | 28×9-15-14PR | ||
| 3.3 | Rear wheel specification | 6.50-10-10PR | ||
| 3.5 |
Number of wheels, front/rear wheels (×= drive wheels) |
2×/2 | ||
| 3.6 | Front wheel tread | b10(mm) | 1004 | |
| 3.7 | The rear wheel base | b11(mm) | 982 | |
| Basic size | 4.1 | Gantry/fork tilt Angle, forward/back tilt | α/β(°) | 6/10 |
| 4.2 | Gantry retracting height | h1(mm) | 2070 | |
| 4.3 | Free lifting height | h2(mm) | 140 | |
| 4.4 | Lifting height | h3(mm) | 3000 | |
| 4.5 | Gantry development height | h4(mm) | 4079 | |
| 4.7 | Top guard height | h6(mm) | 2150 | |
| 4.8 | Seat height | h7(mm) | 1130 | |
| 4.9 | Traction pin height | h10(mm) | 580 | |
| 4.10 | Overall length | l1(mm) | 3773 | |
| 4.11 | Body length (without fork) | l2(mm) | 2703 | |
| 4.12 | Total width | b1(mm) | 1226 | |
| 4.13 | Fork size | s/e/l(mm) | 45/125/1070 | |
| 4.14 | Width of fork rack | b3(mm) | 1100 | |
| 4.15 | Ground clearance under the gantry | m1(mm) | 135 | |
| 4.16 | Ground clearance under the gantry | m2(mm) | 150 | |
| 4.17 |
Working channel width,1000X1200 pallets (1200 cross-fork placement) |
Ast(mm) | 4078 | |
| 4.18 |
Working channel width,800X1200 pallets (1200 placed along the fork) |
Ast(mm) | 4278 | |
| 4.19 | Radius of turning circle | Wa(mm) | 2400 | |
|
Performance parameter |
5.1 | Travel speed, full/empty | Km/h | 12/13 |
| 5.2 | Increase speed, full/empty | m/s | 0.26/0.34 | |
| 5.3 | Descent speed, full/empty | m/s | ＜0.6 | |
| 5.5 | Traction, full/empty S2 60 minutes | 3500/2500 | ||
| 5.7 | Maximum climb, S2 5 minutes full/no load | % | 15/15 | |
| 5.10 | Service brake | electromagnetic brake | ||
|
Electrical Parameter |
6.1 | Drive motor power S2 5 min | KW | 11 |
| 6.2 | Increase motor power S3 by 15% | KW | 12 | |
| 6.3 | Battery standard | DIN | ||
| 6.4 | Battery voltage/rated capacity K5 | Volts/amps per hour | Li-ion : 80/200 80/300/400(Optional) | |
| 6.5 | Battery weight | kg | 215 | |
| Battery size, length/width/height | mm | 770/650/680 | ||
| Others | 8.1 | Drive control type | AC | |
| 8.2 | Work stress | Mpa | 17.5 | |
| 8.3 | The amount of oil | L/min | 36 | |
| 8.4 |
Driver's ear noise level according to EN 12 053 |
Decibel | 74 |
