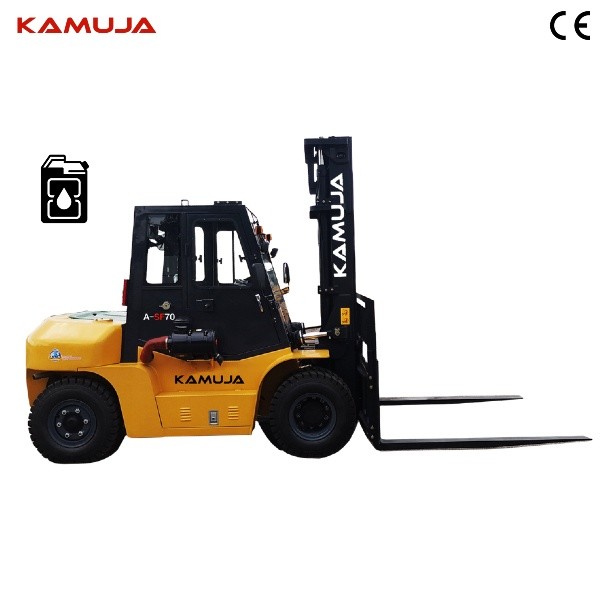

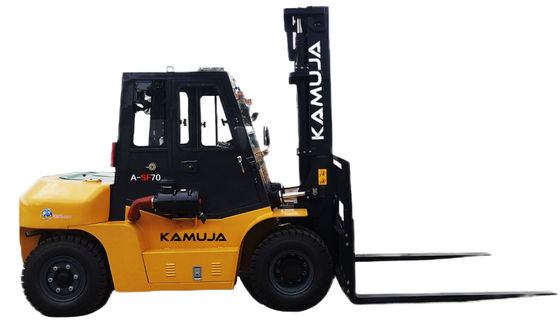

7000kg Diesel Engine Forklift 7 Ton Low Fuel Consumption And Strong Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Power Souce | Diesel Engine |
|---|---|---|---|
| Max. Lifting Height | 3m Up To 8m (optional) | Fork Length | 1220 Mm Or 1070mm |
| Rated Loading Capacity | 7000 KG | Engine | ISUZU |
| Warranty | 1 Year Or 1000 Working Hours | ||
| High Light | 7000kg Diesel Engine Forklift,Diesel Engine Forklift 7 Ton,7000kg diesel fork truck |
||
Product Description
7000kg/7ton Diesel Forklift with Low Fuel Consumption and Strong Power
FEATURES
①ENGINE SYSTEM
The engine works stably and reliably,with low fuel consumption and strong power.
②HYDRAULIC SYSTEM
The dual pump design allows separate operation of the power steering and lifting units,and the hydraulic joint designed specifically for KAMUJA provides high reliability and effectively reducesthe oil leakage rate.Full hydraulic load free induction steering system,easy to operate;It canensure that the speed of goods is increased under idle conditions,so that the vehicle is morestable and reliable.
③TRANSMISSION SYSTEM
Adopt the domestic first-class manufacturer's gearbox,transmission power is strong.
④ELECTRICAL SYSTEM
Using the latest technology of wiring harness and waterproof plug-in,multi-channel fuse layout,safe and reliable.
⑤CAB &CONSOLE
The cabin is spacious with premium seats for a comfortable driving experience,and theconfiguration's edge design can be seen from the driver's seat for optimal visibility whenreversing to determine the distance.
⑥DOOR FRAME TYPE IS AVAILABLE
Wide field of view/Level 2 Full freedom/Level 3 Full freedom
⑦ACCESSORIES ARE OPTIONGAL FOR THE JOB
Side shifter/pitch fork/roll clip/soft clip,etc
⑧APPLICABLE CONDITIONS/ENVIRONMENT
Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment
⑨FUEL CONSUMPTION/GREEN ENVIRONMENTAL PERFORMANCE INTRODUCTION
The vehicle has been optimized to the maximum extent, improving the operation efficiency,effectively reducing fuel consumption, energy saving and environmental protection.
⑩REPAIR AND EASE REPAIR
Special maintenance space is reserved for the car body, making subsequent maintenance moreconvenient. KAMUJA's perfect service network, timely and thoughtful service, is your peace of mind to use the equipment intimate guarantee
Special Equipment for Mast
Secondary wide view full free gantry
Three wide field of view full free gantry
Special fork
SPECIFICATIONS
| General | Model | Unit | A-SF70 | ||
| Load capacity | kg | 7000 | |||
| Load center | mm | 500 | |||
| Power type | Diesel | ||||
| Dimensions | Lift height | H | mm | 3000 | |
| Free lift ing height |  H3 | mm | 200 | ||
| Fork Distance (Out side) | mm | 300/1756 | |||
| Mast tilt angle | α/β | deg | 6/12 | ||
| Fort overhang | K | mm | 590 | ||
| Overall dimensions | Length to face of fork L1 | mm | 4800 | ||
| Overall width | mm | 1995 | |||
| Overall height fork lowered H1 | mm | 2625 | |||
| Overall height fork raised H2 | mm | 4420 | |||
| Overall guard height H4 | mm | 2460 | |||
| Turning radius | mm | 338 | |||
| Min.right angle aisle width | mm | 3000 | |||
| Performance | Travel speed (Full/No load) | Walking speed | km/h | 26/28 | |
| Lifting speed | km/h | 450/530 | |||
| Max.gradeability (Full/No load) | % | 20/15 | |||
| Self weight | kg | 930 | |||
| Chassis | Tires | Front | 8.25-15-14PR | ||
| Rear | 8.25-15-14PR | ||||
| Tire diatance | Front | mm | 1470 | ||
| Rear | mm | 1700 | |||
| Wheelbase | mm | 2250 | |||
| Ground clearance | Rack | mm | 200 | ||
| Drive units &control | Engine | Model | ISUZU 6BG1 | ||
| Rated output | km/rpm | 82.4/2000 | |||
| Rated torque | N.m/rpm | 416.8/1500 | |||
| No.of cylinder | 6 | ||||
| Bore×stroke | mm | 105×125 | |||
| Displacement | L | 5.785 | |||
Torque Converter of transmission box | Type | Hydraulic | |||
| Shift | Front and back | 2/2 | |||
| Working pressure | Mpa | 20 | |||
