40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | DIESEL FORKLIFT |
|---|---|---|---|
| Max. Lifting Height | 4m & Options | Certification | CE |
| Rated Loading Capacity | 40000kg | Warranty | 1 Year Or 1000 Working Hours |
| Fork Size | 2600*300*130(LxWxT) | ||
| High Light | 40t heavy duty diesel forklift,fd400 warehouse forklift,heavy duty diesel forklift fd400 |
||
Product Description
Express.Brochure.FD400.pdf

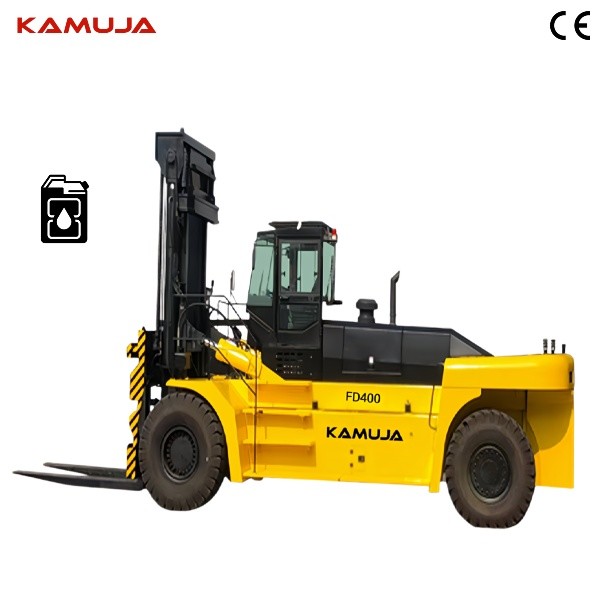

40T Heavy Duty Diesel Forklift : FD400
INTRODUCTION
Heavy duty forklift series FD, with many years of design and manufacturing experience, advanced technology. Products are widely used in logistics, stone processing, ports and terminals, and exported to foreign countries.
FEATURES
① The engine adopts a turbocharged engine with low fuel consumption,which has good power performance and large torque reserve.
② The braking system adopts the mature products of the manufacture.
The brake is a disc brake,with fast heat dissipation, light weight ,simple structure and convenient adjustment.It has good high temperature resistance performance under high load and stable braking effect.
③ The gearbox adopts domestic brand gearbox,which has good driving performance and traction performance. It is easy to maintain, economical and applicable, the accessories havegood versatility.
④ The operating system adopts the pilot valve to control the working system. Simple, convenient and comfortable operation. While reducing the labor intensity of the driver, the work efficiency is improved.
⑤Hydraulic system, double pump confluence,small system flow, low power consumption, stable performance.
⑥ The electrical system is equipped with maintenance-free batteries. Flame retardant wire and sheath, electrical components.
⑦The cab es luxurious with shock absorption, equipped with sunroof, heating and cooling air conditioner, wide field of vision and comfortable seat. With explosion-proof film, explosion-proof, heat insulation. Anti-glare, sound insulation.
⑧The fork adopts high-strength, mature products of the manufacturer, which can double the service life.
⑨Tire rim, no spoke steel rim, bear heavy load. Puncture-resistant high-strength tires.
⑩Reinforced drive axle, high-strength heavy-duty planetary wheel-side reduction drive axle.The axle housing has higher strength and greater bearing capacity.With the stability and stability.
Special Equipment for Mast
Wide view full free Stage II Mast
Wide field of view full free Stage III Mast
Special fork
OVERALL
CAPACITY CHART
SPECIFICATION
| Item | Specification | Unit | FD400 | |
| General | Rated Load | kg | 40000 | |
| Load center | mm | 1250 | ||
| Dimensions | Lift Height | mm | 4000 | |
| Fork Size(LxWxT) | mm | 2600*300*130 | ||
| Fork Spread(outside)(Min/Max) | mm |
910/2830 | ||
| Mast Tilt Angle(F/R) | deg | 6ʺ/12ʺ | ||
| Fork Overhang | mm | 1180 | ||
| Lenght without forks | mm | 8170 | ||
| Overall width | mm | 3600 | ||
| Mast Lowered Height | mm | 5040 | ||
| Overhead Guard Height | mm | 3820 | ||
| Outer Tuming Radius | mm | 7730 | ||
| Performance | Speed(Unload/Load) | Travel | Km/h | 30/26 |
| Lifting | Mm/s | 300 | ||
| Max gradeability(Load) | % | 20 | ||
| Max drawbar pull(Load) | KN | 240 | ||
| Setvice Weight | kg | 51000 | ||
| Wheels&Tires | Tire | Front | 4*18.00-25-28PR | |
| Rear | 2*16.00-25-28PR | |||
| Tread | Front | mm | 2495 | |
| Rear | mm | 2880 | ||
| Wheelbase | mm | 5500 | ||
| Ground Clearance(Under mast) | mm | 400 | ||
|
Power&Transmission Engine |
Battery | Voltage Capacity(5HR) | VA/h | 2*12/150 |
| Engine | Model | WP12G375E350 | ||
| Manufacture | WeiChai | |||
| Rated Output | Kw | 276 | ||
| Rated Torque | N.m | 1550 | ||
| No Of Cyinder | 6 | |||
| Broe*Stroke | mm | 126*155 | ||
| Dispiacement | L | 11.6 | ||
| Transmissions | Manufacture | ZL80 | ||
| StageFWD/RVS | April 4th | |||
| Operating Pressute | Mpa | 21 | ||
