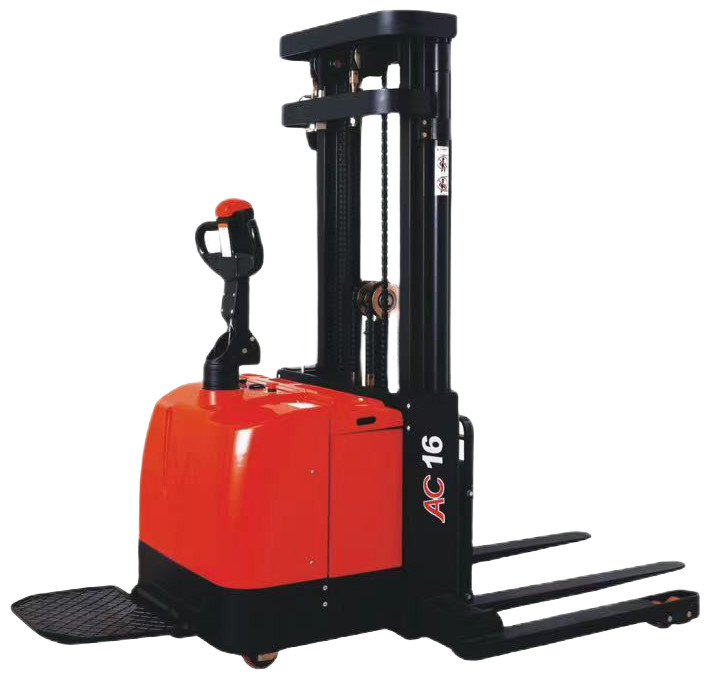

1400kg-1600kg Electric Stacker Forklift 5.8m Height Powered Pallet Stacker
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | AC Motor | Max. Lifting Height | 1.4m Up To 5.8m |
|---|---|---|---|
| Fork Length | 1070mm | Rated Loading Capacity | 1400kg Or 1600kg |
| High Light | 1600kg Electric Stacker Forklift,1400kg Electric Stacker Forklift,5.8m Height Powered Pallet Stacker |
||
Product Description
Brochure Stacker CDD14_16..pdf
Elextrical Starcker, 1400kg-1600kg, up to 5.8m lift height
FEATURES
1 CONFIGURATION & PERFORMANCE
Electronic power steering system, light and low noise.
Two-way magnetic valve, three drop speed mode
Drive unit floating bodies with patent design
AC Driving system.No carbon brush, maintenance free.
USA CURTIS driving controller
Electromagnetic. regenerative braking system.
Automatic lifting limit, proximity switch,long life.
2 SAFETY
Curve automatic deceleration devices, more safe.
Goods high position,vehicle automatic deceleration
Step-less speed control system.safe and quiet
Controller with Multiple automatic protection
Emergency reversing device/Emergency brake switch.
High position automatic reduction device
DETAILS
WIDE SPAN STACKER
Fork Over-side Span Distance: 200-812mm
FUNCTIONS
AC / EPS
Automatic deceleration on curves
Automatic deceleration at high position
OPTIONS
Li Battery (5 years warranty, free of maintenance)
200Ah: Full Charge in 2 hours
110Ah: Full Charge in 1 hour
SPECIFICATION
Feature
| Model | Unit | CDD14 | CDD16 | CDD16 | CDD16 |
| Configuration No | 920 | D920 | 960 | 360 | |
| Type | Wide legs | Wide legs | Wide legs | Wide legs | |
| Mast type | 2-Stage STD | 2-Stage STD | Full tree 3-Stage |
Full tree 3-Stage |
|
| Load capacity | kg | 1400 | 1600 | 1600 | 1600 |
| Load center | mm | 600 | 600 | 600 | 600 |
| Wheel Base | mm | 1310 | 1310 | 1375 | 1375 |
| Operating type | Walkie/Stand On | ||||
Wheels
| Wheel type | PU | PU | PU | PU | PU |
| Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 | 1/2/4 | 1/2/4 | 1/2/4 | 1/2/4 |
Dimension
Standard lift height |
mm |
1400/2000/2500 /3000/3300/360 0/4000 |
1400/2000/25 00/3000/3300 /3600/4000 |
3700/3900/420 0/4500/4700/5000 |
5300/5500/5800 | |
Lowered fork height |
mm |
55 |
55 |
55 |
55 |
|
| Fork size clength/width/thickness |
mm | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1070/100/40 | |
| Overall length | mm | 2005/2425 | 2005/2425 | 2073/2493 | 2073/2493 | |
| Overall width | mm | 1470 | 1470 | 1470 | 1470 | |
| Max extend heigh | mm | 1900/2500/3000 /3500/3800/410 0/4500 |
1900/2500/30 00/3500/3800 /4100/4500 |
4200/4400/470 0/5000/5200/5 500 |
5600/6000/63 00 |
|
| Mast lowered height | mm | 1185/1535/1765 /1980/2135/233 5/2500 |
1185/1535/17 65/1980/2135 /2335/2500 |
1800/1900/198 5/2085/2135/2 235 |
2520/2590/26 90 |
|
| Min.Tuming radius | mm | 1565/1975 | 1565/1975 | 1630/2040 | 1630/2040 | |
| Min.Aisle width for paclets800*1200 |
mm | 2230/2560 | 2230/2560 | 2230/2625 | 2230/2625 | |
| Min.Aisle width for paclets800*1200 |
mm | 2260/2585 | 2260/2585 | 2260/2650 | 2260/2650 | |
| Min.ground clearance | mm | 50 | 50 | 50 | 50 | |
Performance
| Travel speed.laden/unlader |
Km/h | 5/5 | 5/5 | 5/5 | 5/5 | |
| Lift speed.laden/unladen | Mm/s | 130/230 | 130/230 | 130/230 | 130/230 | |
| Lowering speed.laden/unladen |
Mm/s | 130/230 | 130/230 | 130/230 | 130/230 | |
| Gradeability speed.laden/unladen |
% | 5/7 | 5/7 | 5/7 |
5/7 |
|
Electrical configuration
| Drive motor/Lift motor/Steering motor |
kw | AC1.5/DC3/DC 0.15 |
AC1.5/DC3/D C0.15 |
AC1.5/DC3/D C0.15 |
AC1.5/DC3/D C0.15 |
|
| Battery voltage | V | 24 | 24 | 24 | 24 | |
| Battery capacity | Ah | 280 | 280 | 280 | 280 | |
| Brake | Electromagnetic/Regenrative | |||||
| Controller | CURTIS | |||||
Weight
| Battery weight | kg | 250 | 250 | 250 | 250 | |
| Service weight with battery |
kg | 1300 | 1370 | 1648 | 1680 | |
