3.8 Ton Diesel Engine Forklift 3800kg Standard 3m Lifting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Power Souce | Diesel Engine |
|---|---|---|---|
| Engine | ISUZU C240 | Max. Lifting Height | Standard 3m , Options : Free II & III Mast- 3.5~8M In Different Costs |
| Fork Length | 1220 Mm Or 1070mm | Rated Loading Capacity | 3800kg |
| Warranty | 1 Year Or 2000 Working Hours | ||
| High Light | 3.8 Ton Diesel Engine Forklift,3800kg Diesel Engine Forklift,3m Lifting Diesel Forklift |
||
Product Description

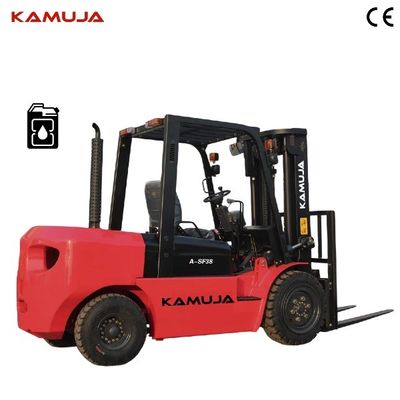

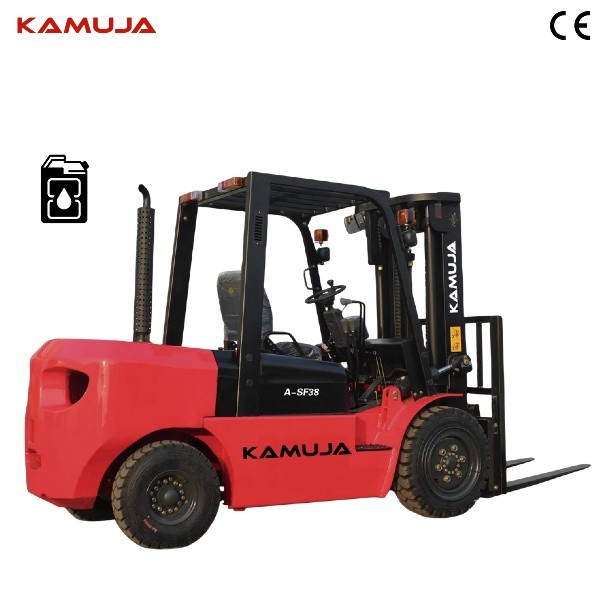

3800kg/3.8 Ton Diesel ISUZU Engine With Options for Mast - A-SF38
INTRODUCTION
Inherited the KAMUJA series of products have always high quality characteristics, the machine structure is compact and reasonable, lifting capacity is strong, low failure rate. Good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment.
FEATURES
① OUTSTANDING RELIABILITY
l Powerful performance: powerful engine; all load-bearing parts are optimized and designed using finite element analysis. The soft and hard pipes of the hydraulic system are all in compliance with International standards.
l High work efficiency: low inpu
t torque fully hydraulic steering gear, flexible operation and light steering; optimized control system, greatly improving driver operating efficiency.
l Improved energy efficiency: Optimize the design of hydraulic and transmission systems, greatly improve the energy efficiency of the entire machine, and lower the cost of use.
l Low maintenance cost: The purchased parts are popular choices from the first-line brands in the industry. The accessories are highly versatile, easy to maintain, and have low maintenance cost.
l Humanized design upgrade: large space, large control field of view, high-rigidity iron hood with built-in heat-insulating and sound-absorbing materials, flame retardant and heat-insulating, improving driving comfort and reducing noise and vibration to people and car hazards.
② POWER SYSTEM
l Equipped with ISUZU diesel engine, the power output is stable and the performance is reliable.
l Optimize the frame design and increase the fuel tank capacity.
l The large-capacity water tank improves the heat dissipation channel, and adjusts the position of the air guide hood and the end of the fan to greatly improve the heat dissipation efficiency, ensure reliable engine operation, and extend engine life.
l The engine air intake system uses a high-level independent channel to effectively reduce dust inhalation, extend engine life, and make the engine work more reliably.
③ TRANSMISSION SYSTEM
l Kangda drive axle, an integrally cast drive axle and a steering axle welded with high-strength plates, greatly improves the reliability of the vehicle.
l It has high transmission efficiency, light operation, low noise, and no impact when shifting gears.
④ HYDRAULIC SYSTEM
l Well-know brand components
l The external oil return filter works stably and is easy to maintain.
⑤ ELECTRICAL SYSTEM
l It adopts intelligent electronic monitoring combination instrument with high reliability, and the electrical system adopts waterproof sealed plug-in structure, which is safe and reliable.
l Combination lamps with high reliability and high sealing level.

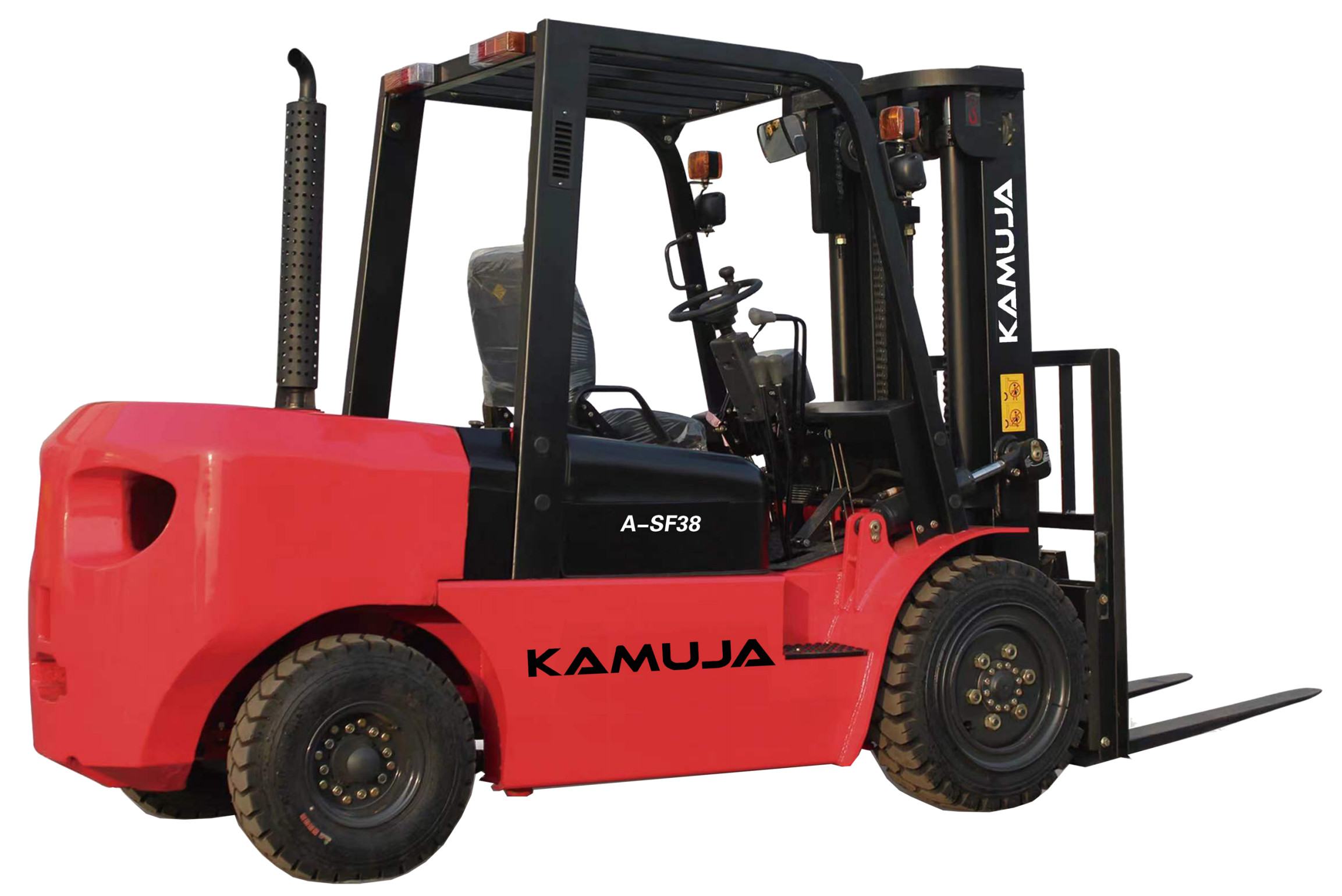

OVERALL
CAPACITY CHART
SPECIFICATIONS
| General | 1 | Mode | Unit | A-SF38 | |
| 2 | Load capacity | kg | 3800 | ||
| 3 | Load center | mm | 500 | ||
| 4 | Power type | Diesel | |||
| Dimensions | 5 | Lit height | mm | 3000 | |
| 6 | Free lit height | mm | 100 | ||
| 7 | Fork size | mm | 1070*150*45 1220×125×45 |
||
| 8 | Mast tit angle | deg | 6/12 | ||
| 9 | Fort overhang | mm | 500 | ||
| 10 | Overall dimensions | Length to face of fork | mm | 4105 | |
| 11 | Overall width | mm | 1400 | ||
| 12 | Overall height fork lowered | mm | 2190 | ||
| 13 | Overall height fork raised | mm | 4270 | ||
| 14 | Overall guard height | mm | 2230 | ||
| 15 | Tuming radius | mm | 2800 | ||
| Performance | 16 | Travel speed (Full/No load) |
Hydraulic | km/h | 19/20 |
| 17 | Mechanical | km/h | 19/20 | ||
| 18 | Lift speed with Load | mm/sec | 410 | ||
| 19 | Max.gradeability | % | 20 | ||
| 20 | Self weight | kg | 5100 | ||
| Wheel &tires | 21 | Tires |
Front | 250-15-12PR | |
| 22 | Rear | 7.00-12-12PR | |||
| 23 | Tread | Front | mm | 1160 | |
| 24 | Rear | mm | 1065 | ||
| 25 | Wheelbase | mm | 1900 | ||
| 26 | Ground clearance (Ful/No load) |
Mast | mm | 140 | |
| 27 | Frame | mm | 135 | ||
| Drive units &control | 28 | Engine | Model | ISUZU 4JG2 | |
| 29 | Rated output | kw | 44.9/2450 | ||
| 30 | Rated torque | N.m/rpm | 84.7/1700 | ||
| 31 | No.of cylinder | 4 | |||
| 32 | Borexstroke | mm | 95.4×107 | ||
| 33 | Displacement | L | 3.059 | ||
※ The technical information may vary by the update policy, the changes will be without prior notice.
