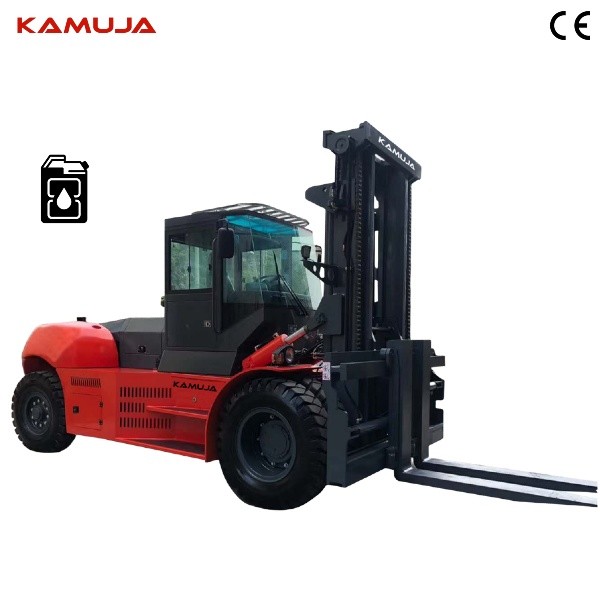

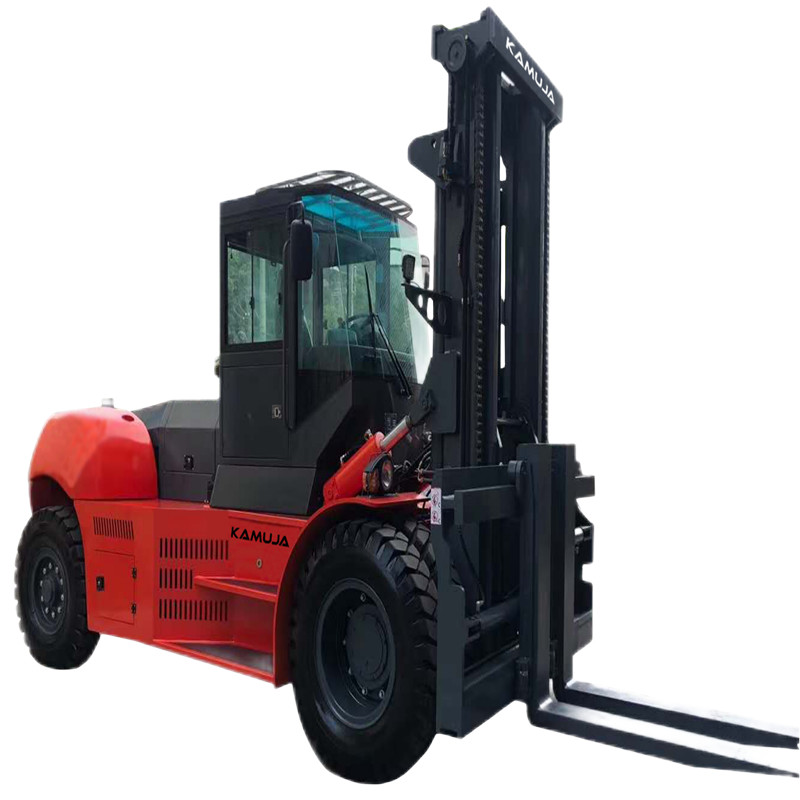

16000kg Heavy Duty Forklift 16T Diesel Engine Hydraulic Dist. Adjust
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Max. Lifting Height | 5180mm |
|---|---|---|---|
| Rated Loading Capacity | 16000kg/16t | Engine | Cummins 6BTAA5.9 |
| Warranty | 1 Year Or 2000 Working Hours | Fork Size | 1800*200*90 Or 2200*220*100 |
| High Light | 16000kg heavy duty forklift,heavy duty forklift 16t,16000kg heavy equipment forklift |
||
Product Description
Heavy Duty 16T Forklift, Hydraulic Dist. adjust,Side shift,II-3.5m Mast
INTRODUCTION
Heavy duty forklift series FD, with many years of design and manufacturing experience, advanced technology. Products are widely used in logistics, stone processing, ports and terminals, and exported to foreign countries.
FEATURES
① The engine adopts a turbocharged engine with low fuel consumption,which has good power performance and large torque reserve.
② The braking system adopts the mature products of the manufacture.
The brake is a disc brake,with fast heat dissipation, light weight ,simple structure and convenient adjustment.It has good high temperature resistance performance under high load and stable braking effect.
③ The gearbox adopts domestic brand gearbox,which has good driving performance and traction performance. It is easy to maintain, economical and applicable, the accessories have good versatility.
④ The operating system adopts the pilot valve to control the working system. Simple, convenient and comfortable operation. While reducing the labor intensity of the driver, the work efficiency is improved.
⑤Hydraulic system, double pump confluence,small system flow, low power consumption, stable performance.
⑥ The electrical system is equipped with maintenance-free batteries. Flame retardant wire and sheath, electrical components.
⑦The cab es luxurious with shock absorption, equipped with sunroof, heating and cooling air conditioner, wide field of vision and comfortable seat. With explosion-proof film, explosion-proof, heat insulation. Anti-glare, sound insulation.
⑧The fork adopts high-strength, mature products of the manufacturer, which can double the service life.
⑨Tire rim, no spoke steel rim, bear heavy load. Puncture-resistant high-strength tires.
⑩Reinforced drive axle, high-strength heavy-duty planetary wheel-side reduction drive axle.The axle housing has higher strength and greater bearing capacity.With the stability and stability.
OVERALL
CAPACITY CHART
SPECIFICATIONS
| Item | Specification | Unit | FD160 |
| Features | Rated Load | kg | 16000 |
| Load center C | mm | 900 | |
| Wheelbase Y | mm | 3600 | |
| Weight | Weight | kg | 23000 |
| Chassis | Tire Specs:Front | 12.00-24-20PR | |
| Tire Specs:Rear | 12.00-20-18PR | ||
| Tire Qty,front/rear(X-drive wheels) | 4/2 | ||
| Wheel tread:Front b3 | mm | 1850 | |
| Wheel tread:Rear b4 | mm | 2130 | |
| Dimensions | Mast/carriage tilt angel(front/rear) αβ | Degree(*) | 6/12 |
| Mast height(front lowering) h1 | mm | 3460 | |
| Mast lifting height h2 | mm | 3500 | |
| Max.height h3 | mm | 5180 | |
| Height to head guard(height to cab) h4 | mm | 3365 | |
| Overall height (with forks) | mm | 7200 | |
| Fork front vertical surface to the rear end of the vehicle L2 |
mm | 5180 | |
| Overall width b1 | mm | 2550 | |
| Fork dimension L4 | mm | 1800*200*90 | |
| Fork carriage width b2 | mm | 2500 | |
| Mast min ground (with load) m1 | mm | 270 | |
| Wheelbase center min ground (with load) L1 | mm | 310 | |
| Min.turning Radius Wa | mm | 5050 | |
| Travel speed(with load/w/.o load) | Km/h | 22/30 | |
| Performance | Mast.lifting speed (w/.load/w/.o load) | Mm/s | 240/300 |
| Traction | KN | 130 | |
| Gradeability (w/./w/.o load) | % | 20/22 | |
| Engine | Engine brand/model | Emission Ⅱ |
Cummins6BTAA5.9-C1906.7L142kw 2200rpm/min |
| Emission Ⅲ |
CumminsQSB6.7-C1906.7L142kw 2200r/min |
||
| Rated | 129(Kw) | ||
| Cylinder | 6 | ||
| Others | Transmission gears(Front/rears) | 2/1 |
※ The technical information may vary by the update policy, the changes will be without prior notice.
.
