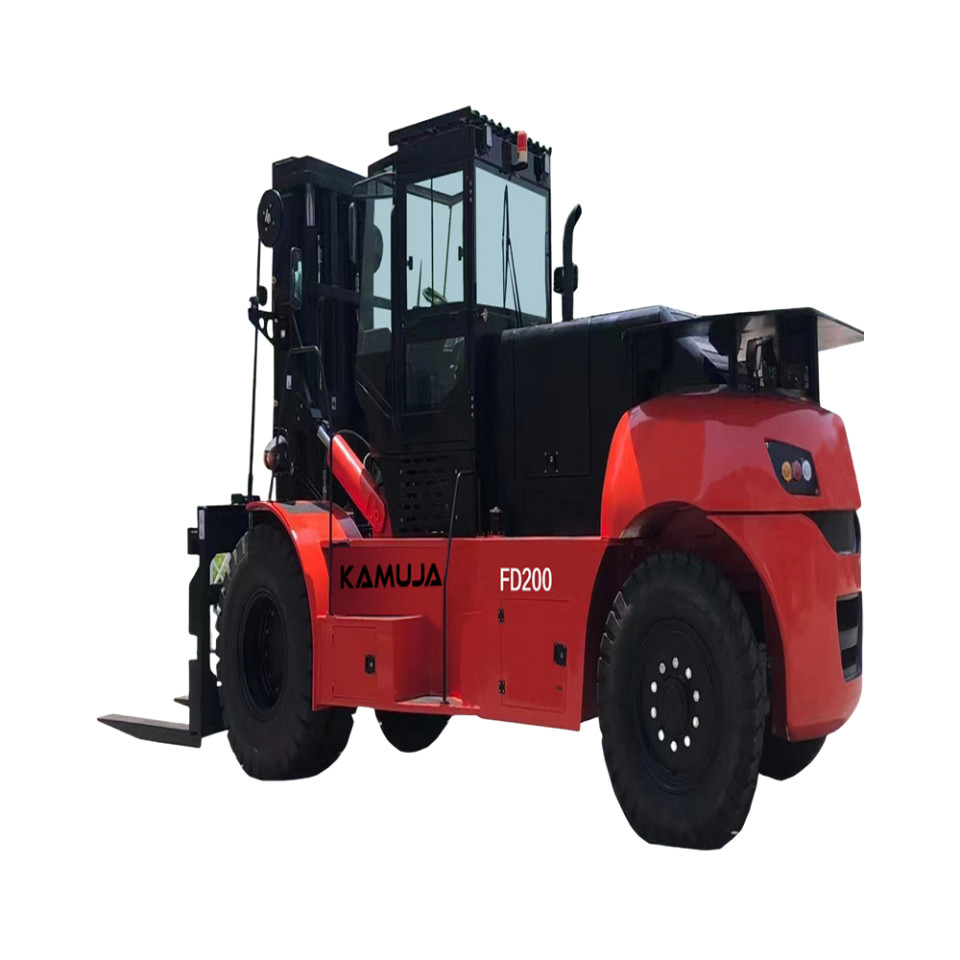

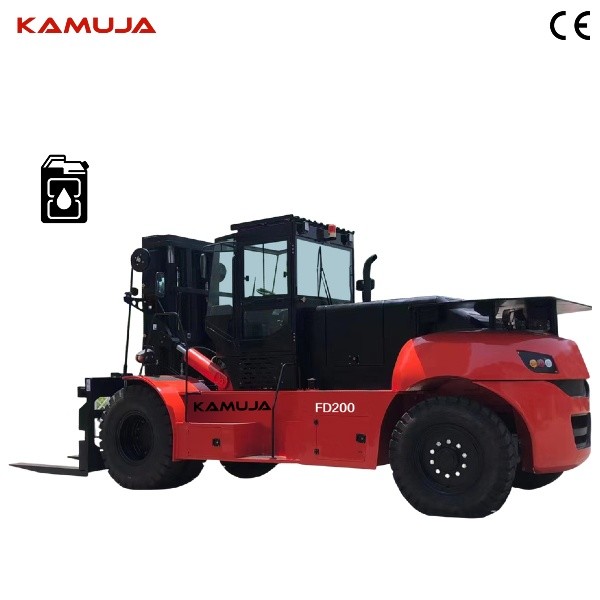

20T Heavy Duty Forklift 20000kg Hydraulic Dist Adjust Side Shifter

Place of Origin China
Brand Name KAMUJA
Certification CE
Model Number FD200
Minimum Order Quantity 1 UNIT
Price USD 100K-120K/ UNIT
Packaging Details TBD
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Power Souce Diesel Engine
Engine Cummins 6CTA8.3 Max. Lifting Height 5200mm
Rated Loading Capacity 20000kg / 20T Warranty 1 Year Or 2000 Working Hours
Fork Size 2200*220*100mm
High Light

20t heavy duty forklift

,

heavy duty forklift 20000kg

,

20t heavy equipment forklift

Leave a Message
Product Description

Express.Brochure.FD200.pdf

Heavy Duty 20T Forklift,Hydraulic Dist.adjust,Side shifter,II-3.5m Mast

INTRODUCTION

Heavy duty forklift series FD, with many years of design and manufacturing experience, advanced technology. Products are widely used in logistics, stone processing, ports and terminals, and exported to foreign countries.



FEATURES

The engine adopts a turbocharged engine with low fuel consumption,which has good power performance and large torque reserve.

② The braking system adopts the mature products of the manufacture.

The brake is a disc brake,with fast heat dissipation, light weight ,simple structure and convenient adjustment.It has good high temperature resistance performance under high load and stable braking effect.

The gearbox adopts domestic brand gearbox,which has good driving performance and traction performance. It is easy to maintain, economical and applicable, the accessories have good versatility.

The operating system adopts the pilot valve to control the working system. Simple, convenient and comfortable operation. While reducing the labor intensity of the driver, the work efficiency is improved.

Hydraulic system, double pump confluence,small system flow, low power consumption, stable performance.

The electrical system is equipped with maintenance-free batteries. Flame retardant wire and sheath, electrical components.

The cab es luxurious with shock absorption, equipped with sunroof, heating and cooling air conditioner, wide field of vision and comfortable seat. With explosion-proof film, explosion-proof, heat insulation. Anti-glare, sound insulation.

The fork adopts high-strength, mature products of the manufacturer, which can double the service life.

Tire rim, no spoke steel rim, bear heavy load. Puncture-resistant high-strength tires.

Reinforced drive axle, high-strength heavy-duty planetary wheel-side reduction drive axle.The axle housing has higher strength and greater bearing capacity.With the stability and stability.



OVERALL




CAPACITY CHART



SPECIFICATIONS
Item Specification Unit FD200
Features Rated Load kg 20000
Load center C mm 1250
Wheelbase Y mm 4000
Weight Weight kg 29000
Chassis Tire Specs:Front   14.00-24-20PR
Tire Specs:Rear   12.00-20-20PR
Tire Qty,front/rear(X-drive wheels)   4/2
Wheel tread:Front b3 mm 2200
Wheel tread:Rear b4 mm 2130
Dimensions Mast/carriage tilt angel(front/rear) αβ Degree(*) 6/12
Mast height(front lowering) h1 mm 3480
Mast lifting height h2 mm 3500
Max.height h3 mm 5200
Height to head guard(height to cab) h4 mm 3300
Overall height(with forks) mm 8000
Fork front vertical surface to the rear end of the vehicle

L2
mm 6000
Overall width b1 mm 2930
Fork dimension L4 mm 2200*220*100
Fork carriage width b2 mm 2500
Mast min ground (with load) m1 mm 270
Wheelbase center min ground (with load) L1 mm 350
Min.turning Radius Wa mm 5600
Travel speed(with load/w/.o load) Km/h 26/30
Performance Mast.lifting speed (w/.load/w/.o load) Mm/s 260/270
Traction KN 140
Gradeability (w/./w/.o load) % 20/22
Engine Engine brand/model Emission

Cummins6CTA8.3-C215 8.3L160kw
2200rpm/min
Emission

CumminsQSC8.3-C215 8.3L160kw

2200r/min
Rated 162(Kw)
Cylinder 6
Others Transmission gears(Front/rears)   2/1



※ The technical information may vary by the update policy, the changes will be without prior notice.
