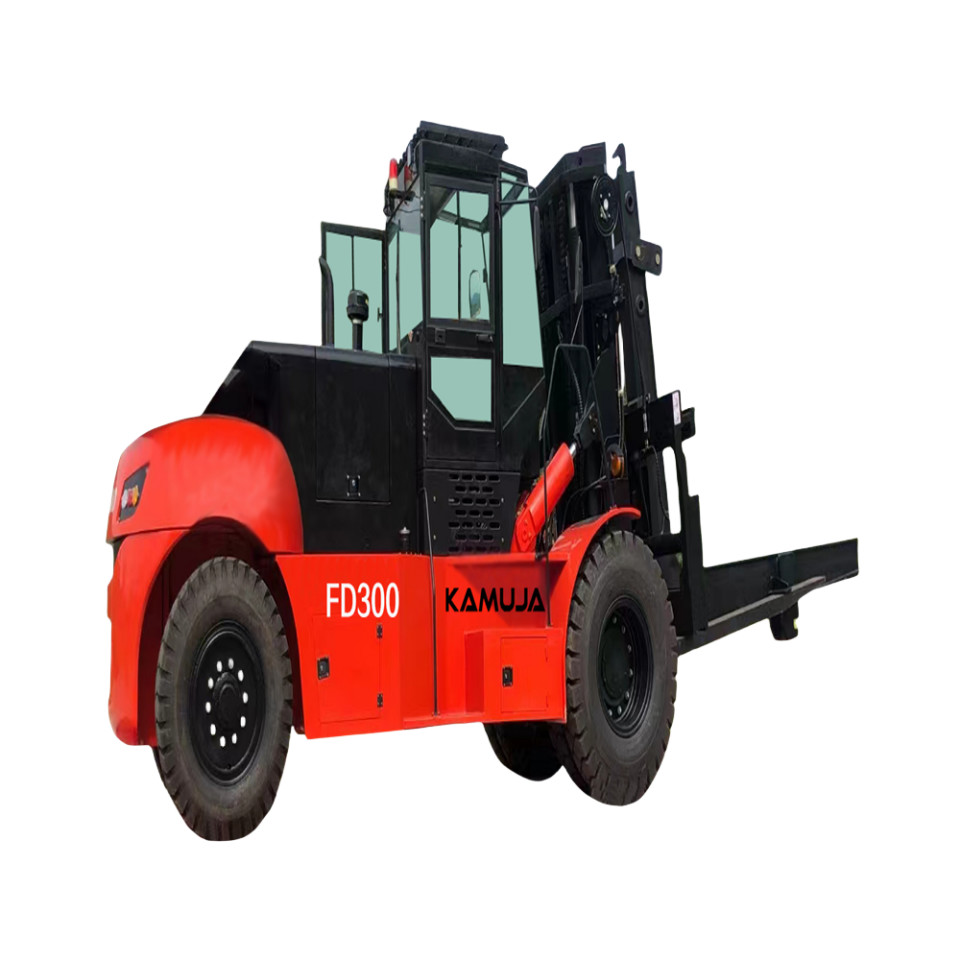

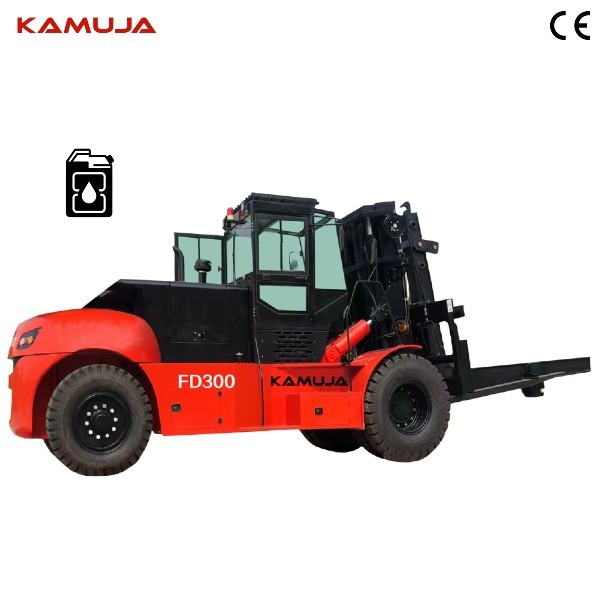

Cummins 6CTA8.3 30Ton Heavy Fork Lift FD300 30000kg Fork Truck

Place of Origin China
Brand Name KAMUJA
Certification CE
Model Number FD300
Minimum Order Quantity 1 UNIT
Price USD 130K-150K/ UNIT
Packaging Details TBD
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Power Souce Diesel Engine Engine Cummins 6CTA8.3
Max. Lifting Height 6120 Mm Rated Loading Capacity 30000kg/30Ton
Warranty 1 Year Or 2000 Working Hours Fork Size 2400*320*120
High Light

30ton heavy fork lift


heavy fork lift fd300


30000kg fork truck

Leave a Message
Product Description


Heavy Duty 30Ton Forklift, Fork- Dist. Adjust,Side Shifter, II-4m Mast


Heavy duty forklift series FD, with many years of design and manufacturing experience, advanced technology. Products are widely used in logistics, stone processing, ports and terminals, and exported to foreign countries.



The engine adopts a turbocharged engine with low fuel consumption,which has good power performance and large torque reserve.

② The braking system adopts the mature products of the manufacture.

The brake is a disc brake,with fast heat dissipation, light weight ,simple structure and convenient adjustment.It has good high temperature resistance performance under high load and stable braking effect.

The gearbox adopts domestic brand gearbox,which has good driving performance and traction performance. It is easy to maintain, economical and applicable, the accessories have good versatility.

The operating system adopts the pilot valve to control the working system. Simple, convenient and comfortable operation. While reducing the labor intensity of the driver, the work efficiency is improved.

Hydraulic system, double pump confluence,small system flow, low power consumption, stable performance.

The electrical system is equipped with maintenance-free batteries. Flame retardant wire and sheath, electrical components.

The cab es luxurious with shock absorption, equipped with sunroof, heating and cooling air conditioner, wide field of vision and comfortable seat. With explosion-proof film, explosion-proof, heat insulation. Anti-glare, sound insulation.

The fork adopts high-strength, mature products of the manufacturer, which can double the service life.

Tire rim, no spoke steel rim, bear heavy load. Puncture-resistant high-strength tires.

Reinforced drive axle, high-strength heavy-duty planetary wheel-side reduction drive axle.The axle housing has higher strength and greater bearing capacity.With the stability and stability.







Item Specification Unit FD300
Features Rated Load kg 30000
Load center C mm 1250
Wheelbase Y mm 4800
Weight Weight kg 38000
Chassis Tire Specs:Front   14.00-24-32PR
Tire Specs:Rear   14.00-24-32PR
Tire Qty,front/rear(X-drive wheels)   4/2
Wheel tread:Front b3 mm 2430
Wheel tread:Rear b4 mm 2230
Dimensions Mast/carriage tilt angel(front/rear) αβ Degree(*) 6/12
Mast height(front lowering) h1 mm 4150
Mast lifting height h2 mm 4000
Max.height h3 mm 6120
Height to head guard(height to cab) h4 mm 3460
Overall height (with forks) mm 9760
Fork front vertical surface to the rear end of the vehicle

Overall width b1 mm 3360
Fork dimension L4 mm 2400*320*120
Fork carriage width b2 mm 3000
Mast min ground (with load) m1 mm 400
Wheelbase center min ground (with load) L1 mm 460
Min.turning Radius Wa mm 6900
Travel speed(with load/w/.o load) Km/h 25/28
Performance Mast.lifting speed (w/.load/w/.o load) Mm/s 260/280
Traction KN 200
Gradeability (w/./w/.o load) % 20/22
Engine Engine brand/model Emission

Cummins6CTA8.3-C260 8.3L194kw


Rated 178(Kw)
Cylinder 6
Others Transmission gears(Front/rears)   2/1


                          ※ The technical information may vary by the update policy, the changes will be without prior notice.
