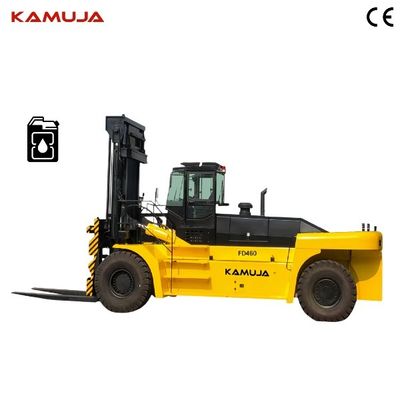

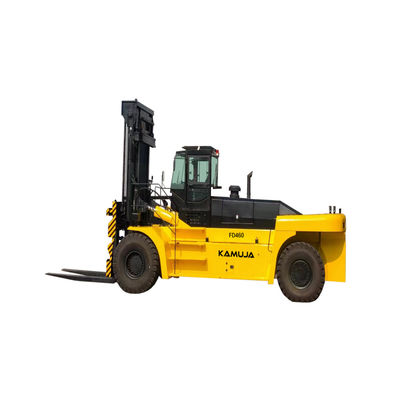

FD460 Heavy Duty Fork Truck 46T Forklift Heavy Equipment With Luxury Cab

Place of Origin China
Brand Name KAMUJA
Certification CE
Model Number FD460
Minimum Order Quantity 1 UNIT
Price USD To be negotiated
Packaging Details TBD
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Souce Diesel Engine Engine Weichai WP12G375E350
Max. Lifting Height 4m Or Options Free II Or III Mast (TBD) Rated Loading Capacity 46000kg/46Ton
Warranty 1 Year Or 2000 Working Hours Fork Size 2600*300*130(LxWxT)
High Light

fd460 heavy duty fork truck

,

46t forklift heavy equipment

,

heavy duty fork truck 46t

Leave a Message
Product Description

Express.Brochure.FD460.pdf

Heavy Duty 46T Forklift,Dis.Adjust,Side Shifter,S.II-4m Mast,Luxury Cab

INTRODUCTION

Heavy duty forklift series FD, with many years of design and manufacturing experience, advanced technology. Products are widely used in logistics, stone processing, ports and terminals, and exported to foreign countries.



FEATURES

The engine adopts a turbocharged engine with low fuel consumption,which has good power performance and large torque reserve.

② The braking system adopts the mature products of the manufacture.

The brake is a disc brake,with fast heat dissipation, light weight ,simple structure and convenient adjustment.It has good high temperature resistance performance under high load and stable braking effect.

The gearbox adopts domestic brand gearbox,which has good driving performance and traction performance. It is easy to maintain, economical and applicable, the accessories have good versatility.

The operating system adopts the pilot valve to control the working system. Simple, convenient and comfortable operation. While reducing the labor intensity of the driver, the work efficiency is improved.

Hydraulic system, double pump confluence,small system flow, low power consumption, stable performance.

The electrical system is equipped with maintenance-free batteries. Flame retardant wire and sheath, electrical components.

The cab es luxurious with shock absorption, equipped with sunroof, heating and cooling air conditioner, wide field of vision and comfortable seat. With explosion-proof film, explosion-proof, heat insulation. Anti-glare, sound insulation.

The fork adopts high-strength, mature products of the manufacturer, which can double the service life.

Tire rim, no spoke steel rim, bear heavy load. Puncture-resistant high-strength tires.

Reinforced drive axle, high-strength heavy-duty planetary wheel-side reduction drive axle.The axle housing has higher strength and greater bearing capacity.With the stability and stability.



OVERALL




CAPACITY CHART




SPECIFICATIONS



Item Specification Unit FD460
General Rated Load kg 46000
Load center mm 1250
Dimensions Lift Height mm 4000
Fork Size(LxWxT) mm 2600*300*130
Fork Spread(outside)(Min/Max) mm 910/2830
Mast Tilt Angle(F/R) deg 6”/12”
Fork Overhang mm 1180
Lenght without forks mm 8170
Overall width mm 3600
Mast Lowered Height mm 5040
Overhead Guard Height mm 3820
Outer Tuming Radius mm 7730
Performance Speed(Unload/Load) Travel Km/h 30/26
Lifting Mm/s 300
Max gradeability(Load) % 20
Max drawbar pull(Load) KN 240
Setvice Weight kg 56000
Wheels&Tires Tire Front   4*18.00-25-28PR
Rear   2*16.00-25-28PR
Tread Front mm 2495
Rear mm 2880
Wheelbase mm 5500
Ground Clearance(Under mast) mm 400
Power
&
Transmission
Battery Voltage Capacity(5HR) VA/h 2*12/150
Engine Model   WP12G375E350
Manufacture   WeiChai
Rated Output Kw 276
Rated Torque N.m 1550
No Of Cyinder   6
Broe*Stroke mm 126*155
Dispiacement L 11.6
Transmissions Manufacture   ZL80
Stage FWD/RVS   4/4
  Operating Pressute Mpa 21



                        ※ The technical information may vary by the update policy, the changes will be without prior notice.
