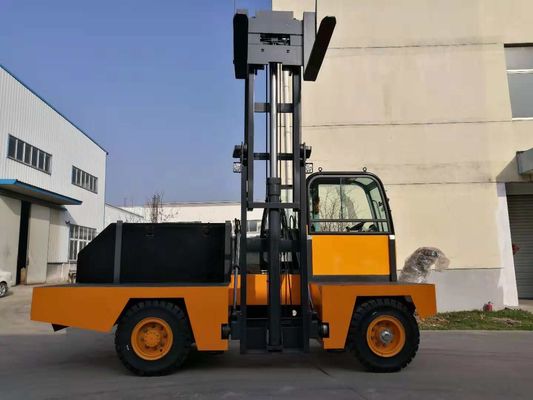

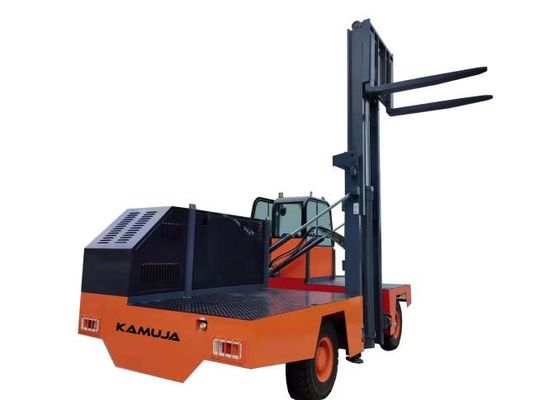

SF50C Side Loader Forklift 7t 5t Side Load Fork Truck With Motor Isuzu
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Min. Lifting Height | 3.6m / 3.55m |
|---|---|---|---|
| Fork Length | 1350mm/ 1200mm | Rated Loading Capacity | 7000kg / 5000kg |
| Engine | ISUZU | Warranty | 1 Year |
| High Light | 5t Side Loader Forklift,7t Side Loader Forklift,SF50C Side Load Fork Truck |
||
Product Description
Side Froklift 7t and 5t With Motor Isuzu
INTRODUCTION
The structure of the whole machine is compact and reasonable, the lifting capacity is strong, the hospitalization rate is low and with friendly maintainability. It is widely used in stations, ports, airports, factories, warehouses, etc. It is an efficient equipment for mechanized loading and unloading and short-distance transportation.
For the same product, we provide ISUZU engine options to meet the needs of different customers
CHARACTERISTIC
| Model | SF70C | SF50C | |||||
| Rated lifting quality (the center of gravity of the cargo is 0.6m away from the fork wall) | Kg | 7000 | 5000 | ||||
| Maximum Lifting Height | m | 3.6 | 3.55 | ||||
| Free lifting height of fork | m | 0.4 | 0.4 | ||||
| Maximum lifting speed (at full load) | m/s | ≥0.3 | ≥0.3 | ||||
| Running speed | Good road | Forward Gear I | km/h | 11 | 10.5 | ||
| Forward Gear II | km/h | 26 | 25.5 | ||||
| Back | km/h | 11 | 10.5 | ||||
| Fork inclination(up/down) | ° | 5/3 | 5/3 | ||||
| Minimum turning radius (outermost contour) | m | 4.8 | 4.55 | ||||
| Largest traction | KN | 39.8 | 28.4 | ||||
| Gradeability | 20% | 20% | |||||
| Minimum ground clearance (full load) | m | 0.18 | 0.18 | ||||
| Dimensions | Length | m | 5.3 | 4.712 | |||
| Width (excluding rear view mirror) | m | 2.2 | 2.065 | ||||
| Height | forks in the lowest position | m | 3.07 | 2.80 | |||
| forks in the highest position | m | 4.85 | 4.85 | ||||
| Axles distance | m | 3.05 | 2.7 | ||||
| Wheelbase | m | 1.886 | 1.715 | ||||
| Cargo platform height (full load) | m | 0.99 | 0.99 | ||||
| Cargo platform width (full load) | m | 1.405 | 1.22 | ||||
| Fork length | m | 1.35 | 1.2 | ||||
| Maximum distance between forks | m | 1.167 | 1.012 | ||||
| Battery | 6-QA-135 two only in series 24V | 6-QA-135 two only in series 24V | |||||
| Tire | Rear twin tires 9.00-16-14PR air pressure 7.5kg/cm2 | Rear twin tires 9.00-16-14PR air pressure 7.5kg/cm2 | |||||
| Machine in use weight | kg | 10500 | 8300 | ||||
| Engine | Model |
ISUZU 6BG1
|
|||||
| Rated power (kw/rpm) |
82.4/2000
|
||||||
| Maximum torque/speed (N.m/rpm) |
416.8/1500
|
||||||
