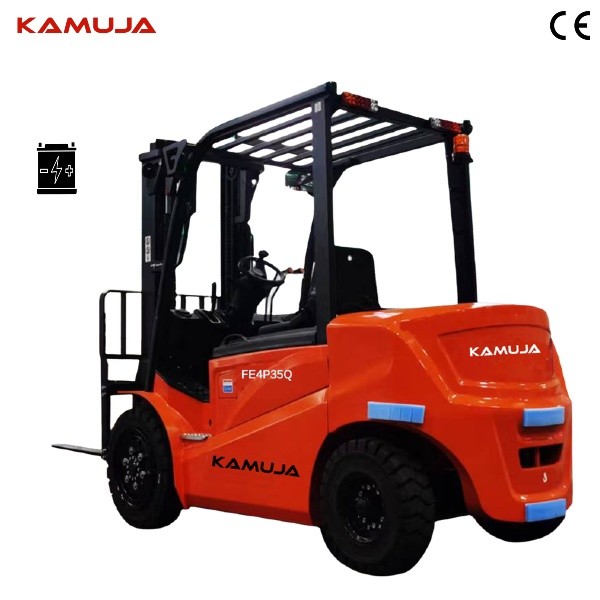

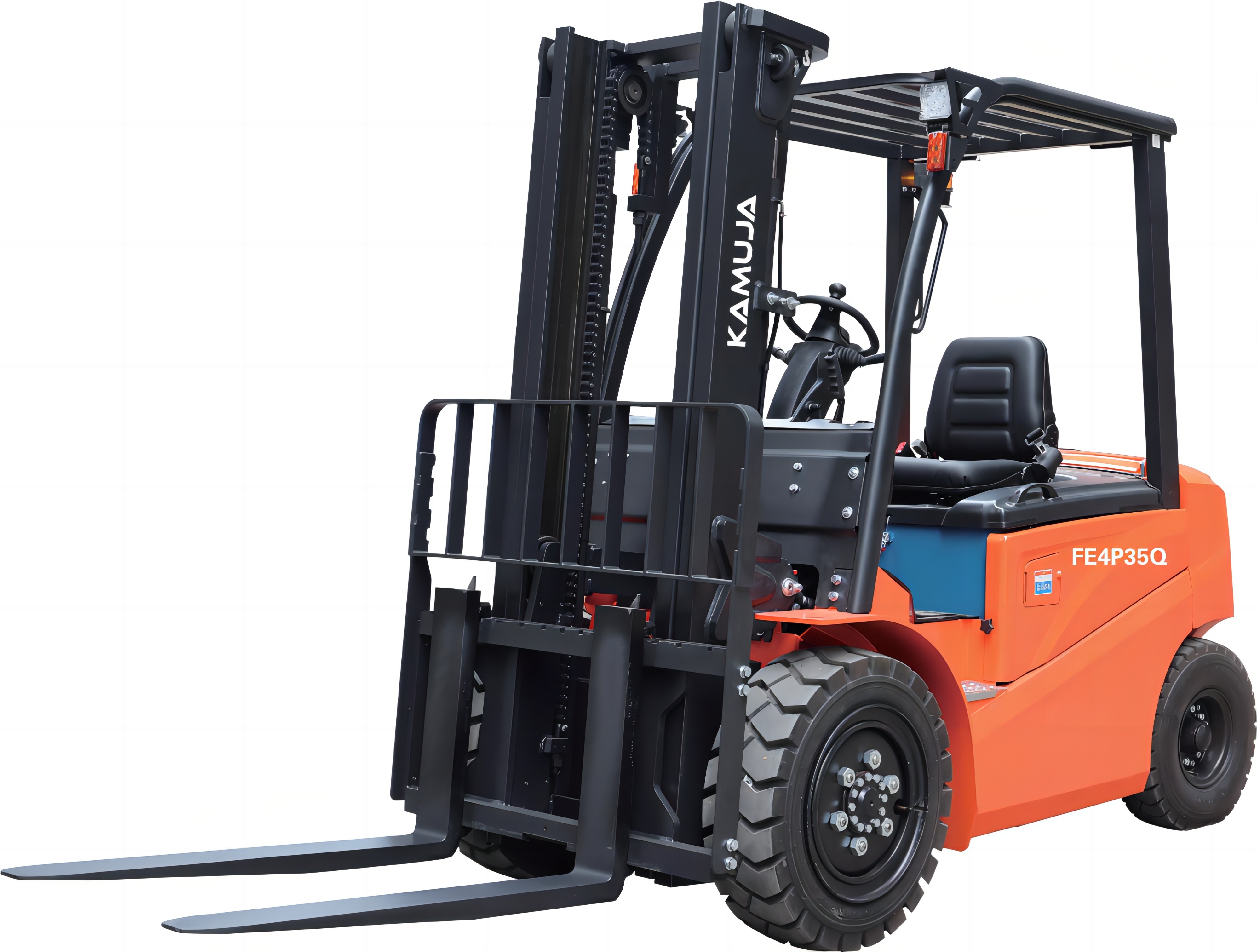

3.5T Electrical Forklift 3500kg Battery Operated Forklift Truck
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | Power Souce | AC Motor |
---|---|---|---|
Max. Lifting Height | Standard 3m , Options : 3.5~6.5M In Different Costs | Fork Length | 1070mm |
Rated Loading Capacity | 3500kg | Warranty | 1 Year Or 2000 Working Hours |
High Light | 3.5T Electrical Forklift,3500kg Electrical Forklift,3500kg Battery Operated Forklift Truck |
3500kg/3.5Ton Electrical (Lead Acid Baterry) Forklift
INTRODUCTION
Q Series electric balance fork is combined others existing series respective advantages to meet the purpose of medium and light weight working conditions, while bringing comfortable and efficient driving experience. Batteries are available in two options, lead-acid batteries and smart lithium batteries. The same body can be freely chosen.
The whole center of gravity is lowered, and the height of the top guard is lowered, which facilitates the operation of the vehicle in the environment of limited height.
FEATURES
① DRIVE AC MAINTENANCE-FREE
Drive motor adopts AC motor, maintenance-free, strong power; Conventional DC motors require frequent carbon brush replacement, while KAMUJA all-AC motors do not require carbon brush replacement; With speed sensing and temperature sensing, the protection function is complete, and the reliability and life are greatly improved.
② SIDE EXIT BATTERY DESIGN
The battery can be replaced with another forklift, allowing for easy 24 hour continuous operation.
③ LOW CENTER OF GRAVITY DESIGN
The traditional system uses a transverse fan-shaped drive axle, parallel arrangement and large transmission ratio. The battery is sunk at the bottom of the frame, the vehicle height is 2080mm, and the stability is good.
④ LOW NOISE, GROUND VIBRATION DESIGN
The hydraulic system adopts low noise gear pump and full hydraulic power steering. Low noise and comfortable operation.
Steering bridge shock absorption design: flexible connection is adopted to effectively protect the vehicle system and extend the service life of the vehicle.
⑤ ELECTROMAGNETIC BRAKING MAKES DRIVING AND PARKING SAFER AND EASIER
The vehicle adopts the car control mode, electromagnetic braking, so that the driver's operation is more comfortable.
Characteristic | 1.1 | Brand | KAMUJA | |
1.2 | Model | FE4P35Q | ||
1.3 |
Drive mode: electric (battery or power supply), diesel, gasoline, gas, manual |
Motor | ||
1.4 |
Operation mode: manual, walking, standing, riding, picking |
Mount type | ||
1.5 | Rated load capacity | Q(kg) | 3500 | |
1.6 | Load center distance | C(mm) | 500 | |
1.8 | Front overhang | X(mm) | 483 | |
1.9 | Wheel base | Y(mm) | 1800 | |
Weight | 2.1 | Implicit battery (see 6.5) when self-weight | kg | 4480 |
2.2 | Bridge load at full load, front/rear | kg | 7140/840 | |
2.3 | Bridge load when unloaded, front/back | kg | 1960/2520 | |
Chassis | 3.1 |
Tires: Solid rubber, super-elastomer, air tire, polyurethane tire |
Solid/pneumatic tire | |
3.2 | Front wheel specification | 28×9-15-14PR | ||
3.3 | Rear wheel specification | 6.50-10-10PR | ||
3.5 |
Number of wheels, front/rear wheels (×= drive wheels) |
2×/2 | ||
3.6 | Front wheel tread | b10(mm) | 1004 | |
3.7 | The rear wheel base | b11(mm) | 982 | |
Basic size | 4.1 | Gantry/fork tilt Angle, forward/back tilt | α/β(°) | 6/10 |
4.2 | Gantry retracting height | h1(mm) | 2185 | |
4.3 | Free lifting height | h2(mm) | 145 | |
4.4 | Lifting height | h3(mm) | 3000 | |
4.5 | Gantry development height | h4(mm) | 4079 | |
4.7 | Top guard height | h6(mm) | 2150 | |
4.8 | Seat height | h7(mm) | 1130 | |
4.9 | Traction pin height | h10(mm) | 580 | |
4.10 | Overall length | l1(mm) | 3818 | |
4.11 | Body length (without fork) | l2(mm) | 2748 | |
4.12 | Total width | b1(mm) | 1226 | |
4.13 | Fork size | s/e/l(mm) | 50/125/1070 | |
4.14 | Width of fork rack | b3(mm) | 1100 | |
4.15 | Ground clearance under the gantry | m1(mm) | 135 | |
4.16 | Ground clearance under the gantry | m2(mm) | 150 | |
4.17 |
Working channel width,1000X1200 pallets (1200 cross-fork placement) |
Ast(mm) | 4123 | |
4.18 |
Working channel width,800X1200 pallets (1200 placed along the fork) |
Ast(mm) | 4323 | |
4.19 | Radius of turning circle | Wa(mm) | 2440 | |
Performance parameter |
5.1 | Travel speed, full/empty | Km/h | 11/12 |
5.2 | Increase speed, full/empty | m/s | 0.25/0.33 | |
5.3 | Descent speed, full/empty | m/s | <0.6 | |
5.5 | Traction, full/empty S2 60 minutes | 3800/2800 | ||
5.7 | Maximum climb, S2 5 minutes full/no load | % | 13/15 | |
5.8 | Service brake | electromagnetic brake | ||
Electrical Paramete |
6.1 | Drive motor power S2 5 min | KW | 11 |
6.2 | Increase motor power S3 by 15% | KW | 12 | |
6.3 | Battery standard | DIN | ||
6.4 | Battery voltage/rated capacity K5 | Volts/amps per hour | Lead acid :80/400 | |
6.5 | Battery weight | kg | 280 | |
6.6 | Battery size, length/width/height | mm | 770/650/680 | |
Others | 7.1 | Drive control type | AC | |
7.2 | Work stress | Mpa | 17.5 | |
7.3 | The amount of oil | L/min | 36 | |
7.4 | Driver's ear noise level according to EN 12 053 | Decibel | 75 |
OPTIONAL MAST
Description |
Lift Height h3 mm |
Free Lift Height h2 mm |
Mast Stowed Height h1 mm |
Mast Extended Height h4 mm |
Tilt Angle Lean Forward/Backward α/β(⁰) |
Load Capacity (kg)C=500mm |
No Side-shift, Inflatable Single Wheel | ||||||
FE4P35Q | ||||||
ZT Standard Stage II Mast | 2000 | 140 | 1680 | 3079 | 6/10 | 3500 |
2500 | 140 | 1930 | 3579 | 6/10 | 3500 | |
3000 | 140 | 2180 | 4079 | 6/10 | 3500 | |
3300 | 140 | 2330 | 4379 | 6/10 | 3500 | |
3500 | 140 | 2430 | 4579 | 6/10 | 3500 | |
3600 | 140 | 2480 | 4679 | 6/10 | 3500 | |
3700 | 140 | 2530 | 4779 | 6/10 | 3250 | |
4000 | 140 | 2730 | 5079 | 6/6 | 3000 | |
4300 | 140 | 2880 | 5379 | 6/6 | 2800 | |
4500 | 140 | 2980 | 5579 | 6/6 | 2600 | |
5000 | 140 | 3230 | 6079 | 6/6 | 2200 | |
ZZ Wide View Full Free Stage II Mast |
2000 | 491 | 1570 | 3079 | 6/10 | 3500 |
2500 | 741 | 1820 | 3579 | 6/10 | 3500 | |
3000 | 991 | 2070 | 4079 | 6/10 | 3500 | |
3300 | 1141 | 2220 | 4379 | 6/10 | 3500 | |
3500 | 1241 | 2320 | 4579 | 6/10 | 3500 | |
3600 | 1291 | 2370 | 4679 | 6/10 | 3500 | |
3700 | 1341 | 2420 | 4779 | 6/6 | 3500 | |
4000 | 1541 | 2620 | 5079 | 6/6 | 3200 | |
DZ Wide View Full Free Stage III Mast |
4000 | 916 | 1970 | 5079 | 6/6 | 3200 |
4300 | 1041 | 2095 | 5379 | 6/6 | 3000 | |
4500 | 1091 | 2145 | 5579 | 6/6 | 3000 | |
4800 | 1191 | 2245 | 5879 | 6/6 | 2500 | |
5000 | 1334 | 2388 | 6079 | 6/6 | 2400 | |
5500 | 1568 | 2622 | 6579 | 3/6 | 1750 | |
6000 | 1801 | 2855 | 7079 | 3/6 | 1250 | |
6500 | 2034 | 3088 | 7579 | 3/3 | 900 |
