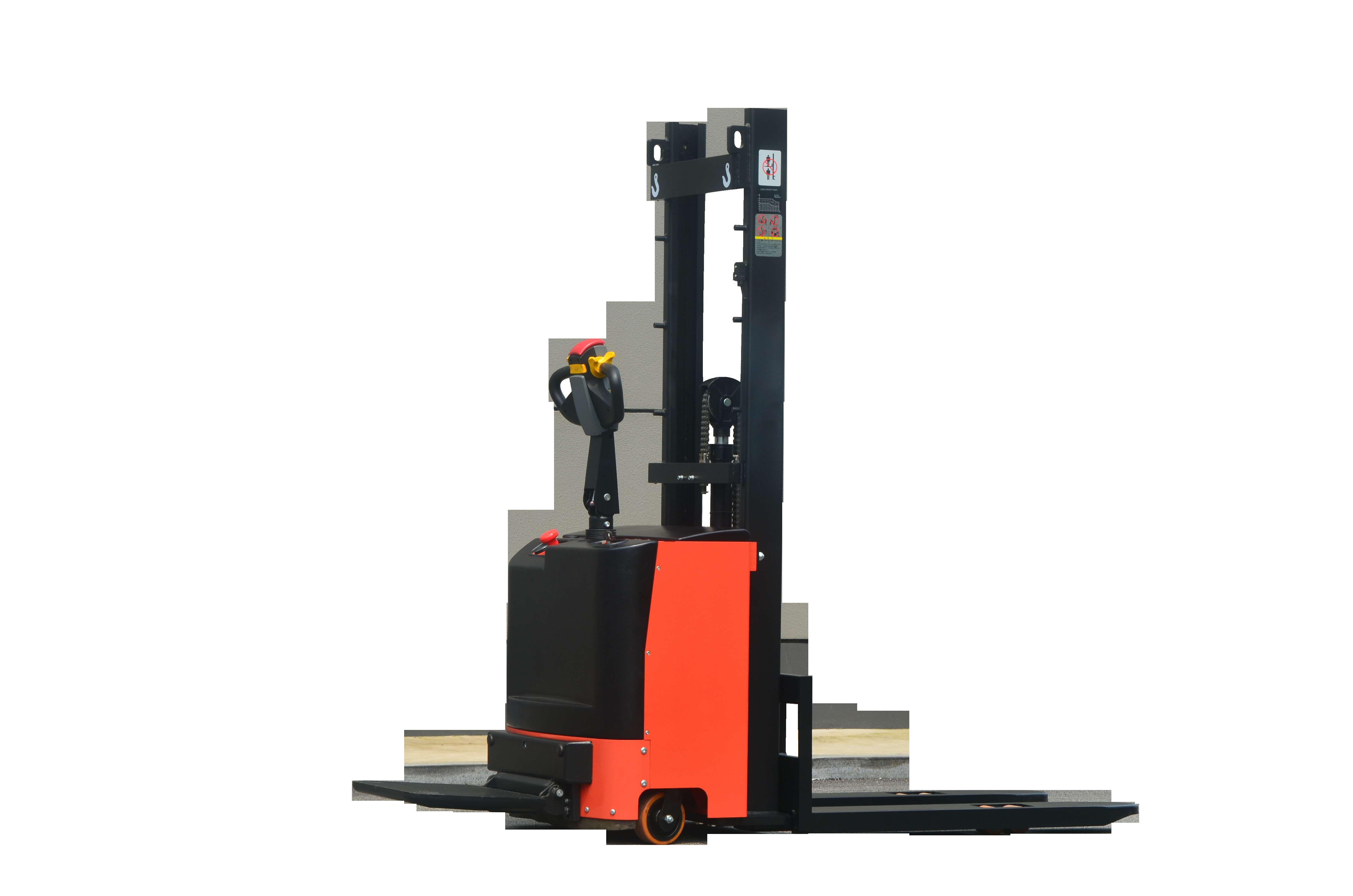

Standing On Electric Stacker 1-1.5t Lifting Up To 3.6m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | AC Motor | Max. Lifting Height | 1600~3600mm |
|---|---|---|---|
| Fork Width | 570/695 | Rated Loading Capacity | 1t/1000kg Or 1.5t/1500kg |
| Fork Size | 60/180/1150 S/e/l (mm) | Warranty | 1 Year |
| High Light | 1-1.5t Electric stacker,Standing on Electric stacker,3.6m Electric stacker |
||
Product Description
PRODUCT FEATURES
1.The imported AC controller has stepless speed regulation, reverse braking function and short circuit protection function；
2.The emergency reverse switch is on the control handle, when the vehicle is out of control, it can prevent the operator being injured;
3.The standard equipment is the lifting, when the fork rises to the top, the system automatically cuts off the uplink power supply, smooth parking;
4.The standard equipment is the high cargo speed limiting device. When the mast rises a short distance from the bottom, the driving speed is automatically reduced to improve the safety of the operation;
5.Operating handle is equipped with turtle, low-speed control is more accurate;
6. When the door frame falls to the bottom position, the driving speed is automatically accelerated and the work efficiency is improved；
| Characteristics | Model | CL1016 | CL1026 | CL1032 | CL1036 | CL1516 | CL1526 | CL1532 | CL1536 | ||
| Power unit | Electric | ||||||||||
| Operation | Standing on | ||||||||||
| Rated traction weight | Q (t) | 1 | 1.5 | ||||||||
| Load centre | c (mm) | 600 | |||||||||
| Axle centre to fork face | x (mm) | 675 | |||||||||
| Wheel base | y (mm) | 1190 | |||||||||
| Weights | Service weight with battery | kg | 818 | 887 | 917 | 927 | 827 | 897 | 927 | 937 | |
| Wheels/Tyres | Wheels type | polyurethane | |||||||||
| Driving wheel size | Φ×w(mm) | Φ250×80 | |||||||||
| Bearing wheel size | Φ×w(mm) | Φ80×70 | |||||||||
| additional wheels ( dimensions) |
Φ×w(mm) | Φ150×58 | |||||||||
| Wheels, number front/rear (x = driven) |
1,4/2 | ||||||||||
| Track width | b10 (mm) | 675 | |||||||||
| Track width | b11 (mm) | 390/515 | |||||||||
| Dimensions | Free lift | h1 (mm) | 2077 | 1877 | 2127 | 2327 | 2077 | 1877 | 2127 | 2327 | |
| Height of mast, extended | h3 (mm) | 1600 | 2600 | 3200 | 3600 | 1600 | 2600 | 3200 | 3600 | ||
| Height of seat/stand-on platform |
h4 (mm) | 2077 | 3137 | 3687 | 4087 | 2077 | 3137 | 3687 | 4087 | ||
| Overall height(With handle | h14 (mm) | 1040/1415 | |||||||||
| Lowered fork height | h13 (mm) | 86 | |||||||||
| Overall length | l1 (mm) | 1955 | |||||||||
| Length to fork face | l2 (mm) | 770 | 764 | 770 | 764 | ||||||
| Overall width | b1/ b2 (mm) |
808 | |||||||||
| Fork dimensions | s/e/l (mm) |
60/180/1150 | |||||||||
| Width of forks | b5 (mm) | 570/695 | |||||||||
| Min.Ground clearance | m2 (mm) | 26 | |||||||||
| Aisle width with pallet 1000 x 1200 across forks |
Ast (mm) | 2280 | |||||||||
| Aisle width with pallet 800 x 1200 along forks |
Ast (mm) | 2360 | |||||||||
| Min.Turning radius | Wa (mm) | 1495 | |||||||||
| Performance | Travel speed,laden/unladen |
(km/h) | 5.2/5.5 | ||||||||
| Lifting speed, with/without load |
(mm/s) | 100/135 | |||||||||
| Lowering speed, with/without load |
(mm/s) | 142/124 | 146/128 | ||||||||
| Maximum climbing ability, with/without load |
(%) | 6/8 | |||||||||
| Service brake | Electromagnetic | ||||||||||
| Drive | Drive motor, 60 minute rating |
(kW) | 1.5 | ||||||||
| Lift motor rating at S3 15% | (kW) | 2.2 | |||||||||
| Battery voltage/rated capacity |
(V/Ah) | 24/210 | |||||||||
| Battery weight (± 5%) | (kg) | 290 | |||||||||
| other | Type of drive control | AC | |||||||||
| Noise level at operator‘s ear |
(dB(A)) | ≤70 | |||||||||
