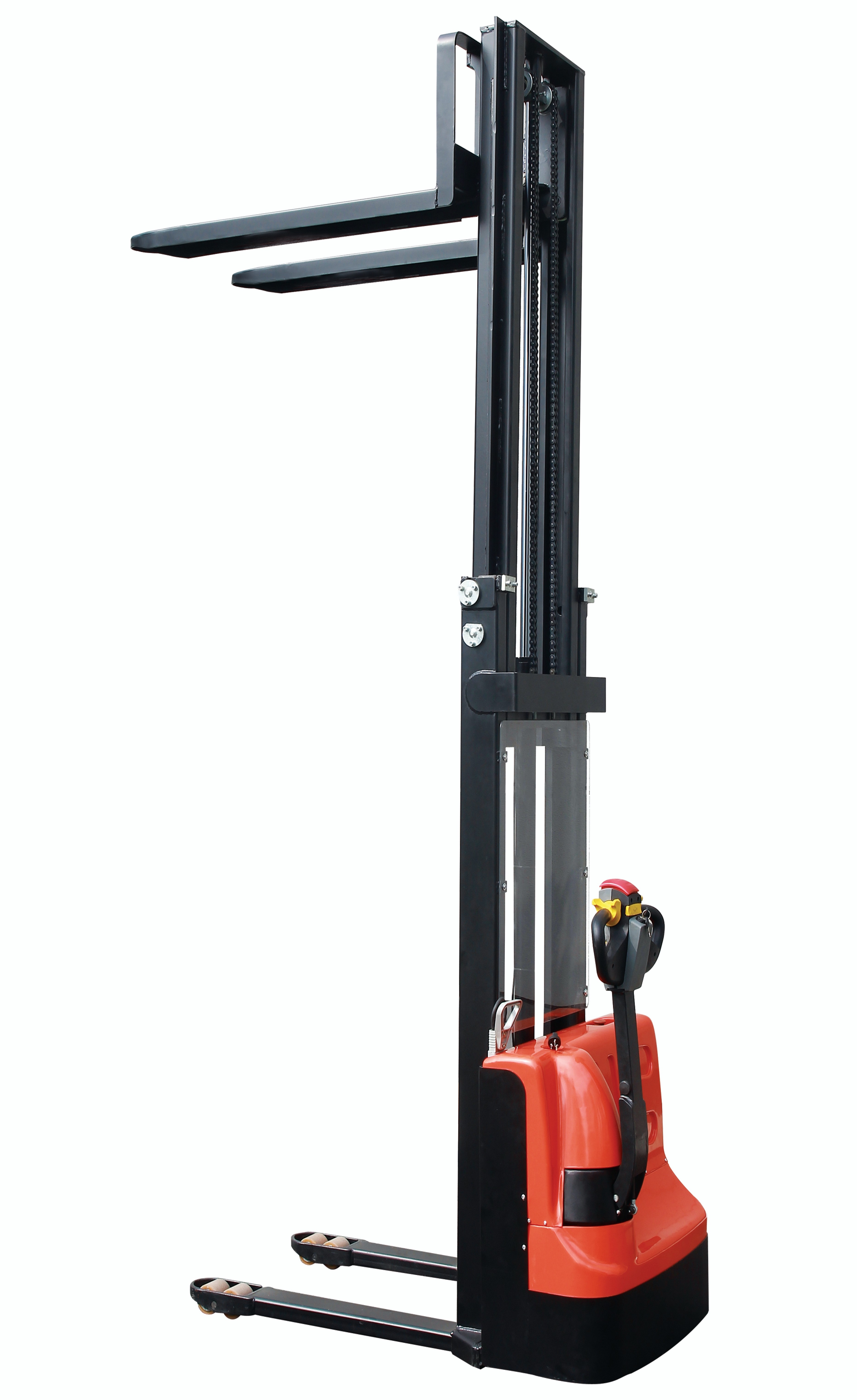

Pedestrian Electric Stacker Load 1t and 1.5t Lift up to 3m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPower Souce | DC 24V/100AH Maintenance-free Battery | Max. Lifting Height | 1.6m And 3m |
---|---|---|---|
Fork Width | 570/695mm | Rated Loading Capacity | 1t And 1.5t |
Fork Size | 60/160/1150 S/e/l(mm) | Operation | Pedestrian |
High Light | Limited Warehouse Space Electric Stacker,Compact Pedestrian Electric Stacker,Warehouse Pedestrian Electric Stacker |
PRODUCT FEATURES
1.Reinforcing ribs are set between the internal and external masts to ensure that the mast will not tilt forward when the load is raised, and the vehicle stability is better;
2.German original imported waterproof micro switch, adapt to cold, humid ,dusty and other harsh environments;
3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate;
4.The operation handle is equipped with a high quality air pressure spring. Releasing the handle will automatically reset slowly;
5.The operation handle is extended for walking vehicles, in line with ergonomic principles, comfortable operation;
6.Side drive design, effectively reduce the operation channel, small turn radius, better vision, suitable for narrow space operations;
7.Maintenance-free batteries do not need to be replaced with other tools, it is more convenient;
Characteristics | |||||||||
1.0 | Model | CL1530JB | CL1030J | CL1016D | |||||
1.02 | Power unit | Electric | |||||||
1.03 | Operation | Pedestrian | |||||||
1.04 | Rated traction weight | Q(kg) | 1500.0 | 1000 | |||||
1.05 | oad centre | c(mm | 600 | ||||||
1.06 | Ayle centre to fork fac | x(mm) | 780 | ||||||
1.07 | Wheel base | y(mm) | 1225 | 1230 | 1100 | ||||
1.08 | Service weight with battery | kg | 504 | 465 | 406 | ||||
Wheels/Tyres | |||||||||
2.01 | Wheels typ | PU | |||||||
2.02 | Driving wheel size | φxw(mm) | φ210×70 | ||||||
2.03 | Bearing wheel size | φxw(mm) | φ80×70 | ||||||
2.04 | additional wheels(dimensions | φ×w(mm) | φ115×55 | φ150×58 | |||||
2.05 | Wheels,number front/rear (x =driven | 1x+1/4 | |||||||
2.06 | Track width | b10(mm) | 522 | 516 | |||||
2.07 | Track width | b11(mm) | 410/535 | ||||||
Dimensions | |||||||||
3.01 | Free lift | h1(mm) | 1995 | 1995 | 1990 | ||||
3.02 | Lift | h2 (mm) | 0 | ||||||
3.03 | Height of mast,extended | h3(mm) | 3000 | 3000 | 1600 | ||||
3.04 | Height of seat/stand-on platform | h4(mm) | 3452 | 3452 | 2060 | ||||
3.05 | Overall height(With handle | h14 (mm) | 700/1225 | 870/1200 | |||||
3.06 | Lowered fork height | h13 (mm) | 86 | ||||||
3.07 | Overall length | I1(mm) | 1740 | 1755 | 1632 | ||||
3.08 | Length to fork face | l2(mm) | 590 | 605 | 482 | ||||
3.09 | Overall width | b1/b2 (mm) |
795 | ||||||
3.10 | Fork dimensions | s/e/l(mm) | 60/160/1150 | ||||||
3.11 | Width of forks | b5(mm | 570/695 | ||||||
3.12 | Min Ground clearance | m2 (mm) | 26 | ||||||
3.13 | Aisle width with pallet 1000x 1200 across forks | Ast (mm) | 2245 | 2245 | 2120 | ||||
3.14 | Aisle width with pallet 800x1200 along forks | Ast (mm) | 2185 | 2185 | 2060 | ||||
3.15 | Min Turning radiu | Na(mm | 1405 | 1405 | 1280 | ||||
Performance | |||||||||
4.01 | Travel speed,laden/unladen | (km/h) | 4.0/4.2 | ||||||
4.02 | Lifting speed,with/without load | mm/s) | 92/136 | ||||||
4.03 | Lowering speed,with/without load | (mm/s) | 112/98 | ||||||
4.04 | Maximum climbing ability,with/without load | (%) | 3/10 | ||||||
4.05 | Service brake | Electromagnetic | |||||||
Drive | |||||||||
5.01 | Drive motor.60 minute ratin | (kW) | 0.75 | ||||||
5.02 | Lift motor rating at S3 15% | (kW) | 2.2 | ||||||
5.03 | Battery voltage/rated capacity | (V/Ah | 2×12/100 | ||||||
5.04 | Battery weight (±5%) | (kg) | 2×27 | ||||||
Other | |||||||||
6.01 | Type of drive control | DC | |||||||
6.02 | Noise level at operator‘s ear | (dB(A)) | ≤70 |
