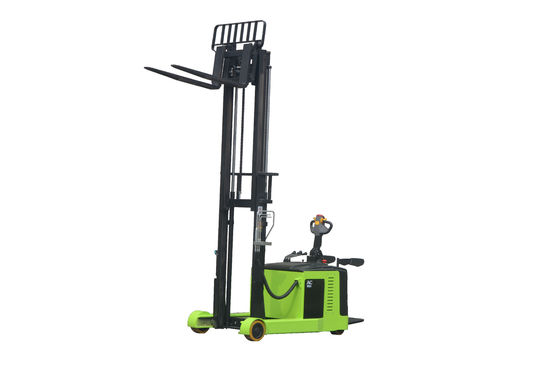

Electric Reach Stacker load 1.3t and 2t up to 6m with narrow width
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | AC Motor+electronic Steering | Max. Lifting Height | 6m |
|---|---|---|---|
| Fork Width | 240-715 Or 200-740 Mm | Rated Loading Capacity | 1.3t And 2t |
| Fork Size | 40/120/1070 Or 35/100/950(1150) | Operation | Standing On |
| High Light | Versatile Electric Reach Stacker,Smooth Handling Electric Reach Stacker |
||
Product Description
PRODUCT FEATURES
1.Imported AC controller, Imported vertical gearbox;
2.With self-diagnostic function, the handheld unit and the controller can display fault code, and quickly accurately troubleshoot;
3.You can choose free lifting configuration...for vehicles to work in container or other places have restriction on height;
4.The front wheel uses large wheel design, the vehicle chassis is elevated, the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis, making the vehicle have strong ability to overcome obstacles, stay stable and flexible operation；
5.Standard the lifting limit function, when the fork is raised to the item, the system automatically cuts off the uplink power supply, smooth parking, effectively prevents the occurrence of "tweak storm" accidents.
| Characteristics | ||||||||||
| 1.01 | Model | Q2030GA | Q2060GA | Q1516D | Q1530D | Q1545D | ||||
| 1.02 | Power unit | Electric | Electric | |||||||
| 1.03 | Operation | Standing on | Standing on | |||||||
| 1.04 | Rated traction weight | Q(kg | 2000 | 1300 | ||||||
| 1.05 | Load centre | c(mm) | 500 | 500 | ||||||
| 1.06 | Axle centre to fork face | x(mm | 324 | 367 | 356 | 368 | ||||
| 1.07 | Wheel base | y(mm) | 1554 | 1354 | ||||||
| 1.08 | Service weight with battery | kg | 2750 | 3020 | 1745 | 2010 | 2210 | |||
| Wheels/Tyres | ||||||||||
| 2.01 | Wheels type | PU | PU | |||||||
| 2.02 | Driving wheel size | φx w(mm | φ250×127(PU) | φ230×75(PU) | ||||||
| 2.03 | Bearing wheel size | φxw(mm | φ250×120 | φ210×70 | ||||||
| 2.04 | additional wheels(dimensions | φxw(mm) | φ149×60 | φ149×60 | ||||||
| 2.05 | Wheels,number front/rear (x =driven |
1,4/2 | 1,4/2 | |||||||
| 2.06 | Track width | b10(mm) | 665 | 620 | ||||||
| 2.07 | Track width | b11(mm) | 976 | 960 | ||||||
| Dimensions | ||||||||||
| 3.01 | Mast/fork carriage tilt,forward/backward |
a/b(°) | 3/5 | 3/5 | ||||||
| 3.02 | Height of mast,lowered | h1(mm | 1995 | 2690 | 2155 | 2130 | 2095 | |||
| 3.03 | Free lift | h2 (mm | 0 | 1805 | 0 | 0 | 1067 | |||
| 3.04 | Lift | h3 (mm) | 3000 | 6000 | 1600 | 3000 | 4500 | |||
| 3.05 | Height of mast,extended | h4(mm | 3860 | 6920 | 2535 | 4040 | 5512 | |||
| 3.06 | Overall height(With handle | n14(mm) | 1075/1502 | 1050/1450 | ||||||
| 3.07 | Lowered fork height | h13 (mm) | 40 | 50 | ||||||
| 3.08 | Overall length | I1(mm | 2530 | 2252(950) | ||||||
| 3.09 | Length to fork face | I2(mm | 1460 | 1265 | ||||||
| 3.10 | Overall width | b1/b2(mm | 940/1100 | 896/1042 | ||||||
| 3.11 | Fork dimensions | s/e/l(mm) | 40/120/1070 | 35/100/950(1150) | ||||||
| 3.12 | Nidth of forks | b5(mm) | 240-715 | 200-740 | ||||||
| 3.13 | Distance Between Suporrts arms/loading surface: |
b4(mm | 746 | 786 | ||||||
| 3.14 | Reach distance | 14(mm) | 500 | 500 | ||||||
| 3.15 | Min.Ground clearance | n2(mm) | 48 | 44 | ||||||
| 3.16 | Aisle width with pallet 1000 x 1200 across forks |
Ast(mm | 2900 | 2750 | 2790 | 2750 | ||||
| 3.17 | Aisle width with pallet 800x 1200 along forks |
Ast(mm) | 2960 | 2800 | 2840 | 2800 | ||||
| 3.18 | Min Turning radius | Wa(mm) | 1800 | 1670 | ||||||
| 3.19 | Length across wheel arms | I7(mm) | 1767 | |||||||
| Performance | ||||||||||
| 4.01 | Travel speed,laden/unladen | (km/h | 5.2/5.5 | 5.2/5.5 | ||||||
| 4.02 | Lifting speed,with/without load |
mm/s | 90/120 | 130/180 | 100/130 | 95/130 | 130/190 | |||
| 4.03 | Lowering speed,with/without load |
(mm/s | 120/130 | 160/210 | 100/100 | 100/100 | 130/120 | |||
| 4.04 | Maximum climbing ability,with/without load |
(%) | 6/8 | 6/8 | ||||||
| 4.05 | Service brake | Electromagnetic | Electromagnetic | |||||||
| Drive | ||||||||||
| 5.01 | Drive motor,60 minute rating | (kW) | 2.5 | 1.5 | ||||||
| 5.02 | Lift motor rating at S315% | (kW) | 4.5 | 3 | ||||||
| 5.03 | Battery voltage/rated capacity | (V/Ah) | 24/280 | 24/270 | ||||||
| 5.04 | Battery weight (±5%) | (kg) | 275 | 260 | ||||||
| Other | ||||||||||
| 6.01 | Type of drive control | AC | AC | |||||||
| 6.02 | Noise level at operator's ear | dB(A) | ≤75 | ≤70 | ||||||
