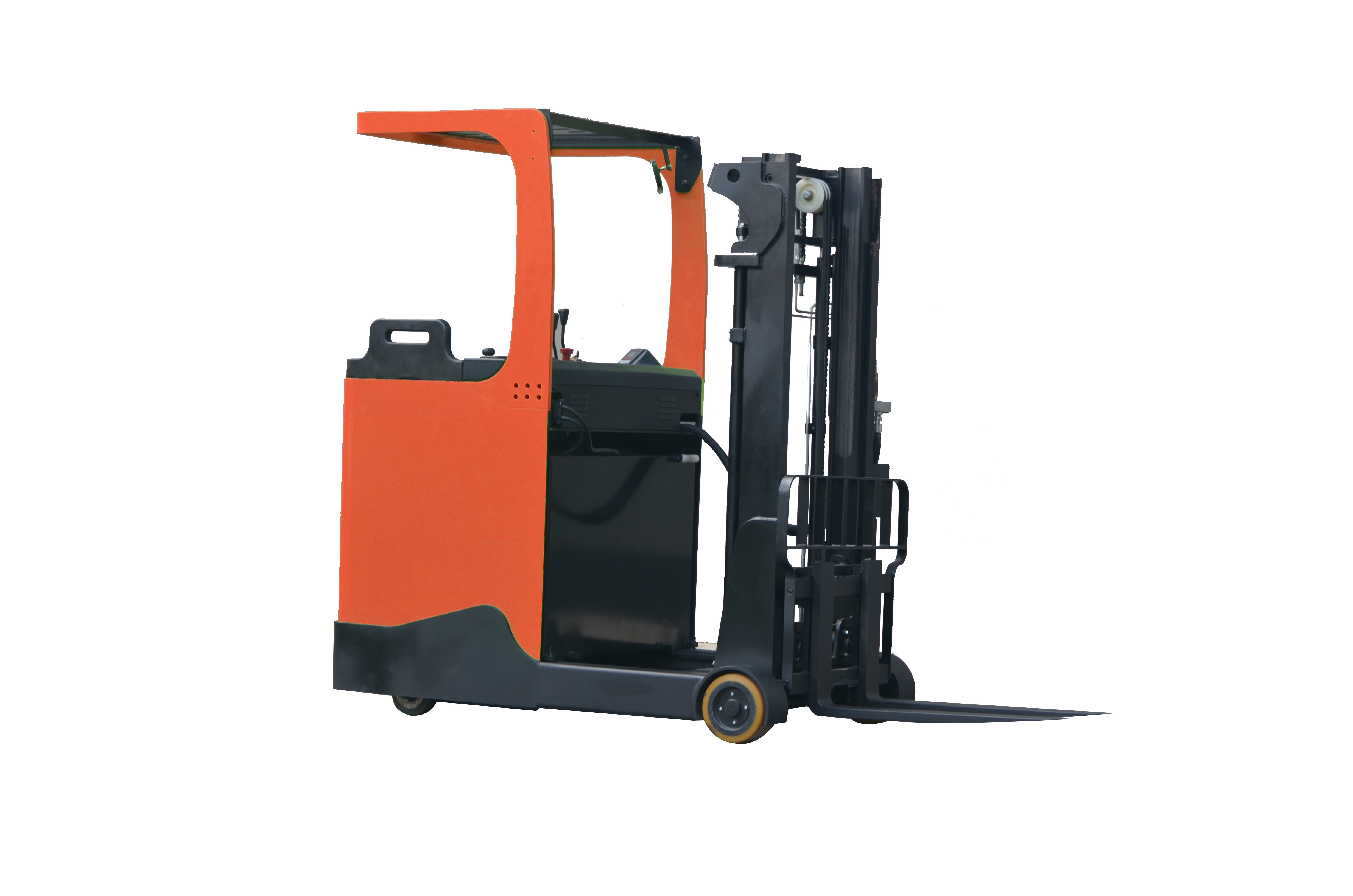

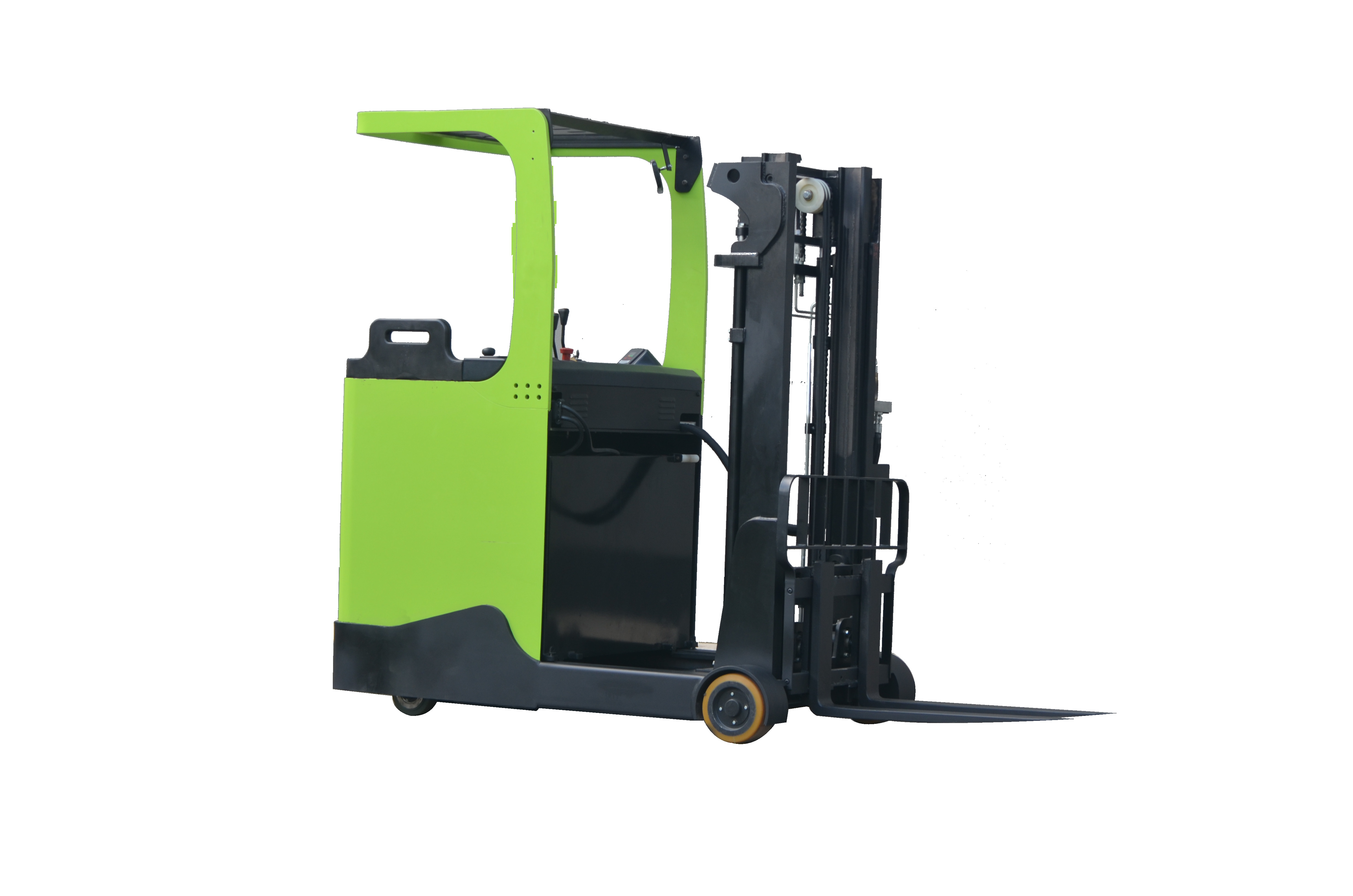

Seated On Electric Reach Truck 2T Load 3m Lift

Place of Origin China
Brand Name KAMUJA
Model Number Seated on
Minimum Order Quantity 1 UNIT
Price USD 13K-14K/unit
Packaging Details 4 UNIT/40HQ
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Power Souce AC Motor 48v/420AH Max. Lifting Height 3000mm
Fork Width 825mm Rated Loading Capacity 2ton
Fork Size 40/120/1070 S/e/l (mm) Operation Seated-on
High Light

Seated on Electric Reach truck


Hydraulic Electric Reach Truck


Explosion Proof Electric Reach Truck

Leave a Message
Product Description



1.Adopt high quality channel steel to improve the service life and excellent stability of the frame;

2.Wide and comfortable cab and adjustable seat, embodies the humanized design of the car;

3.Adopt double electric control, the lifting of goods and the driving of forklift can achieve stepless speed regulation;

4.Wide and strong forklift chassis, very strength bearing wheel design, to ensure sufficient stability of the vehicle;

5.High speed limit setting, when the fork is lifted to a certain height, the vehicle speed will automatically decrease, to ensure the safety of high-altitude operation;

6.Electronic power steering system, make the steering flexible and light; Automatic deceleration function at corners, safer driving;

7.The front two wheels adopt hydraulic braking, and the braking of the driving motor is controlled by the electric control system, which makes the start, moving and braking of the forklift more effective

8.Hydraulic system explosion-proof design, even if the pipe burst, the door frame will not drop quickly, improve safety;

9.The hinged design of seat cover and back cover facilitates the detection, maintenance and replacement of components;

10.The controller has self-diagnosis function, the fault code can be displayed after the hand-held unit is connected with the controller, and the fault can be checked quickly and accurately;



Characteristics Model   QGB20S
Power unit   electric
Operation   Seated-on
Rated traction weight Q (t) 2.0
Load centre c (mm) 500
Axle centre to fork face x (mm) 372
Wheel base y (mm) 1500
Weights Service weight with battery kg 2880
Axle loading , Pallet fork forward,unladen front/rear kg 1580/ 1300
Axle loading , Pallet fork back,unladen front/rear kg 1790/ 1090
Axle loading , Pallet fork forward,laden front/rear kg 680/4300
Axle loading , Pallet fork back,laden front/rear kg 1740/3240
Wheels/Tyres Wheels type   PU
Driving wheel size Φ×w(mm) Φ343×130
Bearing wheel size Φ×w(mm) Φ310×135
Wheels, number front/rear (x = driven)   12
Track width b11 (mm) 1165
Dimensions Mast/fork carriage tilt, forward/backward a/b (°) 3/5
Height of mast, lowered h1 (mm) 2190
Lift h3 (mm) 3000
Height of mast, extended h4 (mm) 3880
Height of overhead guard (cabin) h6 (mm) 2380
Fork Height, Lowered h13 (mm) 45
Overall length l1 (mm) 2508
Length to fork face l2 (mm) 1438
Overall width b1/ b2 (mm) 1372/ 1270
Fork dimensions s/e/l (mm) 40/ 120/ 1070
Width of forks b5 (mm) 825
Distance Between Suporrts arms/loading surfaces b4( mm) 922
Reach distance l4(mm) 570
Min.Ground clearance m2 (mm) 72
Aisle width with pallet 1000 x 1200 across forks Ast (mm) 2900
Aisle width with pallet 800 x 1200 along forks Ast (mm) 2950
Min.Turning radius Wa (mm) 1830
length across wheel arms l7 (mm) 1987
Performance Travel speed,laden/unladen (km/h) 9/9.5
  Lifting speed, with/without load (mm/s) 240/305
Lowering speed, with/without load (mm/s) 290/300
Reach speed,laden/unladen (mm/s) 72/70
Maximum climbing ability, with/without load (%) 10/ 15
Drive Drive motor, 60 minute rating (kW) 6
Lift motor rating at S3 15% (kW) 11
Battery voltage/rated capacity (V/Ah) 48/420
Battery weight (± 5%) (kg) 700
Others Type of drive control   AC
Noise level at operator‘s ear (dB(A)) ≤75
