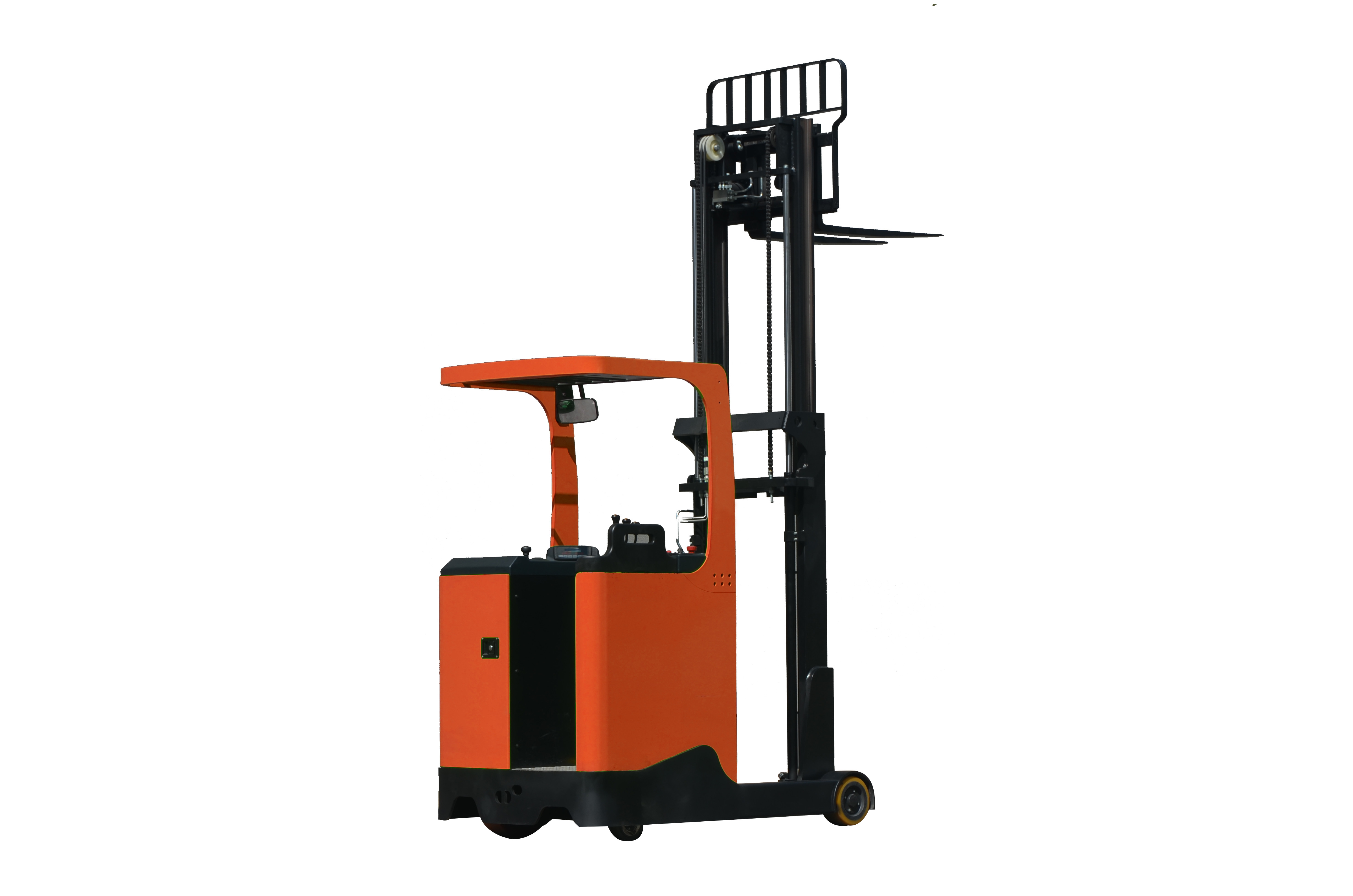

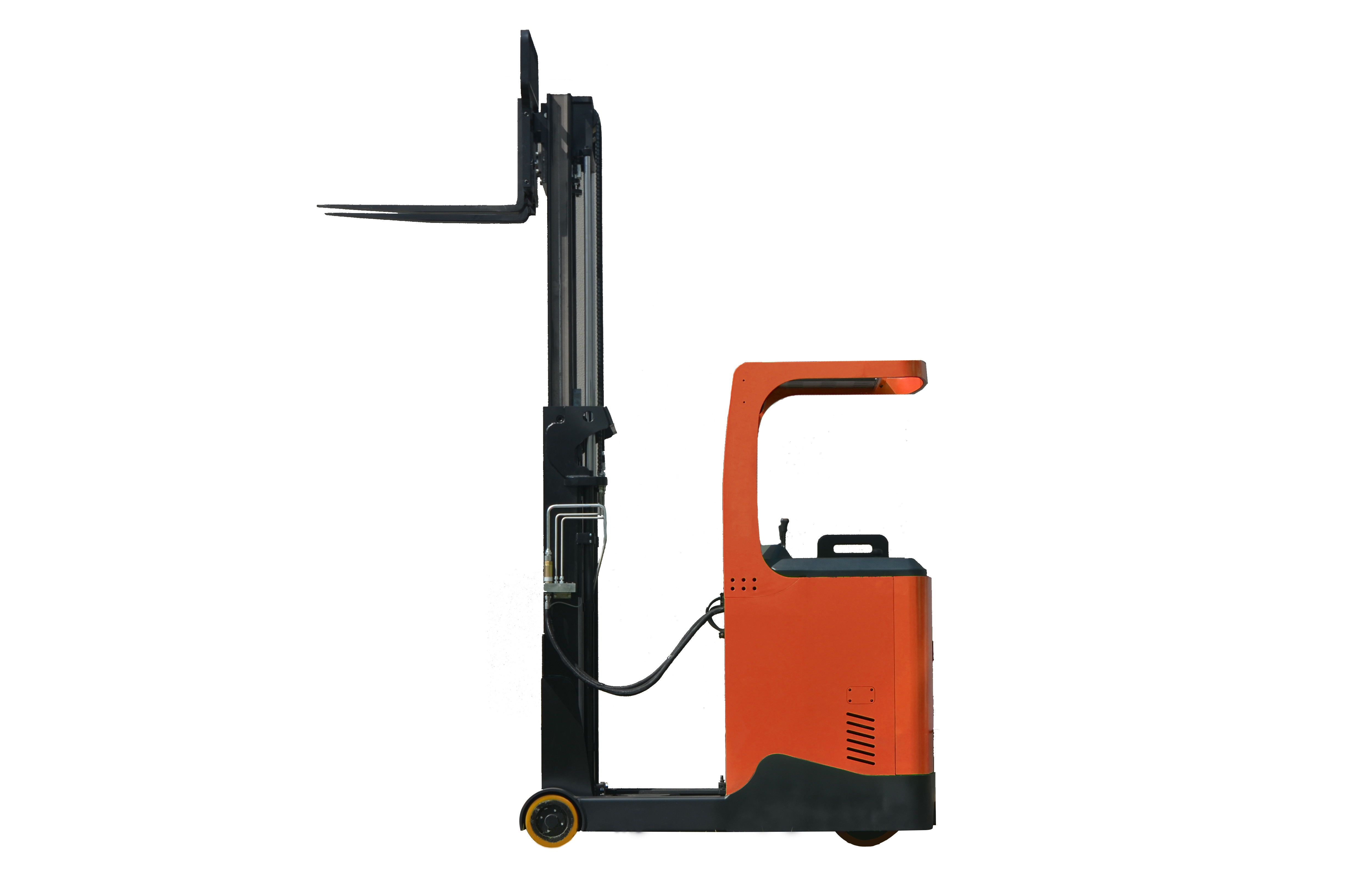

Standing On Electric Reach Truck 1.5t load lift up to 7.2m

Place of Origin China
Brand Name KAMUJA
Model Number Standing on
Minimum Order Quantity 1 UNIT
Price USD 11K~14K / unit
Packaging Details 4 UNIT/40HQ
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
High Light

Standing on Electric Reach truck


Warehouse Electric Reach Truck

Leave a Message
Product Description



1.Controller has self-diagnostic function, the handheld unit can be displayed after the controller is coupled to the fault code, and quickly accurately troubleshoot;

2.The front wheel uses a large wheel design, the vehicle chassis is lifted, the secondary wheel on both sides of the drive wheel provides a safe aid for the chassis, making the vehicle has ability to overcome obstacles, stable and flexible;

3.The pedal switch can control the operation of the vehicle, and after leave the pedal switch is stepped on, it can operate the vehicle, and vice versa, the vehicle stops running, the design improves the safety of the whole vehicle;

4.The side of the driving position is equipped with a backrest, and the upper cove is equipped with a hand cushion for staff to support their hands. these two design greatly improve the driver's operation comfort;

5.Integrated high-quality forging forks, set the preceding tilting function, hook design, convenient to adjust the high quality forged fork in one piece equipped with a forward and back tilt function; hook design is convenient to adjust the width to left and right to ensure the accurate stack of the operator;



Characteristics Model   Q1530GB Q1545GB Q1572GB
Power unit   electric electric electric
Operation   Standing on Standing on Standing on
Rated traction weight Q (t) 1.5 1.5 1.5
Load centre c (mm) 500 500 500
Axle centre to fork face x (mm) 395 395 395
Wheel base y (mm) 1460 1460 1460
Weights Service weight with battery kg 2850 3390 3740
Wheels/Tyres Wheels type   polyurethane polyurethane polyurethane
Driving wheel size Φ×w(mm) Φ343×130 Φ343×130 Φ343×130
Bearing wheel size Φ×w(mm) Φ250×120 Φ250×120 Φ250×120
additional wheels(dimensions) Φ×w(mm) Φ178×73 Φ178×73 Φ178×73
Wheels, number front/rear (x =
  1,2/2 1,2/2 1,2/2
Track width b10 (mm) 660 660 660
Track width b11 (mm) 1038 1038 1038
Dimensions Mast/fork carriage tilt,
a/b (°) 3/5 3/5 3/5
Height of mast, lowered h1 (mm) 2044 2165 3065
Free lift h2 (mm) 0 1320 2220
Lift h3 (mm) 3000 4500 7200
Height of mast, extended h4 (mm) 3840 5340 8040
Height of overhead guard (cabin) h6 (mm) 2240 2240 2240
Fork Height,Lowered h13 (mm) 35 35 35
Overall length l1 (mm) 2350 2350 2350
Length to fork face l2 (mm) 1400 1400 1400
Overall width b1/
b2 (mm)
1168/1158 1168/1158 1168/1158
Fork dimensions s/e/l (mm) 35/100/950 35/100/950 35/100/950
Width of forks b5 (mm) 200-775 200-775 200-775
Distance Between Suporrts
arms/loading surfaces
b4(mm) 808 808 808
Reach distance l4(mm) 570 570 570
Min.Ground clearance m2 (mm) 56 56 56
Aisle width with pallet 1000 x 1200
across forks
Ast (mm) 2890 2900 2900
Aisle width with pallet 800 x 1200
along forks
Ast (mm) 2940 2950 2950
  Min.Turning radius Wa (mm) 1830 1830 1830
length across wheel arms l7 (mm) 1940 1940 1940
Performance Travel speed,laden/unladen (km/h) 8.5/9 8.5/9 8.5/9
Lifting speed, with/without load (mm/s) 150/480 120/220 120/220
Lowering speed, with/without load (mm/s) 300/340 220/190 220/190
Reach speed,laden/unladen (mm/s) 83/81 83/81 83/81
Maximum climbing ability,
with/without load
(%) 10/15 10/15 10/15
Service brake   electromagnetic electromagnetic electromagnetic
Drive Drive motor, 60 minute rating (kW) 6 6 6
Lift motor rating at S3 15% (kW) 7.7 7.7 7.7
Battery voltage/rated capacity (V/Ah) 48/420 48/420 48/420
Battery weight (± 5%) (kg) 700 700 700
Others Type of drive control   AC AC AC
Noise level at operator‘s ear (dB(A)) ≤70 ≤70 ≤70
