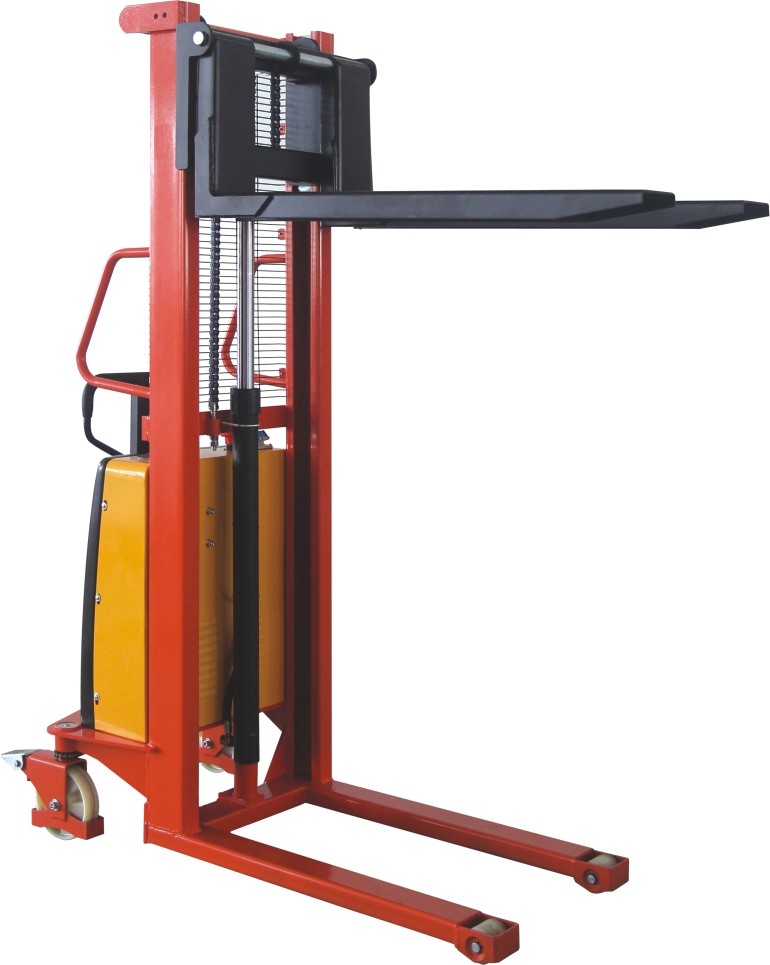

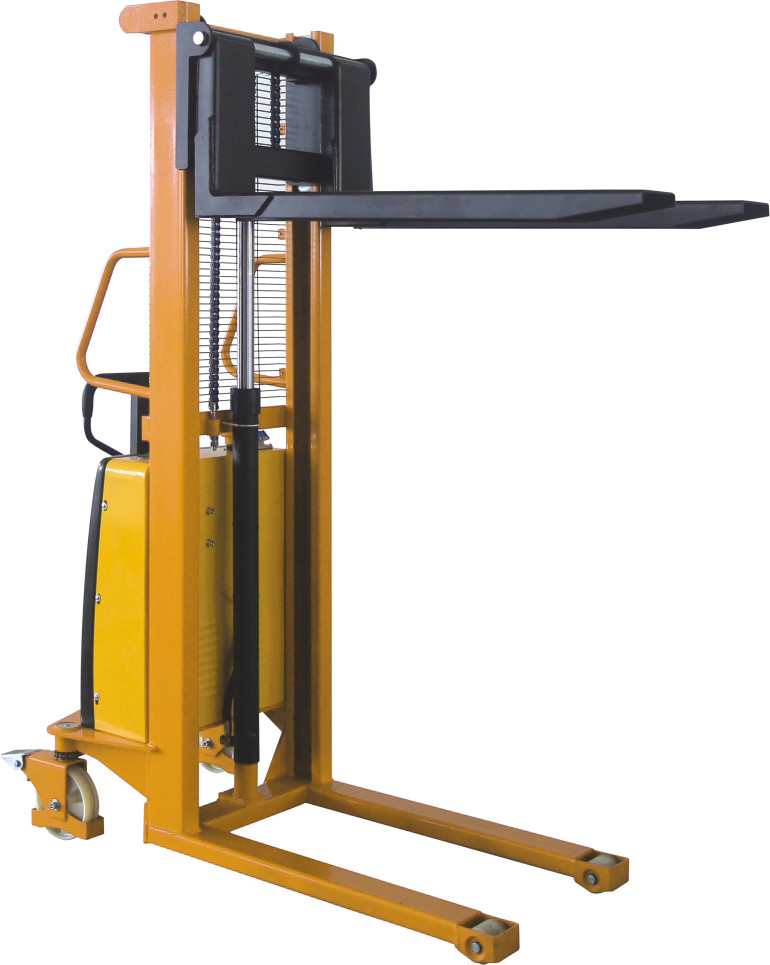

Semi Electric Stacker, 1t/1.5t/2ton load , high-strength mast extended 3m

  • Semi Electric Stacker, 1t/1.5t/2ton load , high-strength mast extended 3m
  • Semi Electric Stacker, 1t/1.5t/2ton load , high-strength mast extended 3m
  • Semi Electric Stacker, 1t/1.5t/2ton load , high-strength mast extended 3m
Place of Origin China
Brand Name KAMUJA
Model Number Semi-electric Stacker
Minimum Order Quantity 20
Price USD 800~1100USD/Unit
Packaging Details 45 units/40HQ
Delivery Time 30 DAYS
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Souce Electric Max. Lifting Height 3m
Fork Width 550/640 Mm Rated Loading Capacity 1t & 1.5t &2t
Fork Size 150/900 E/l (mm) Operation Handle
High Light

Semi electric Stacker

,

Hydraulic Semi Electric Stacker
Leave a Message
Product Description

PRODUCT FEATURES



1.The hydraulic power unit has the advantages of compact structure, sensitive response and strong power, which can adjust the lifting speed according to the needs of users. The main components are international well-known brands, and the system is stable and long service life;

2.Imported motor relay is equipped with the whole series, with fast action, strong pulling ability, stable operation and long service life;

3.The back of the forks is provided with adjusting bolts. When the forks are slightly deformed due to years of use or other factors, the two forks can be adjusted to the horizontal state by adjusting bolts;

4.The brake directly acts on the universal wheel, and the foot brake operation immediately plays the role of braking, immediately play the role of brake brake, brake light and fast;

5.Reinforcing ribs are set between the internal and external masts to ensure that the mast will not tilt forward when the load is raised, and the vehicle stability is better;





Characteristics Model   SPN1016 SPN1020 SPN1025 SPN1030 SPN1035 SPN1516 SPN1520 SPN1525 SPN1530 SPN1535 SPN2016 SPN2020
Power unit   Electric
Operation   Handle
Rated traction

weight		 Q (t) 1 1.5 2
Load centre c (mm) 450
Axle centre to

fork face		 x (mm) 705 700 705 700 705 700
Wheel base y (mm) 1195
Weights Service weight

with battery		 kg 315 365 374 380 405 320 374 385 395 415 325 380
Wheels/Tyres Wheels type   nylon/polyurethane
Driving wheel

size		 Φ×w(mm) Φ180×50
Bearing wheel

size		 Φ×w(mm) Φ74×70
additional

wheels

( dimensions)		 Φ×w(mm) Φ180×50
Wheels,

number

front/rear (x =

driven)		   1,1/2
Track width b10 (mm) 648
Track width b11 (mm) 390/490 490 390/490 490 390/490
Dimensions Height of mast,

lowered		 h1 (mm) 2077 1577 1827 2077 2327 2077 1577 1827 2077 2327 2077 1577
Free lift h2 (mm) 0
Lift h3 (mm) 1600 2000 2500 3000 3500 1600 2000 2500 3000 3500 1600 2000
Height of mast,

extended		 h4 (mm) 2077 2567 3067 3567 4067 2077 2567 3067 3567 4067 2077 2567
Fork Height,

Lowered		 h13 (mm) 85
Overall length l1 (mm) 1600/1800
Length to fork

face		 l2 (mm) 700
Overall width b1/ b2 760
    (mm)
Fork

dimensions		 e/l (mm) 150/900(1100)
Width of forks b5 (mm) 550/640
Min.Ground

clearance		 m2 (mm) 32
Aisle width with

pallet 1000 x 1200

across forks		 Ast (mm) 2250
Aisle width with

pallet 800 x 1200

along forks		 Ast (mm) 2240
Min.Turning

radius		 Wa (mm) 1350
Performance Lifting speed,

with/without load		 (mm/s) 78/145 76/143 78/145 76/143 78/145 76/143
Lowering speed,

with/without load		 (mm/s) 123/107 104/93 127/111 108/97 131/115 112/101
Service brake   machinery
Drive Lift motor

rating at S3

15%		 (kW) 1.5
Battery according

to DIN

43531/35/36

A,B,C,no		   no
Battery

voltage/rated

capacity		 (V/Ah) 12/120
Battery weight

(± 5%)		 (kg) 36
Others Noise level at

operator‘s ear		 (dB(A)) 67







Semi Electric Stacker, 1t/1.5t/2ton load , high-strength mast extended 3m 0
