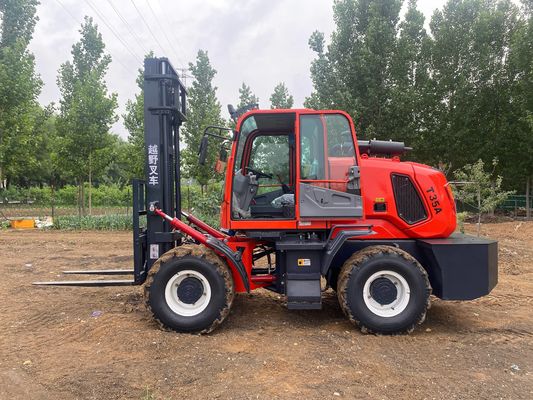

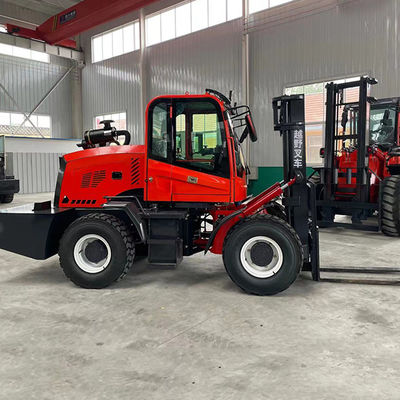

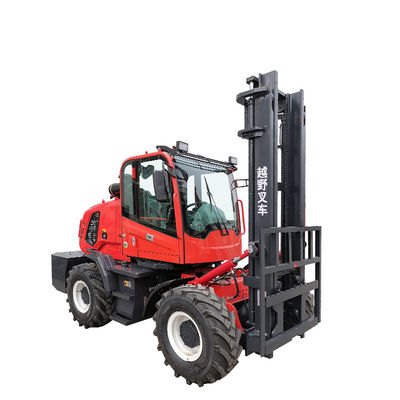

Rough Terrain Forklift Truck 3.5 Ton Short Axis Support EPA4, EuroV，Enclosed Cab
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | DIESEL ROUGH TERRAIN FORKLIFT | Max. Lifting Height | 3~6m (optional Mast) |
|---|---|---|---|
| Fork Length | 1220 | Rated Loading Capacity | 3.5t |
| Engine | Opcions: China II, EPA4, EuroV | Tire | Medium 20.5/70-16 Tires (Dragon Pattern) Width: 31CM Height: 86CM |
| High Light | EPA4 Rough Terrian forklift truck,EuroV Off road forklift truck,3.5Ton Short Axis Forklift Truck |
||
Product Description
| Model | T35A( Short) |
|---|---|
| Rated lifting load | 3500kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3200mm |
| Gradeability | ≤38° |
| Min.ground clearance | 350mm |
| Mast tilt angle (front/rear) | 10°/6° |
| Walking speed | 38km/h |
| Max.traction | 25KN |
| Engine | Xichai/Yunnei493/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Axle | Integrated cast steel axle with wheel edge |
| Tire | 23.5/70-16 |
| Wheelbase | 1980mm |
| Mast Steel Width | 160mm |
| Fork length | 1220mm(optional) |
| Overall weight | 4200kg |
