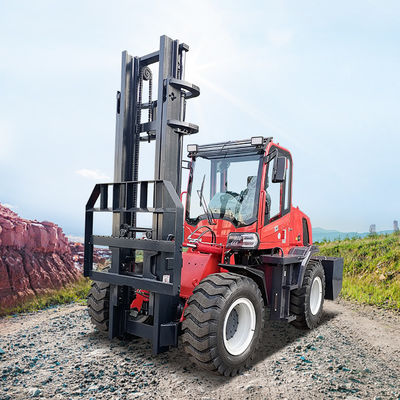

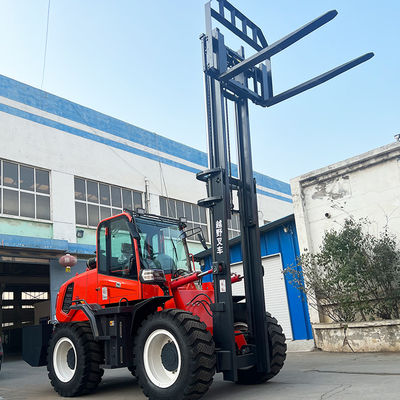

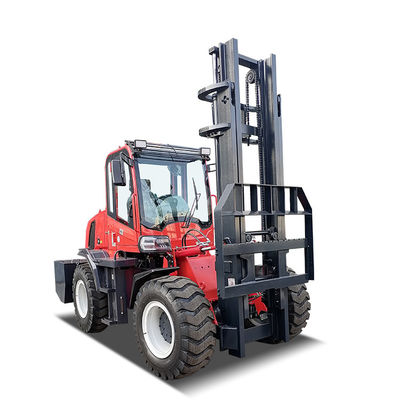

Rough Terrain/Off Road Forklift Truck 5ton Index Axis Support EPA4, EuroV
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | DIESEL ROUGH TERRAIN FORKLIFT | Max. Lifting Height | 4~6M (optional Mast) |
|---|---|---|---|
| Fork Length | 1520mm | Rated Loading Capacity | 5000kg / 5ton |
| Engine | China II; EPA4; EuroV | Tire | 16/70-24 Tires (Dragon Pattern) Width: 40CM Height: 118CM |
| High Light | 5ton Off road forklift truck,EuroV Rough Terrian forklift truck,EPA4 Rough Terrian forklift truck |
||
Product Description
| Model | T50A(Index axis) |
|---|---|
| Rated lifting load | 5000kg |
| Rated lifting height | 4000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3800mm |
| Gradeability | ≤38° |
| Min.ground clearance | 3800mm |
| Mast tilt angle (front/rear) | 10°/6° |
| Walking speed | 45km/h |
| Max.traction | 35KN |
| Engine power | Yunnei 4102 supercharged 76KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Axle | Integrated cast steel axle with large rim |
| Tire | 16/17-24 |
| Wheelbase | 2400mm |
| Mast Steel Width | 180mm |
| Fork length | 1520mm (optional) |
| Overall weight | 5500kg |
| Dimensions | 4500*1900*2850mm |
