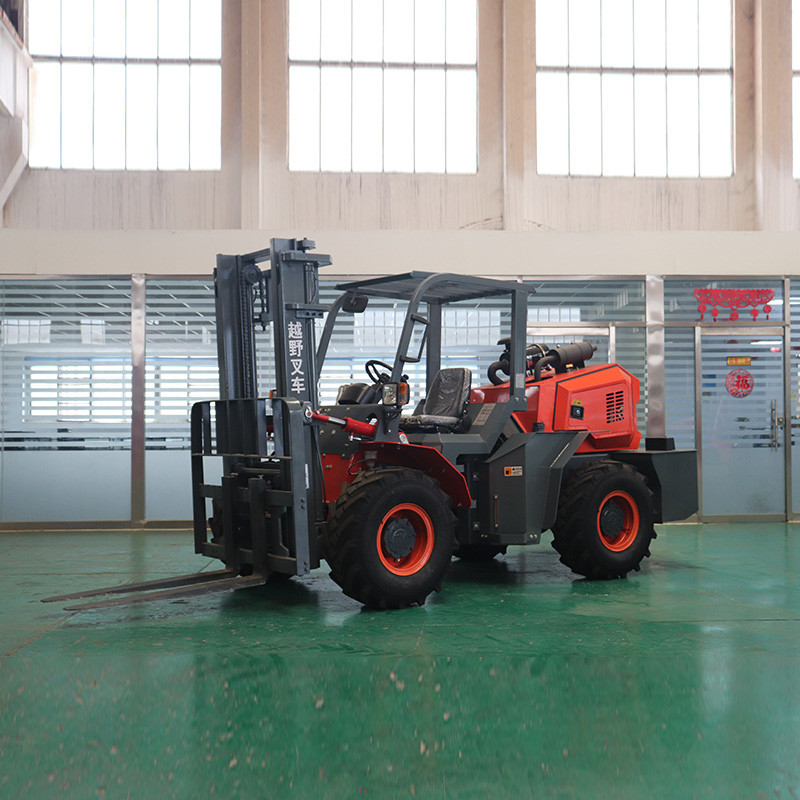

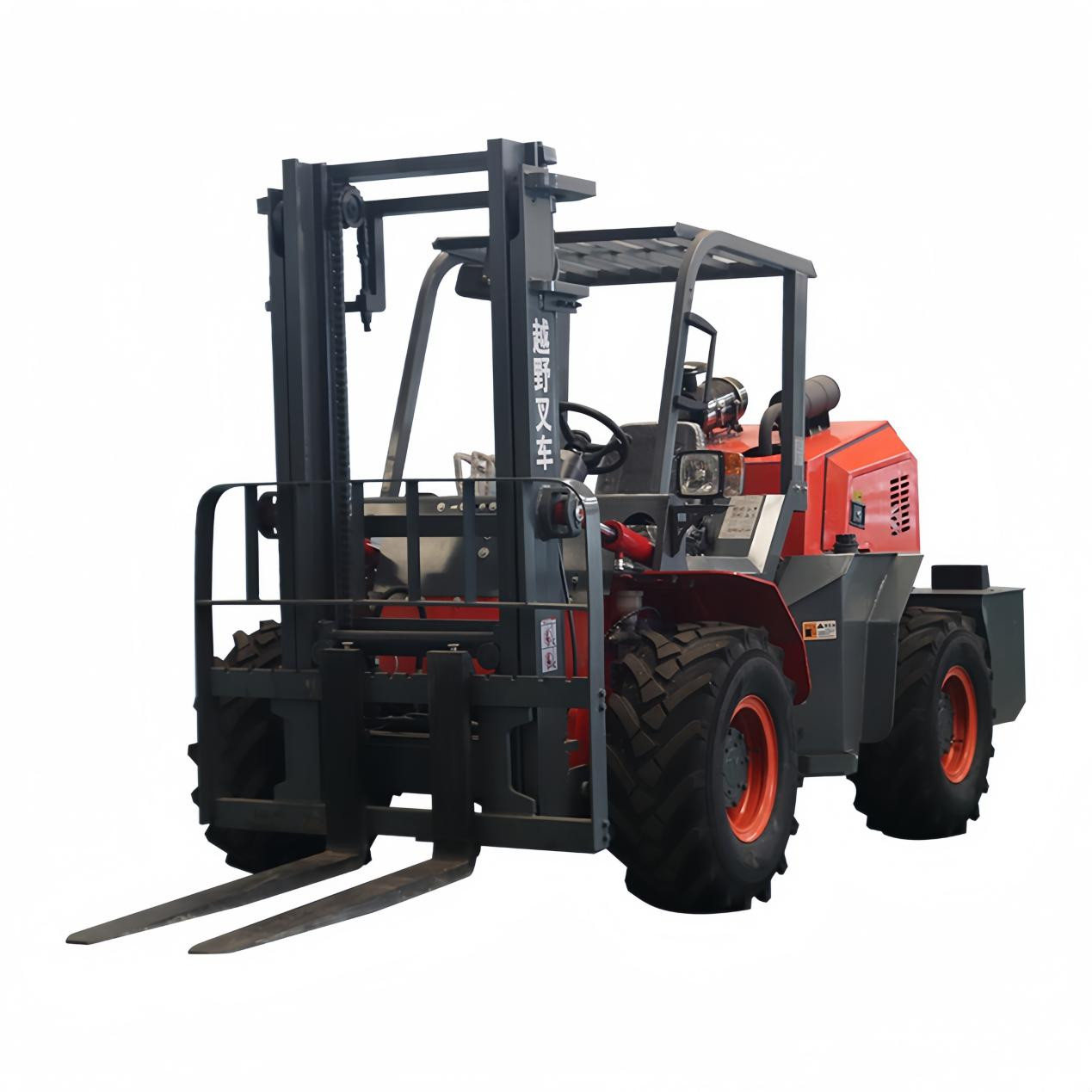

Middle Hinged Rough Terrain/Off-road Forklift 3.5T lift 3~6m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Max. Lifting Height | 3000mm-6000mm (optional Mast) |
|---|---|---|---|
| Fork Length | 1220mm With Optional | Rated Loading Capacity | 3500kg/3.5ton |
| Engine | Xichai/Yunnei490-42KW/Cummins 55KW(EPA4,Euro V) | Tire | 23.5/70-16 Herringbone Tires |
| High Light | Middle hinged Rough Terrain Forklift T35A,Middle Hinged Rough Terrain Forklift,600mm Load Center Distance Terrain Forklift |
||
Product Description
| Model | T35A ( Middle hinged ) |
| Rated lifting load | 3500kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3200mm |
| Gradeability | ≤38° |
| Min.ground clearance | 350mm |
| Mast tilt angle (front/rear) | 10°/6° |
| Walking speed | 38km/h |
| Max.traction | 25KN |
| Engine | Xichai/Yunnei490-42KW/Cummins 55KW(EPA4,Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Axle | Integrated cast steel axle with wheel edge |
| Tire | 23.5/70-16 |
| Wheelbase | 1980mm |
| Mast Steel Width | 160mm |
| Fork length | 1220mm (optional) |
| Overall weight | 4200kg |
| Dimensions | 3600*1850*2150mm |
