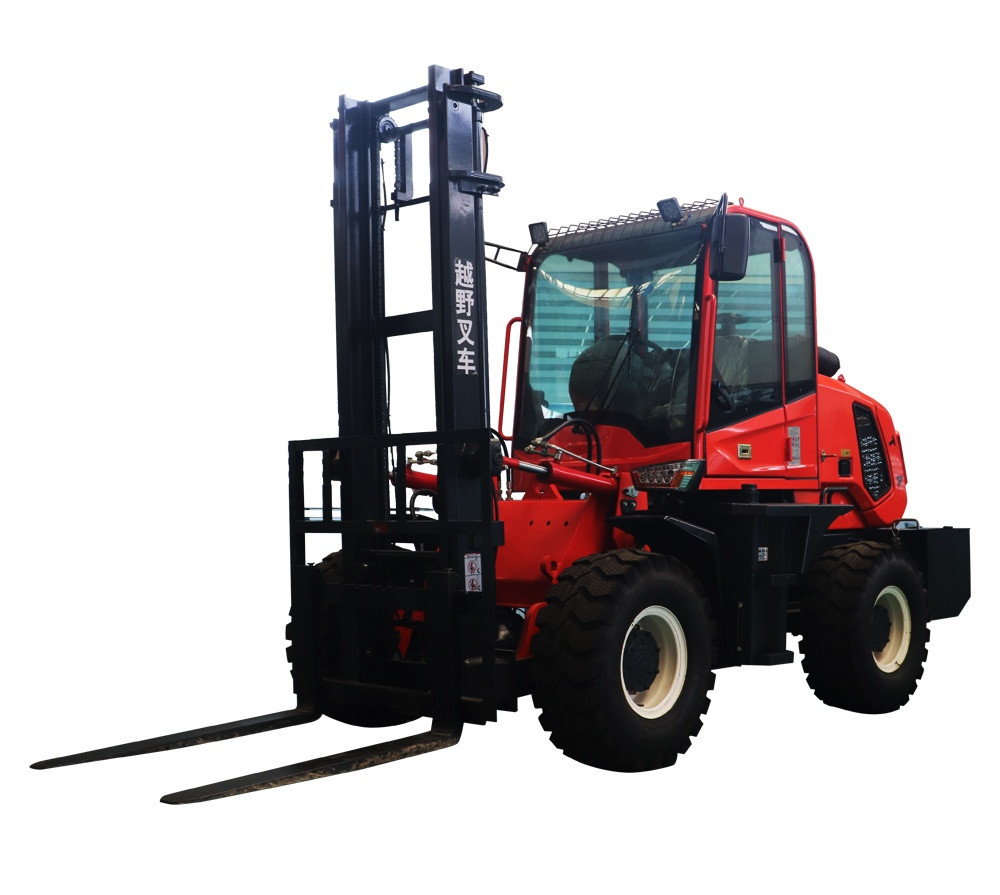

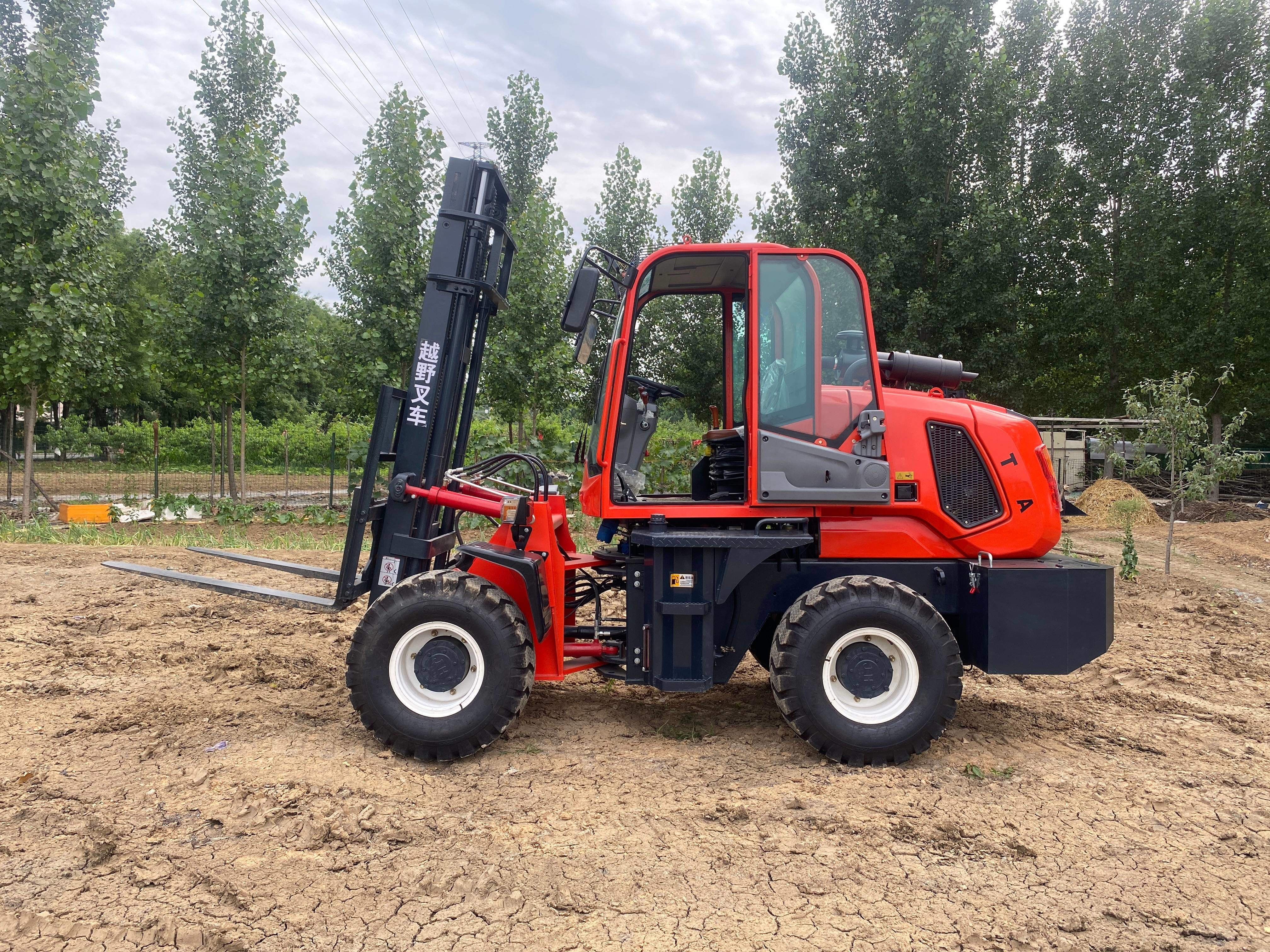

3.5T Rough Terrain Forklift ( Index Axis) for lifting 3~6m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Max. Lifting Height | 3000mm-6000mm (optional Mast) |
|---|---|---|---|
| Fork Length | 1220mm | Rated Loading Capacity | 3500kg/3.5ton |
| Engine | Xichai/Yunnei490-42KW/Cummins 55KW(EPA4,Euro V)//Yunnei 55KW(Euro V) | Tire | Medium 20.5/70-16 Tires (Dragon Pattern) Width: 31CM Height: 86CM |
| High Light | Index axis Rough Terrain Forklift T35A,T35A Rough Terrain Forklift,3500kg lifting load Rough Terrain Forklift |
||
Product Description
| Model | T35A( Index axis) |
| Rated lifting load | 3500kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3500mm |
| Gradeability | ≤38° |
| Min.ground clearance | 350mm |
| Mast tilt angle (front/rear) | 10°/6° |
| Walking speed | 38km/h |
| Max.traction | 25KN |
| Engine | Xichai/Yunnei490-42KW/Cummins 55KW(EPA4,Euro V)//Yunnei 55KW(Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Axle | Integrated cast steel axle with wheel edge |
| Tire | 23.5/70-16 |
| Wheelbase | 2200mm |
| Mast Steel Width | 160mm |
| Fork length | 1220mm |
| Overall weight | 4200kg |
| Dimensions | 4200*1850*2700mm |
