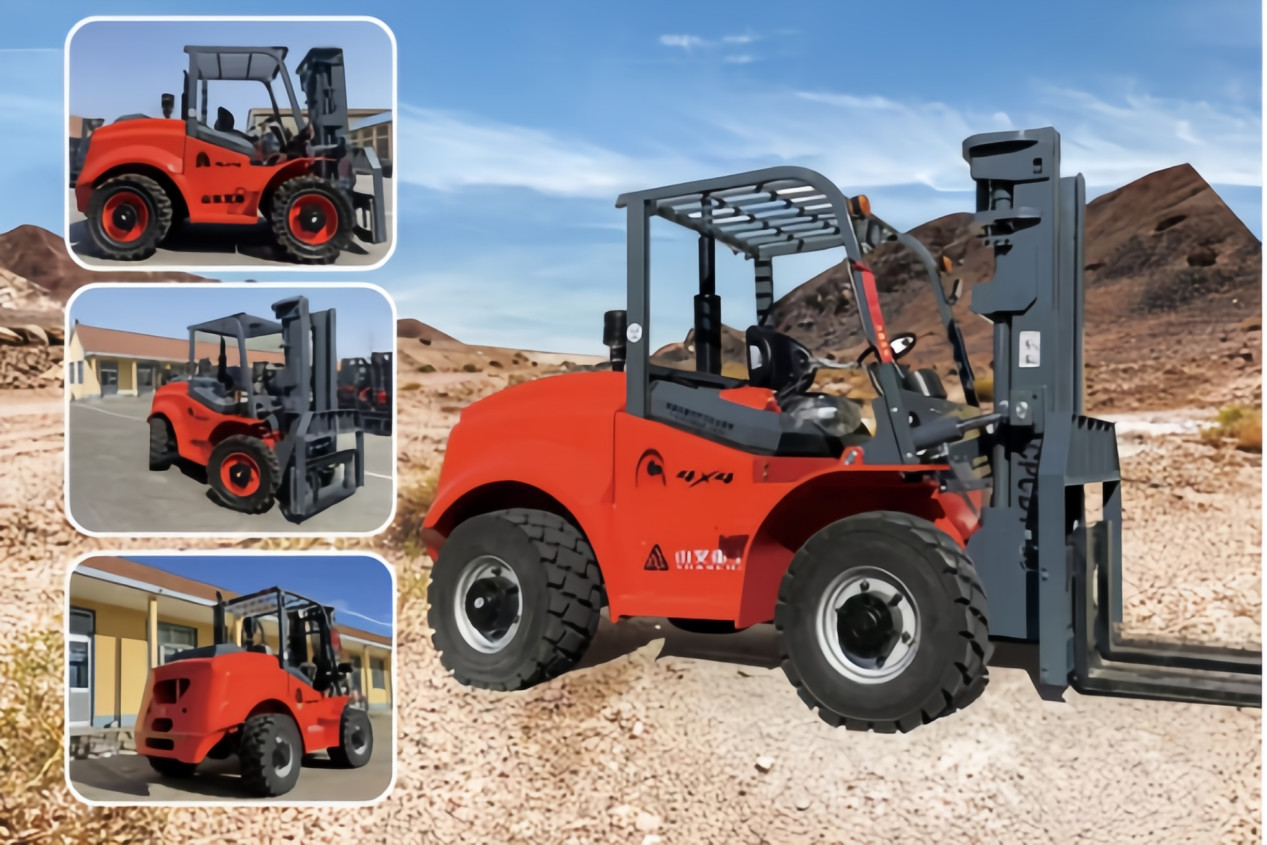

5.0T Integrated Rough Terrain Forklift Built-in Counterweight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Max. Lifting Height | 3000mm-6000mm (optional Mast) |
|---|---|---|---|
| Fork Length | 1520mm (optional) | Rated Loading Capacity | 5000kg / 5ton |
| Engine | Yunnei 4102 Supercharged 76KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) | Tire | 12-16.5 Special Enhanced |
| High Light | Integrated Rough Terrain Forklift,T50A Integrated Rough Terrain Forklift,T50A Rough Terrain Forklift |
||
Product Description
| Model | T50A ( Integrated ) |
| Rated lifting load | 5000kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3200mm |
| Gradeability | ≤38° |
| Min.ground clearance | 350mm |
| Mast tilt angle (front/rear) | 10°/8° |
| Walking speed | 35km/h |
| Max.traction | 30KN |
| Engine | Yunnei 4102 supercharged 76KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 280 high and low speed torque converter |
| Axle | Brand wheel cast steel steering axle(rear wheel steering/4 wheel steering |
| Tire | 12-16.5 Special enhanced |
| Wheelbase | 1890mm |
| Mast Steel Width | 180mm (plus heavy duty) |
| Fork length | 1520mm (optional) |
| Overall weight | 6500kg |
| Dimensions | 3500*1892*2300mm |
