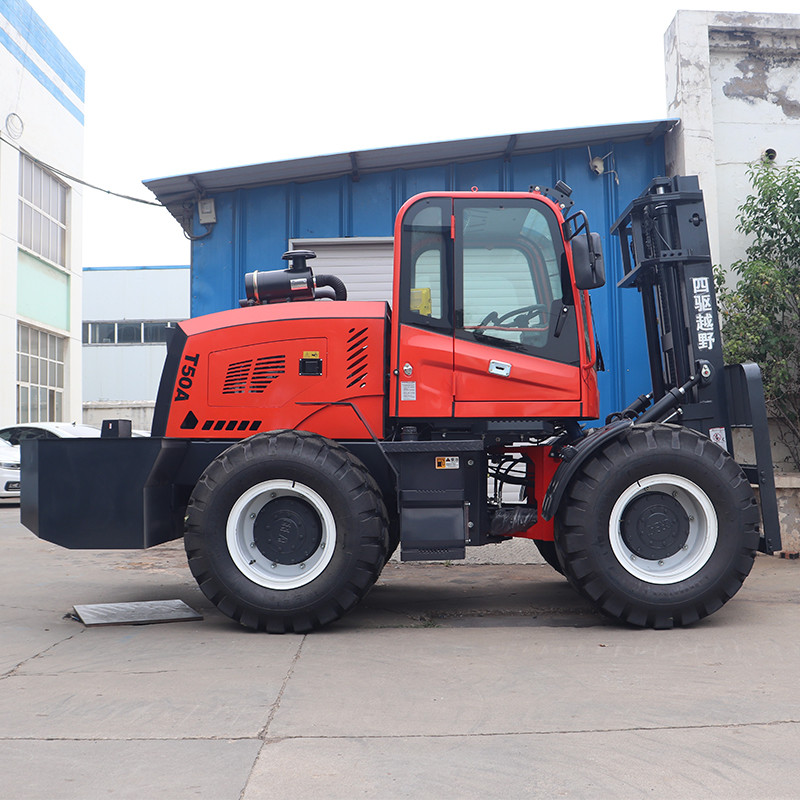

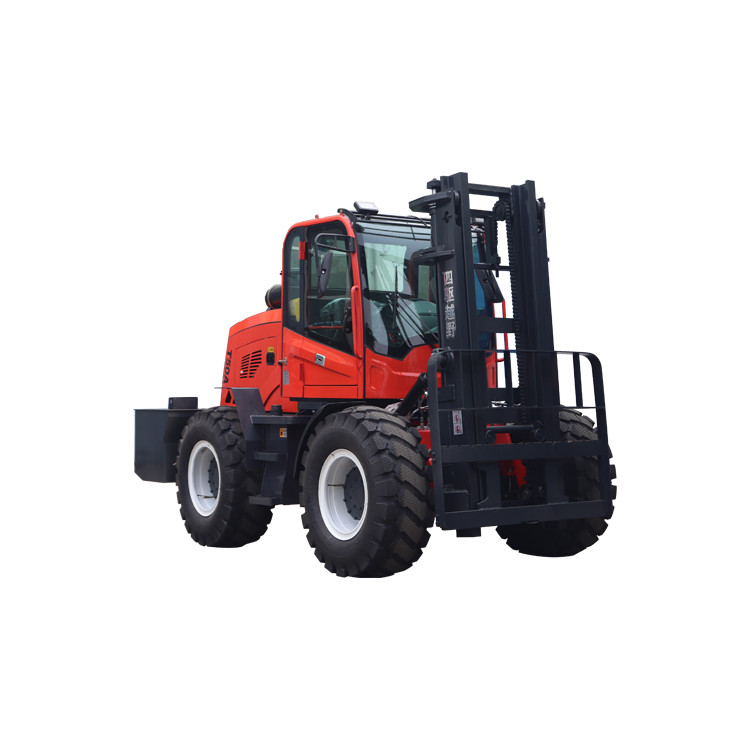

5.0T Short Rough Terrain Forklift Lifting Height 3~6m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Souce | Diesel Engine | Max. Lifting Height | 3000mm-6000mm (optional Mast) |
|---|---|---|---|
| Fork Length | 1220mm With Optional | Rated Loading Capacity | 5000kg / 5ton |
| Engine | Yunnei 4100 Supercharged 65KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) | Tire | 16/70-20 Tires (Dragon Pattern) Width: 36CM Height: 108CM |
| High Light | 5.0T Short Rough Terrain Forklift,6m Short Rough Terrain Forklift,3m Rough Terrain Forklift |
||
Product Description
| Model | T50A(Short) |
| Rated lifting load | 5000kg |
| Rated lifting height | 3000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 4200mm |
| Gradeability | 38° |
| Min.ground clearance | 4200mm |
| Mast tilt angle (front/rear) | 10°/8° |
| Walking speed | 38km/h |
| Max.traction | 35N |
| Engine power | Yunnei 4100 supercharged 65KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Axle | Integrated cast steel axle with large rim |
| Tire | 16/17-24 |
| Wheelbase | 1980mm |
| Mast Steel Width | 180mm |
| Fork length | 1220mm (optional) |
| Overall weight | 5000kg |
| Dimensions | 4200*1920*2500mm |
Product Features
