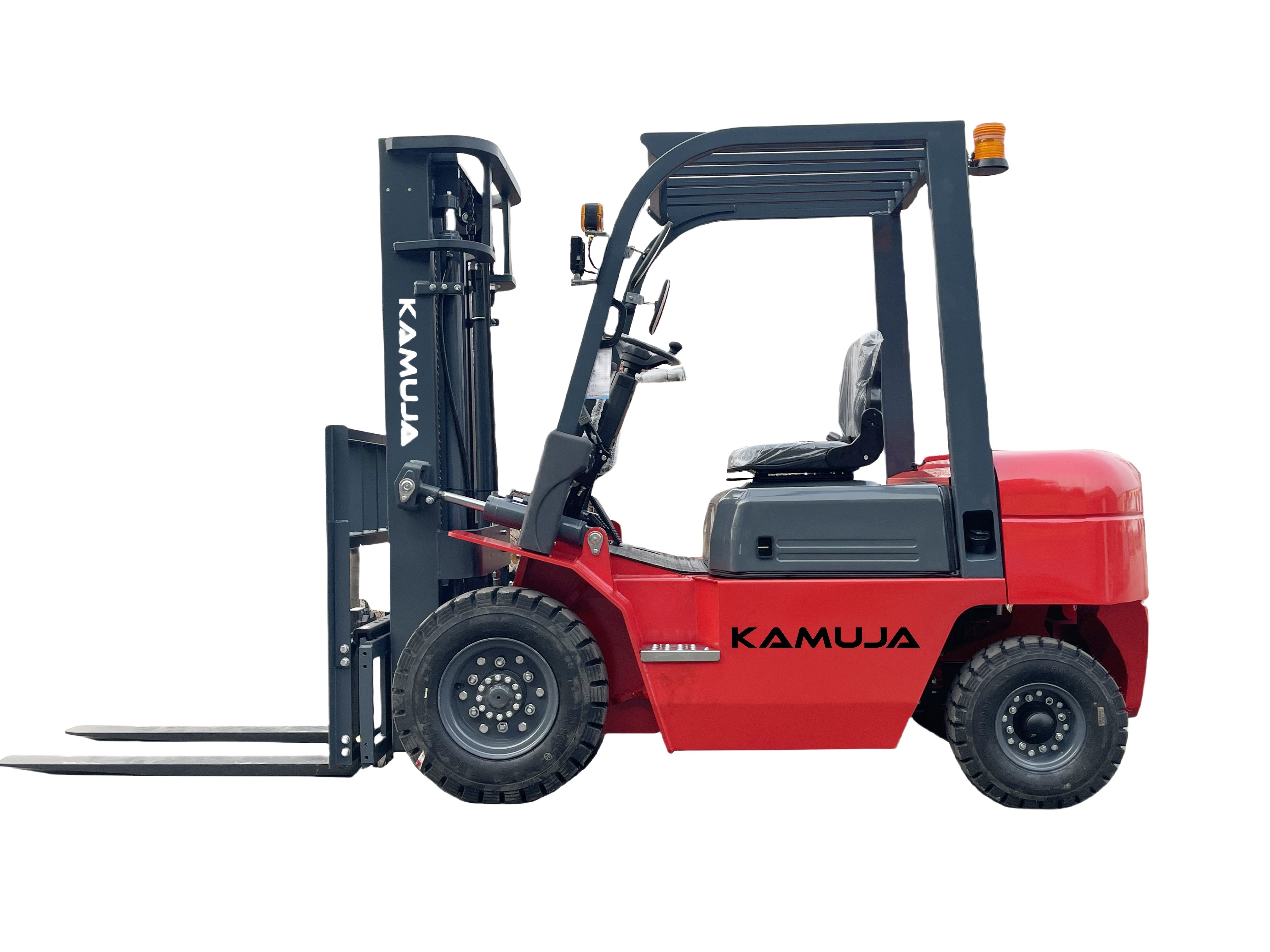

Versatile Diesel Engine Forklift with 2500kg Load Capacity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max. Lifting Height | 3000mm , Options For Mast | Fork Length | 1220mm |
|---|---|---|---|
| Rated Loading Capacity | 2500kg | Engine | Xinchai/Isuzu/Mitsubishi/EuroV |
| Transmission | Menchanical Or Hydraulic | Tire | Pneumatic Or Solid(optional) |
| Highlight | Versatile Diesel Engine Forklift,2500kg Load Capacity Forklift,2500kg Diesel Engine Forklift |
||
Product Description
SPECIFICATIONS
| Model | Unit | A-SF25 |
| Rated lifting load | kg | 2500 |
| Load center distance | mm | 500 |
| Free lifting height | mm | 150 |
| Overall length (w/. fork/ w/.o fork) L1 | mm | 3646/2576 |
| Width W1 | mm | 1170 |
| Overhead guard height H2 | mm | 2070 |
| Wheelbase L2 | mm | 1600 |
| Minimum ground clearance | mm | 110 |
| Mast till angle (front/rear) α/β | ° | 6/12 |
| Front tire | 7.00*12-12PR | |
| Rear tire | 6.00*9-10PR | |
| Minimum turning radius (outer side) R | mm | 2240 |
| Minimum right angle aisle width | mm | 3970 |
| Fork size L1/W2 | mm | 1070*100*45 |
| Maximum working speed (Full-load/w/.o load) | Km/h | 17/19 |
| Maximum lifting speed (Full-load/w/.o load) | Mm/s | 530/550 |
| Maximum gradeability (Full-load/w/.o load) | ° | 20/21 |
| Forklift weight | kg | 3680 |
| Engine model | EUROII/EUROIII |
XinchaiC490 ISUZU C240 Mitsubishi S4S |
※ The technical information may vary by the update policy, the changes will be without prior notice.
ISUZU C240 Mitsubishi S4S Solid tires Cabin 3 Stage F. free
OPTIONALS
Transmission : Mechanical / Hydraulic transmission / Electronic shift hydraulic transmission
Mast:2stage 3.5m,4m,4.5m,5m / 2 stage Full Free 3m / 3 stage Full Free 4.5m,5m,5.5m,6m,8m
Fork: 1.37m/ 1.52m/1.67m/1.82m
Engine: EURO V, EPA4 Exhaust: High exhaust /Fire extinguisher
Others: External Side shifter, Solid tires, Cab w./fan, Cab w./heater, Cab w./Air conditioner/Silencer and fireproof cab/ Extra valve interface for two-stage mast/One interface for three-stage mast
Attachments: All kinds of forklift attachments, SIDESHIFTER,CLAMPS, ROTATOR, PUSH -PULL,HINGED, SPECIAL, PALLET INVERTER
Fork Positioner Side Shifter Paper Roll Clamp Rotatory Pusher Carton Clamp
