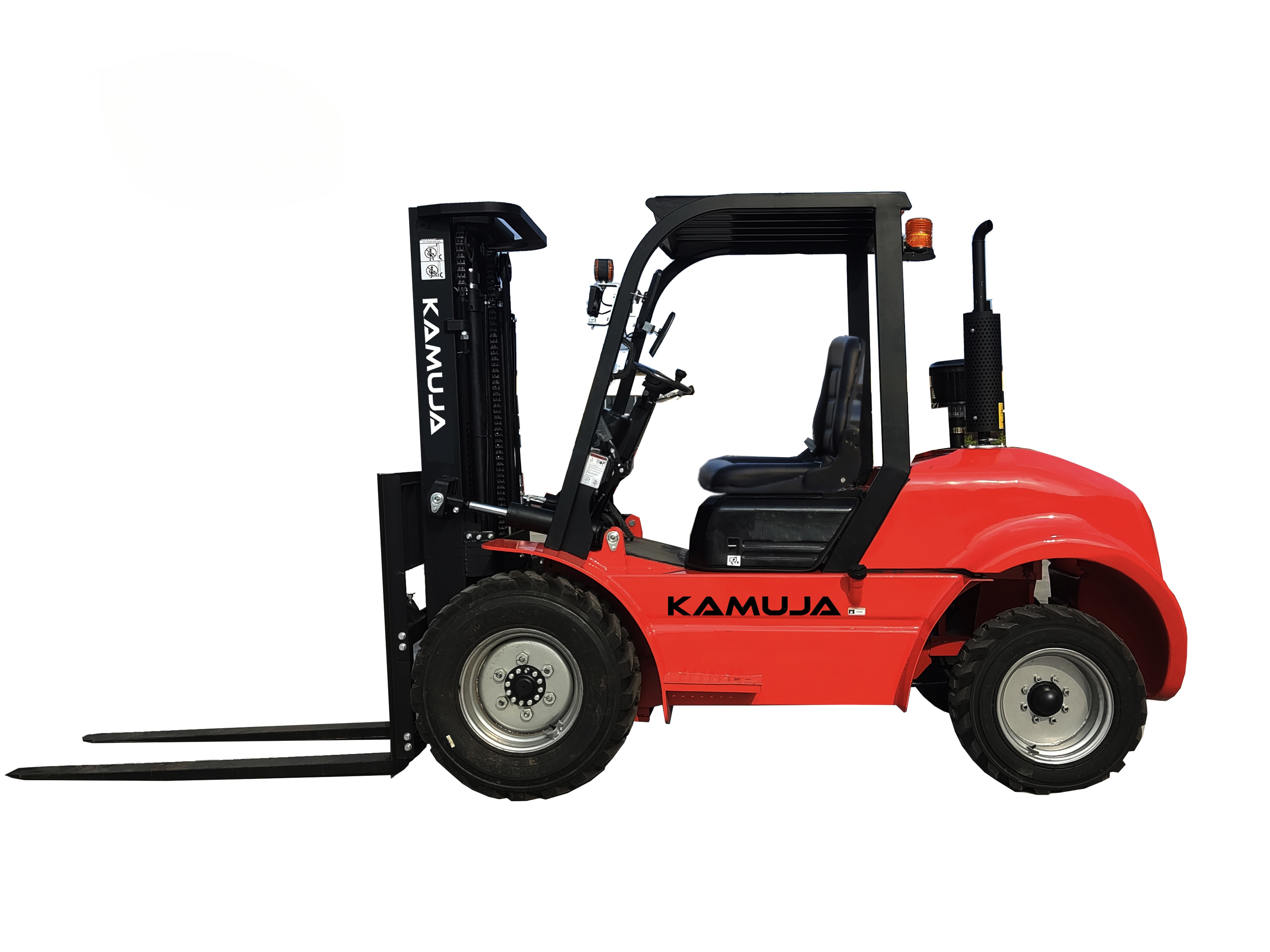

3500kg Diesel Forklift with Multiples Options Engine Mast

Place of Origin China
Brand Name KAMUJA
Certification CE
Model Number A-SF35
Minimum Order Quantity 1 UNIT
Price TBD(USD)
Packaging Details 6 SETS/40HQ
Delivery Time 30 DAYS
Payment Terms T/T
Supply Ability No limited

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Lifting Height 3000mm , Options For Mast Fork Length 1220mm
Rated Loading Capacity 3500 Kg Engine Xinchai/Isuzu/Mitsubishi/EuroV
Tire Pneumatic Or Solid(optional) Transmission Menchanical Or Hydraulic
High Light

Engine Mast Diesel Forklift

,

3500kg Diesel Forklift

,

Multiples Options Diesel Forklift

Leave a Message
Product Description

SPECIFICATIONS



Model Unit A-SF35
Rated lifting load kg 3500
Load center distance mm 500
Free lifting height mm 160
Overall length (w/. fork/ w/.o fork) L1 mm 3763/2693
Width W1 mm 1225
Overhead guard height H2 mm 2090
Wheelbase L2 mm 1700
Minimum ground clearance mm 135
Mast till angle (front/rear) α/β ° 6/12
Front tire   28*9-15-14PR
Rear tire   6.5-10-10PR
Minimum turning radius (outer side) R mm 2420
Minimum right angle aisle width mm 4260
Fork size L1/W2 mm 1070*125*50
Maximum working speed (Full-load/w/.o load) Km/h 19/19
Maximum lifting speed (Full-load/w/.o load) Mm/s 330/370
Maximum gradeability (Full-load/w/.o load) ° 15/20
Forklift weight kg 4500
Engine model EUROII/EUROIII

XinchaiC490

ISUZU C240

Mitsubishi S4S

※ The technical information may vary by the update policy, the changes will be without prior notice.



3500kg Diesel Forklift with Multiples Options Engine Mast 03500kg Diesel Forklift with Multiples Options Engine Mast 13500kg Diesel Forklift with Multiples Options Engine Mast 23500kg Diesel Forklift with Multiples Options Engine Mast 33500kg Diesel Forklift with Multiples Options Engine Mast 4

     ISUZU C240         Mitsubishi S4S           Solid tires                  Cabin               3 Stage F. free



OPTIONALS



Transmission : Mechanical / Hydraulic transmission / Electronic shift hydraulic transmission

Mast:2stage 3.5m,4m,4.5m,5m / 2 stage Full Free 3m / 3 stage Full Free 4.5m,5m,5.5m,6m,8m

Fork: 1.37m/ 1.52m/1.67m/1.82m

Engine: EURO V, EPA4 Exhaust: High exhaust /Fire extinguisher

Others: External Side shifter, Solid tires, Cab w./fan, Cab w./heater, Cab w./Air conditioner/Silencer and fireproof cab/ Extra valve interface for two-stage mast/One interface for three-stage mast

Attachments: All kinds of forklift attachments, SIDESHIFTER,CLAMPS, ROTATOR, PUSH -PULL,HINGED, SPECIAL, PALLET INVERTER



3500kg Diesel Forklift with Multiples Options Engine Mast 53500kg Diesel Forklift with Multiples Options Engine Mast 63500kg Diesel Forklift with Multiples Options Engine Mast 73500kg Diesel Forklift with Multiples Options Engine Mast 83500kg Diesel Forklift with Multiples Options Engine Mast 93500kg Diesel Forklift with Multiples Options Engine Mast 10

 Fork Positioner      Side Shifter     Paper Roll Clamp        Rotatory               Pusher          Carton Clamp
