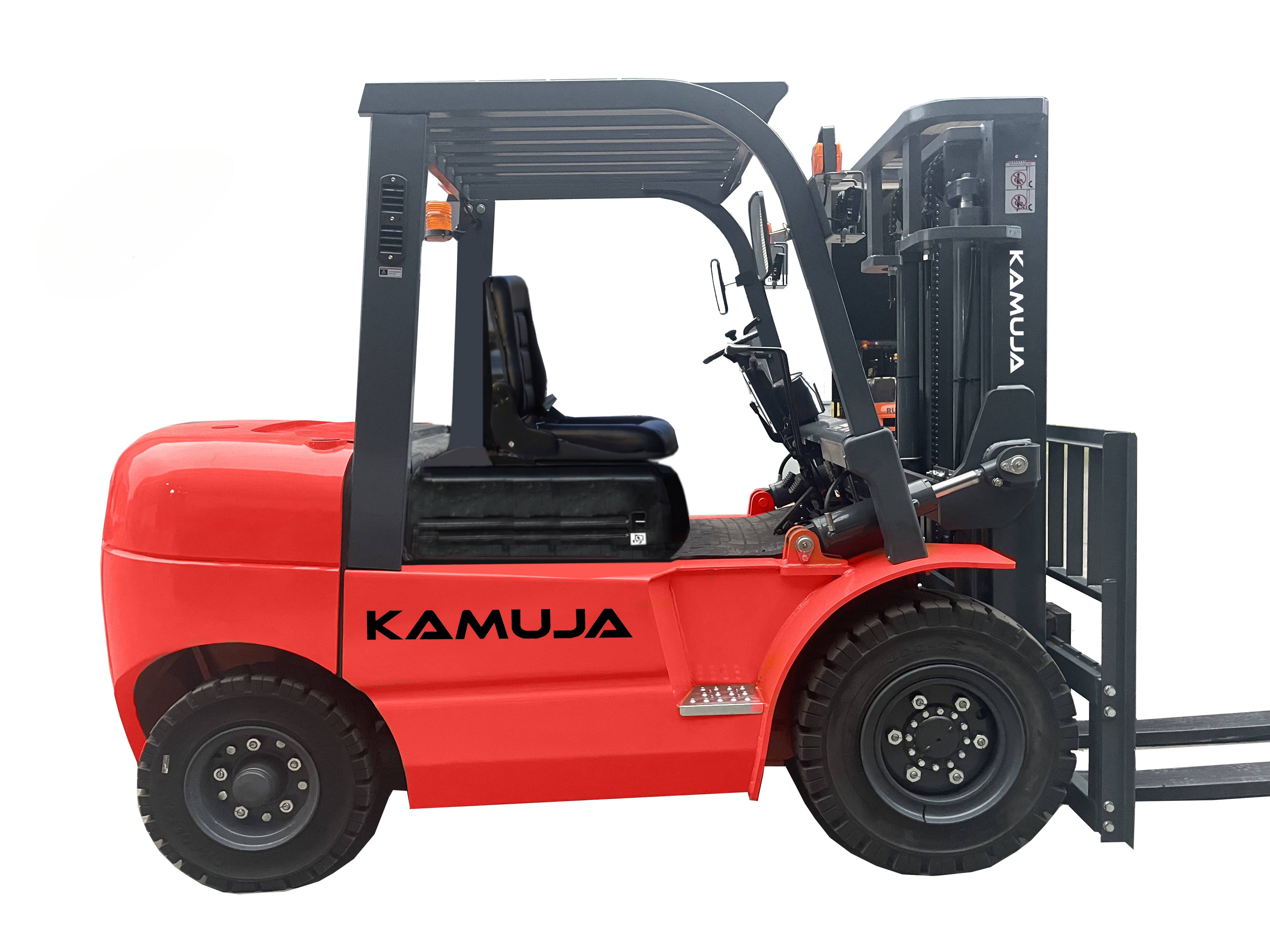

6000kg Diesel Engine Forklift for Smooth and Safe Material Handling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMax. Lifting Height | 3000mm, Options Up To 5m | Fork Length | 1220 Mm |
---|---|---|---|
Rated Loading Capacity | 6000kg | Engine | Xichai/Isuzu/Mitsubishi/EuroV |
Warranty | 1 Year / 2000 Working Hours | Transmission | Automatic |
High Light | Smooth Material Handling Diesel Engine Forklift,Safe Material Handling Diesel Engine Forklift,6000kg Diesel Engine Forklift |
SPECIFICATIONS
Model | Unit | A-SF60 |
Rated lifting load | kg | 6000 |
Load center distance | mm | 600 |
Free lifting height | mm | 210 |
Overall length (w/. fork/ w/.o fork) L1 | mm | 4720/3590 |
Width W1 | mm | 1970 |
Overhead guard height H2 | mm | 2500 |
Wheelbase L2 | mm | 2250 |
Minimum ground clearance | mm | 230 |
Mast till angle (front/rear) α/β | ° | 6/12 |
Front tire | 8.25-15-14PR | |
Rear tire | 8.25-15-14PR | |
Minimum turning radius (outer side) R | mm | 4120 |
Minimum right angle aisle width | mm | 5290 |
Fork size L1/W2 | mm | 1220*150*60 |
Maximum working speed (Full-load/w/.o load) | Km/h | 23/29 |
Maximum lifting speed (Full-load/w/.o load) | Mm/s | 500/530 |
Maximum gradeability (Full-load/w/.o load) | ° | 15/20 |
Forklift weight | kg | 8900 |
Engine model | EUROII/EUROIII |
Xinchai CA6110 ISUZU 6BG1-02 Mitsubishi S6S-T |
※ The technical information may vary by the update policy, the changes will be without prior notice.
ISUZU 6GB1-02 Mitsubishi S6S-T Solid tires Cabin 3 Stage F. free
OPTIONALS
Mast: 2stage 3.5m,4m,4.5m,5m / 3 stage Full Free 4.5m,5m
Engine: EURO V, EPA4
Others: Side shifter, Solid tires,Fork positioner, Cab w./fan, Cab w./heater, Cab w./Air conditioner/Extra valve interface for two-stage mast/One interface for three-stage mast
Attachments: All kinds of forklift attachments, SIDESHIFTER,CLAMPS, ROTATOR, PUSH -PULL,HINGED, SPECIAL, PALLET INVERTER
Fork Positioner Side Shifter Paper Roll Clamp Rotatory Pusher Carton Clamp
