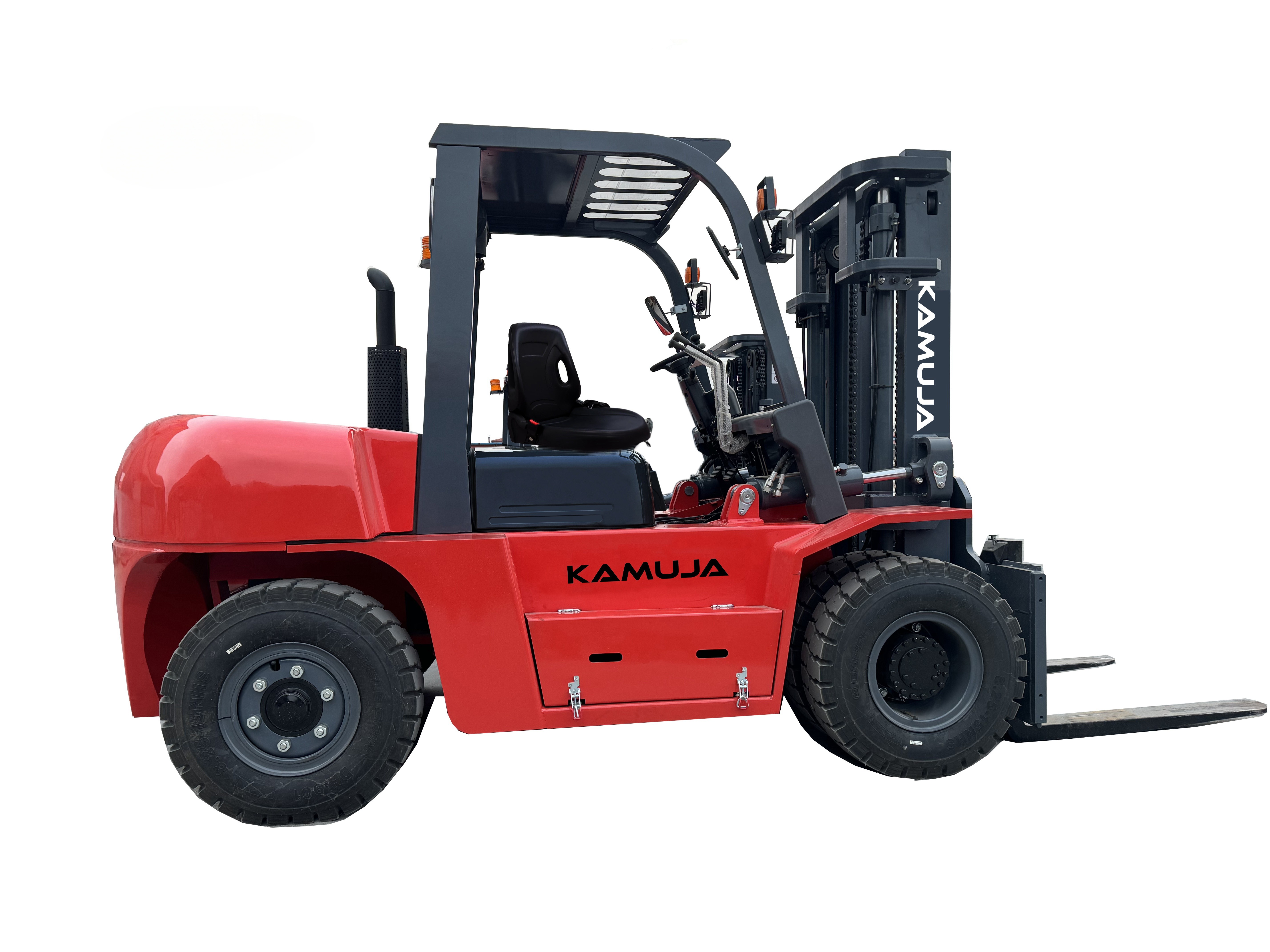

7000kg Load Capacity Diesel Forklift for Industrial and Warehousing application
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max. Lifting Height | 3000mm, Option Up To 5m | Fork Length | 1220mm |
|---|---|---|---|
| Rated Loading Capacity | 7000kg | Engine | Xichai/Isuzu/Mitsubishi/EuroV |
| Warranty | 1 Year | Transmission | Automatic |
| Highlight | Warehousing Diesel Forklift,7000kg Diesel Forklift,Industrial Diesel Forklift |
||
Product Description
SPECIFICATIONS
| Model | Unit | A-SF70 |
| Rated lifting load | kg | 7000 |
| Load center distance | mm | 600 |
| Free lifting height | mm | 210 |
| Overall length (w/. fork/ w/.o fork) L1 | mm | 4810/3680 |
| Width W1 | mm | 1970 |
| Overhead guard height H2 | mm | 2500 |
| Wheelbase L2 | mm | 2250 |
| Minimum ground clearance | mm | 230 |
| Mast till angle (front/rear) α/β | ° | 6/12 |
| Front tire | 8.25-15-14PR | |
| Rear tire | 8.25-15-14PR | |
| Minimum turning radius (outer side) R | mm | 4180 |
| Minimum right angle aisle width | mm | 5360 |
| Fork size L1/W2 | mm | 1220*150*65 |
| Maximum working speed (Full-load/w/.o load) | Km/h | 22/29 |
| Maximum lifting speed (Full-load/w/.o load) | Mm/s | 500/480 |
| Maximum gradeability (Full-load/w/.o load) | ° | |
| Forklift weight | kg | 9600 |
| Engine model | EUROII/EUROIII |
Xinchai CA6110 ISUZU 6BG1-02 Mitsubishi S6S-T |
※ The technical information may vary by the update policy, the changes will be without prior notice.
ISUZU 6GB1-02 Mitsubishi S6S-T Solid tires Cabin 3 Stage F. free
OPTIONALS
Mast: 2stage 3.5m,4m,4.5m,5m / 3 stage Full Free 4.5m,5m
Engine: EURO V, EPA4
Others: Side shifter, Solid tires,Fork positioner, Cab w./fan, Cab w./heater, Cab w./Air conditioner/Extra valve interface for two-stage mast/One interface for three-stage mast
Attachments: All kinds of forklift attachments, SIDESHIFTER,CLAMPS, ROTATOR, PUSH -PULL,HINGED, SPECIAL, PALLET INVERTER
Fork Positioner Side Shifter Paper Roll Clamp Rotatory Pusher Carton Clamp
