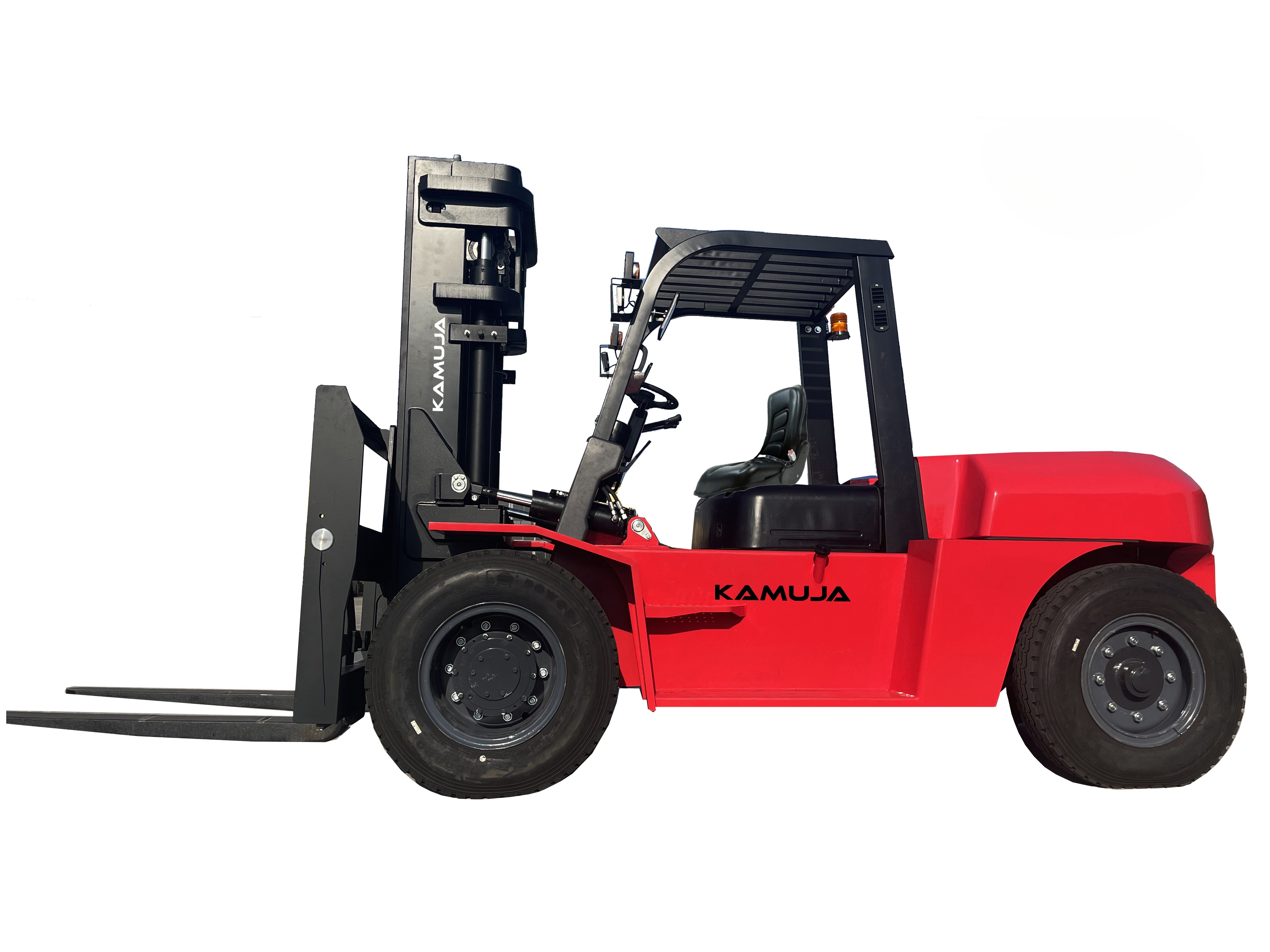

Powerful Diesel Engine Forklift with 10000kg Load Capacity for Industrial Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPower Souce | Diesel Engine | Max. Lifting Height | Standard 3m , Options : Free II & III Mast- 3.5~5M In Different Costs |
---|---|---|---|
Fork Length | 1520mm | Rated Loading Capacity | 10000kg/ 10Ton |
Engine | Xichai CA6110/ISUZU 6BG1-02/Mitsubishi S6S-T/ EuroV | Warranty | 1 Year Or 2000 Working Hours |
High Light | Powerful Diesel Engine Forklift,Industrial Applications Diesel Engine Forklift,10000kg Diesel Engine Forklift |
SPECIFICATIONS
Model | Unit | A-SF100 |
Rated lifting load | kg | 10000 |
Load center distance | mm | 600 |
Free lifting height | mm | 200 |
Overall length (w/. fork/ w/.o fork) L1 | mm | 5497/4277 |
Width W1 | mm | 2245 |
Overhead guard height H2 | mm | 2570 |
Wheelbase L2 | mm | 2800 |
Minimum ground clearance | mm | 250 |
Mast till angle (front/rear) α/β | ° | 10/12 |
Front tire | 9.00-20NHS | |
Rear tire | 9.00-20NHS | |
Minimum turning radius (outer side) R | mm | 4150 |
Minimum right angle aisle width | mm | 6010 |
Fork size L1/W2 | mm | 1520*170*85 |
Maximum working speed (Full-load/w/.o load) | Km/h | 20/26 |
Maximum lifting speed (Full-load/w/.o load) | Mm/s | 330/350 |
Maximum gradeability (Full-load/w/.o load) | ° | 15/20 |
Forklift weight | kg | 12410 |
Engine model | EUROII/EUROIII |
Xinchai CA6110 ISUZU 6BG1-02 Mitsubishi S6S-T |
※ The technical information may vary by the update policy, the changes will be without prior notice.
ISUZU 6GB1-02 Mitsubishi S6S-T Solid tires Cabin 3 Stage F. free
OPTIONALS
Mast: 2stage 3.5m,4m,4.5m,5m / 3 stage Full Free 4.5m,5m
Engine: EURO V, EPA4
Others: Side shifter, Solid tires,Fork positioner, Cab w./fan, Cab w./heater, Cab w./Air conditioner/Extra valve interface for two-stage mast/One interface for three-stage mast
Attachments: All kinds of forklift attachments, SIDESHIFTER,CLAMPS, ROTATOR, PUSH -PULL,HINGED, SPECIAL, PALLET INVERTER
Fork Positioner Side Shifter Paper Roll Clamp Rotatory Pusher Carton Clamp
