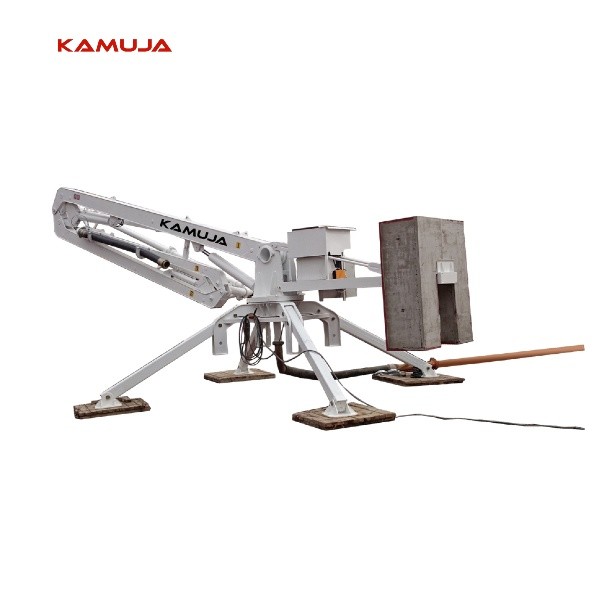

360 Degree Spider Placing Boom Kamuja 17m 21m Radius Spider Concrete Placer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Electronic | Power Supply | 380v 50Hz |
|---|---|---|---|
| Application | Construction Industry Placing (concrete) | Max. Load | 1520kg, 5850kg |
| High Light | 360 Degree Spider Placing Boom,17m Radius Spider Placing Boom,21m Radius Spider Concrete Placer |
||
Product Description
Express.Brochure.SpiderPlacingBoom.pdf

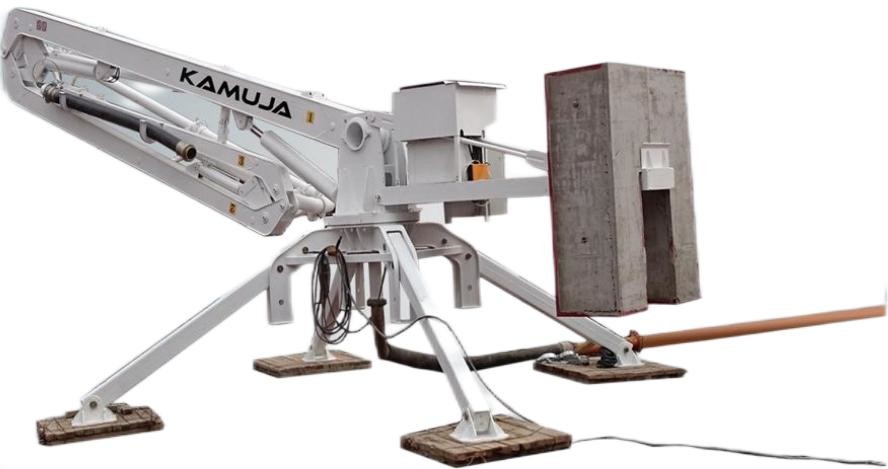

Kamuja Spider Placing Boom 360° Slewing Range, Placing Radius 17m ,21m
FEATURES
① Three arms design'*R" folding, The machine is fully driven by hydraulic, and can slew flexibly with wide working range
② Two modes of operation: radio remote control and cable remote control, easy to operate.
③ The total weight is light, customer can lifting it easily on the job site.
④ The bottom frame is inclined outrigger structure, the working state is table and fixed.
STRUCTURE AND SCOPE OF WORK
SPECIFICATIONS
| ITEMS | UNITS | HG17B-3R-II | HG21B-3R | ||
| Performance | Max Radius of Placing Boom | m | 17 | 21 | |
| Free standing Height | m | 2.7 | 3 | ||
| Slewing Range | / | 360° | 360° | ||
| Circumstance Temperature | °C | -20-55 | -20-55 | ||
| Power(subject to Customer) | / | 380V/50HZ | 380V/50HZ | ||
| Delivery Pipeline Diameter | mmxmm | 0133x4.5 | 0)133x4.5 | ||
| Delivery Hose Diameter | "xmm | 5" x 3000 | 5"x3000 | ||
| Boom | 1 st Section | Length | m | 7.1 | 8.4 |
| Articulation | / | 0〜86° | 0〜90 | ||
| 2nd Section | Length | m | 5.5 | 6.9 | |
| Articulation | / | 0~180° | 0~180. | ||
| 3rd Section | Length | m | 4.5 | 5.7 | |
| Articulation | / | 0°~180° | 0.~180. | ||
| Type of Hydraulic Oil | Circumstance Temperature 5°C-55°C | °C | Hm46 Anti-wear hydraulic oil | ||
| Circumstance Temperature -20°C-5°C | °C | Hm32 Anti-wear hydraulic oil | |||
| Motor | Power | kW | 5.5 | 7.5 | |
| Hydraulic Pressure | MPa | 25 | 28 | ||
| Mode of Slewing | / | Turbo Worm Drive | Gear Slewing | ||
| Application scenario | / | Mobile | |||
| Total Weight | kg | 6500 | 9150 | ||
| Max Lifting Unit | kg | 1520 | 5850 | ||
