100m3h Stationary Concrete Pump Cement Pump Trailer For Expressway
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | 100m3h Stationary Concrete Pump,100m3h Cement Pump Trailer,Expressway Stationary Concrete Pump |
||
|---|---|---|---|
Product Description

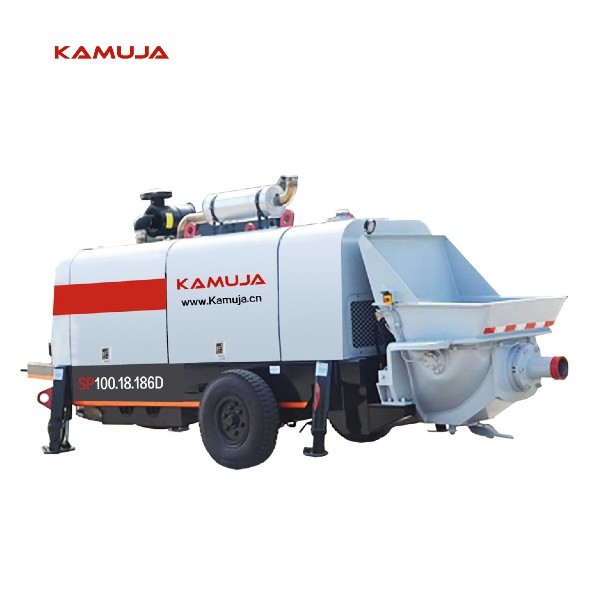

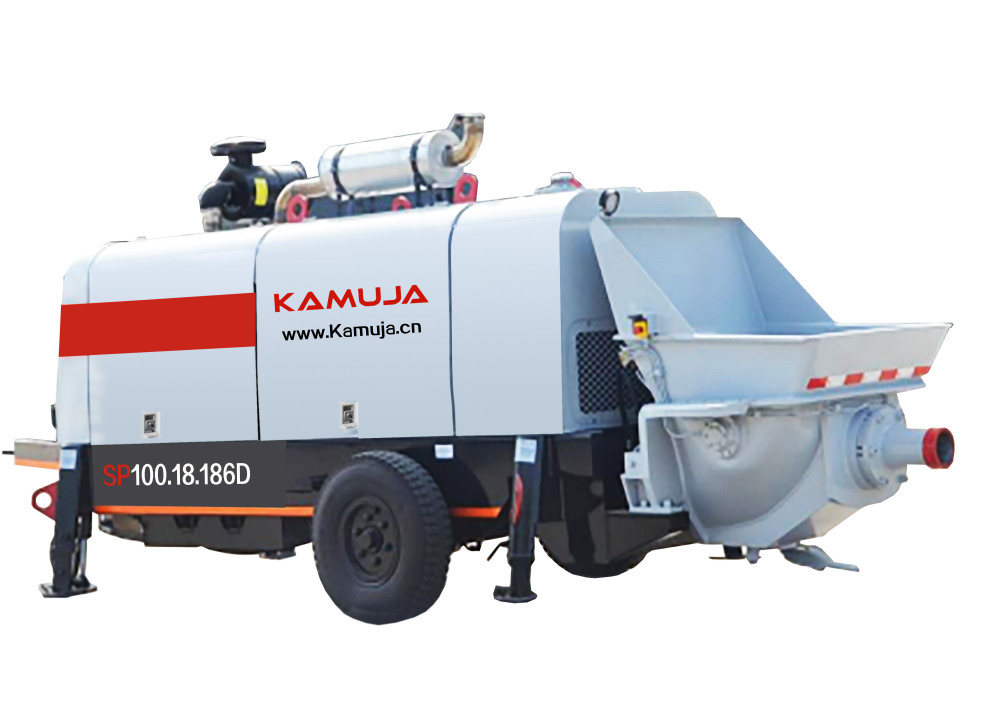

Stationary/Tralier Concrete Pump Max.Output 100 m3/h
INTRODUCTION
The Stationary Concrete pump is mainly use for Expressway, Road, Bridge, Light Rail and Private house construction scenarios.
FEATURE
ONE-BUTTON TWIN PISTON RETURN
With one-button operation, both of the pistons can be automatically returned into the water tank, which effectively shortensthe time for replacing the piston and makes maintenance easier.
HYDRAULIC INTEGRATION BLOCK
It adopts hydraulic integrated valve group, compact design, Concise oil passage, Simple and reliable connection of hydraulic pipeline, Reduce the system fluid resistance keep the system in reasonable temperature.
ONE-BOTTON HIGH AND LOW PRESSURE SWITCHING
Switch between high and low pressure with one button, Easy pumping at high Floors.
Performance
| ITEMS | UNITS | SP100.18.186D |
| Max.Theo.Output(Low/High) | m3/h | 100/55 |
| Max. Concrete Pressure (Low/High) | MPa | 9.7/18 |
| Distribution Valve | / | S Valve |
| Concrete Cylinder (Bore X Stroke) | mm | Diameter 200x1800 |
|
Hopper Size (CapacityxFeeding Height) |
m3xmm | 600x1380 |
| Max.Theo.Delivery Vertical Height | m | 320 |
| Max.Theo.Delivery Horizontal Distance | m | 1100 |
| Outlet Diameter | mm | DN 150 |
Power system
| ITEMS | UNITS | SP100.18.186D |
| Engine | / | BF6M1013-25T3R |
| Rated power | kW | 186 |
| Rated Speed | r/min | 2300 |
| Min.Speed | r/min | 800 |
| Type of cooling | / | Water cooling |
Hydraulic system
| ITEMS | UNITS | SP100.18.186D |
| Hydraulic Pump | / | KAWASAKI |
| Main Valve & Control Valve | / | Rexroth / EATON |
| Type of circuit | / | Open |
| Pumping Pressure | MPa | 32 |
| Distribution Pressure | MPa | 19 |
| Mixing Pressure | MPa | 10 |
| Max.mixing Speed | r/min | 35 |
| Hydraulic Oil Tank Capacity | L | 600 |
| Fuel Tank Capacity | L | 200 |
| Main Oil Pump Displacement | ml/r | 260 |
| Type of cooling | / | Air cooling |
Others
| ITEMS | UNITS | SP100.18.186D |
| Dimensions(L×W×H) | mm | 7130X2065X2860 |
| Total Weight | kg | 7360 |
| Diameter of Delivery Pipe | mm | Φ125/Φ150 |
| Max.Diameter of Aggregate | mm | Pebble 50, Crushed stone40 |
| Reversal Mixing | / | Manual |
| Supporting wheel & L-H Pressure Switch | / | Manual |
| Lubrication System | / | Double pump, progressive oil separator |
