27.7m 31.7m 32.4m Self Climbing Concrete Placing Boom Concrete Placement Boom
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Construction Industry Placing (concrete) | Max. Load | 4100kg, 4150kg, 4800kg |
|---|---|---|---|
| Max. Radius Of Placing Boom | 27.7m ;31.7m; 32.4m | ||
| High Light | 32.4m Self Climbing Concrete Placing Boom,31.7m Self Climbing Concrete Placing Boom,27.7m Concrete Placement Boom |
||
Product Description
Express.Brochure.ColumnPlacingBoom.pdf

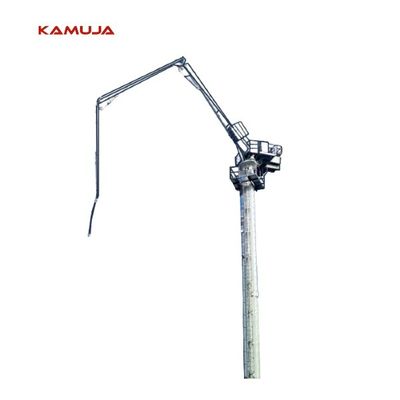

Column Climbing Placing Boom ,Placing Radius 27.7m,31.7m,32.4m
INTRODUCTION
The column climbing placing boom is used together with trailer pumps for large height pumping applications.
FEATURES
①The light weight of the whole machine is conducive to floor loading.
②The hydraulic pump station and electric control cabinet are integrated on the lower support,which is convenient for on-site installation and reduces the failure rate.
③The weight of the lifting unit is greatly reduced,with less site lifting capacity requirement.
④Without balance arm,more flexible on the operation.
OPTIONALS
·Columns:can be customized columns of different length according to working application 4M,5M,6M,10M.
·Mode of climbing:floor climbing,shaft climbing.
STRUCTURE AND SCOPE OF WORK
SPECIFICATIONS
| TEMS | UNITS | HG28A-3R-I | HG32A-3R-I | HG33A-4R-I | ||
| Performance | Max Radius of Placing Boom | m | 27.7 | 31.7 | 32.4 | |
| Free standing Heightflb The Joint Between The End of The Boom And Slewing Platform) |
m | 21.3 | 21.3 | 21.3 | ||
| Slewing Range | / | 360° | 360° | 360° | ||
| Circumstance Temperature | ℃ | -20-55 | -20-55 | -20-55 | ||
| Power(subject to Customer) | / | 380V/50HZ | 380V/50HZ | 380V/50HZ | ||
| Delivery Pipeline Diameter | mmxmm | 0133x4.5 | 0133x4.5 | 0133x4.5 | ||
| Delivery Hose Diameter | "xmm | 5"x 300 | 5"x3000 | 5"x 3000 | ||
| Boom | 1st Section | Length | m | 10.5 | 14.5 | 9.51 |
| Articulation | / | 0～86 | 0～86 | 0～86 | ||
| 2nd Section | Length | m | 9.2 | 9.2 | 7.56 | |
| Articulation | / | 0~180 | 0~180 | 0～180 | ||
| 3rd Section | Length | m | 8 | 9.2 | 7.65 | |
| Articulation | / | 0~180 | 0~180 | 0~180 | ||
| 4th Section | Length | m | / | / | 7.72 | |
| Articulation | / | / | / | 0°~180° | ||
| Type of Hydraulic Oil |
Circumstance Temperature 5°C-55℃ | ℃ | Hm46 Anti-wear hydraulic oil |
Hm46 Anti-wear hydraulic oil |
Hm46 Anti-wear hydraulic oil |
|
| Circumstance Temperature -20℃-5℃ | ℃ | Hm32 Anti-wear hydraulic oil |
Hm32 Anti-wear hydraulic oil |
Hm32 Anti-wear hydraulic oil |
||
| Motor | Power | kW | 11 | 11 | 18.5 | |
| Hydraulic Pressure | MPa | 28 | 28 | 30 | ||
| Mode of Slewing | / | Gear Slewing | Gear Slewing | Gear Slewing | ||
| Application scenario | / | Floor Climbing or Shaft Climbing |
||||
| Balance Arm | / | / | / | / | ||
| Total Weight | kg | 16200 | 18150 | 20100 | ||
| Max Lifting Unit | kg | 4100 | 4150 | 4800 | ||
