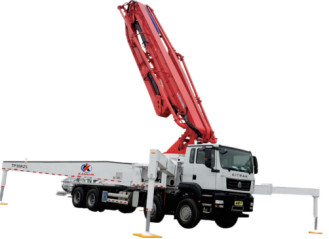

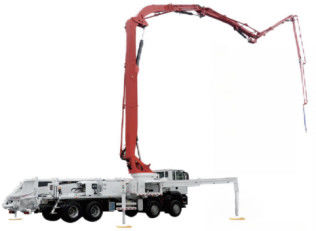

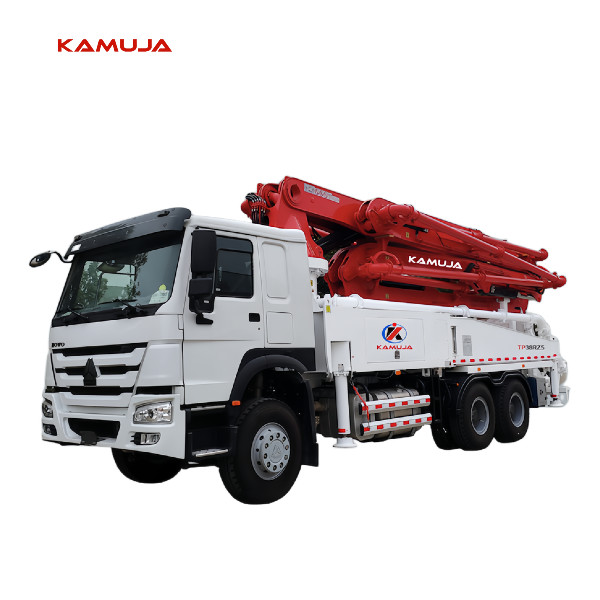

38m Boom Truck Mounted Concrete Pump KAMUJA 5 Section RZ Folding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | 38m Boom Truck Mounted Concrete Pump,38m truck mounted boom pump,5 Section Truck Mounted Concrete Pump |
||
|---|---|---|---|
Product Description
Kamuja Concrete Truck Mounted Pump, 38m Boom 5- Section "RZ" Folding
SPECIFICATION
| ITEMS | UNITS | TP38RZ5 |
| Drive mode | Electronic drive | |
| Main cylinder inner diameter × stroke | mm | φ150 ×1800 |
| Conveying cylinder inner diameter × stroke | mm | φ260 ×1800 |
| Valve form | S valve | |
| Piston form | Split type | |
| Discharge opening size | mm | 1 75 |
| Theoretical displacement of concrete | m 3 /h | Low pressure 170 |
| m 3 /h | high pressure 95 | |
| Theoretical pumping pressure | MPa | Low pressure 6.5 |
| MPa | High pressure 11.6 | |
| Theoretical pumping times | times / minute | Low pressure 29 |
| High pressure 16 | ||
| Hopper volume | L | 7 00 |
| Feeding height | m _ | ≤1.5 |
| slump | cm _ | 10 ~ 23 |
| Maximum aggregate size | mm _ | 40 |
| System oil pressure | MPa | 32 |
| High and low voltage switching | One-click automatic switching |
Power system
| ITEMS | UNITS | TP38RZ5 |
| Engine type | / | Four- stroke, in-line 6- cylinder |
| engine model | / | MC 11.40-5 0 |
| Engine power | kW/rpm | 297/1600-1900 |
| Maximum torque | N.m/rpm | 1900/1000-1400 |
| Exhaust emission standards | / | country V |
| engine capacity | L | 10.518 |
Gearbox
| ITEMS | UNITS | TP38RZ5 |
| Model | / | HW19710T |
| Control method | / | mechanical |
| Number of forward gears | / | 10 gears |
| Pumping gear | / | No. 10 gears |
Water Pump
| ITEMS | UNITS | TP38RZ5 |
| Drive mode | / | Hydraulic drive |
| Control method | / | Manual |
| Water pump model | / | 0720CS |
| water pump maximum pressure | Mpa | 7 |
| Concrete pipe cleaning methods | Washing / Dry cleaning | |
| Lubrication method |
Grease manual lubrication Hydraulic oil automatic lubrication |
|
Boom parts
| ITEMS | UNITS | TP38RZ5 |
| Boom type | / | 5- section "RZ" folding |
| The first section of the boom length/corner | mm/° | 8130/90 |
| Second section arm length/corner | mm/° | 6800/180 |
| Third section arm length/corner | mm/° | 6350/180 |
| Fourth section arm length/corner | mm/° | 6345/240 |
| Fifth section arm length/corner | mm/° | 6300/220 |
| Turntable rotation angle | ° | ±360 |
| Boom vertical height | m | 38 |
| Boom horizontal length | m | 34 |
| Conveying pipe diameter | DN 125 | |
| Fabric hose length | m | 3 |
| Hydraulic system pressure | MPa | 35 |
Branch leg
| ITEMS | UNITS | TP38RZ5 |
| Maximum spread of front outriggers | mm | 6071 |
| Maximum spread of rear outriggers | mm | 8151 |
| Hydraulic system pressure | MPa | 25 |
Power
| ITEMS | UNITS | TP38RZ5 |
| transfer case | / | Zhu Te |
| Main oil pump | / | Germany Rexroth |
| Boom / outrigger oil pump | / | Germany Rexroth |
| Auxiliary oil pump | / | Wanye |
Others
| ITEMS | UNITS | TP38RZ5 |
| Dimensions(L×W×H) | mm | 11195mm×2496mm×3995mm |
| Total Weight | kg | 293,000 |
| Chassis model | ZZ 5347 V 5 24HE1 | |
| Chassis drive mode | 6 ×4 | |
| maximum speed | km /h | 90 |
| Wheelbase(first wheelbase/second wheelbase) | mm | 4800/1400 |
| Wheelbase(front wheel/rear wheel) | mm | 2022/1830 |
| tire size | / | 31 5/80R22.5 |
| Minimum turning radius | m | 10.35 |
| Control method | / | Manual / remote control |
| remote control | / | German HBC |
| Water tank volume | L | 6 00 |
| Fuel tank volume | L | 6 00 |
| Hydraulic oil cooling method | / | air cooling |
