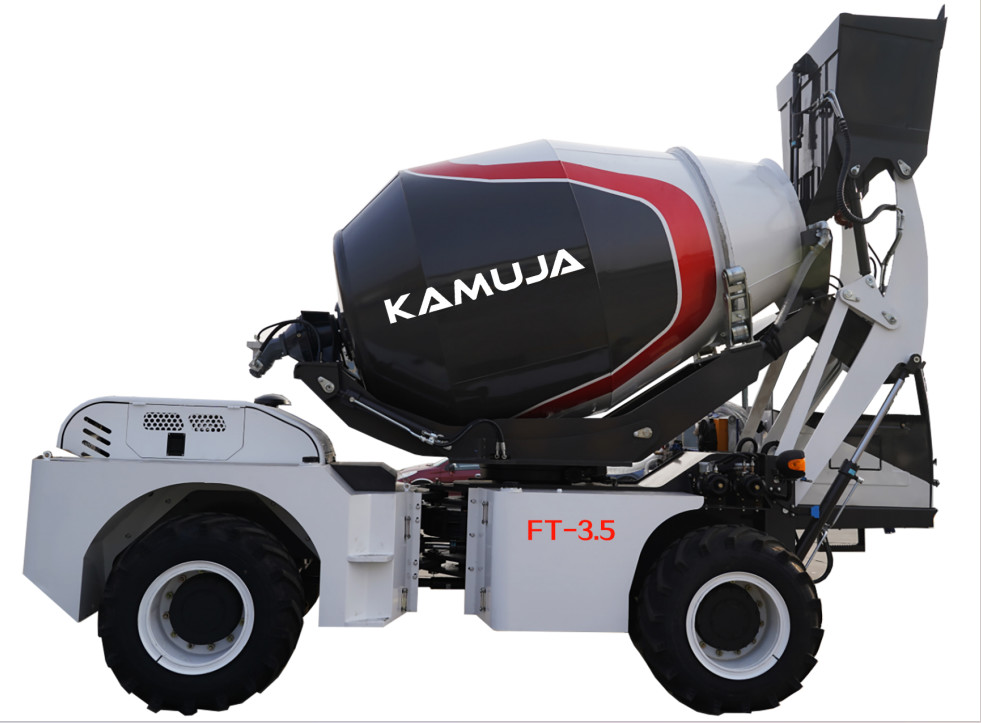

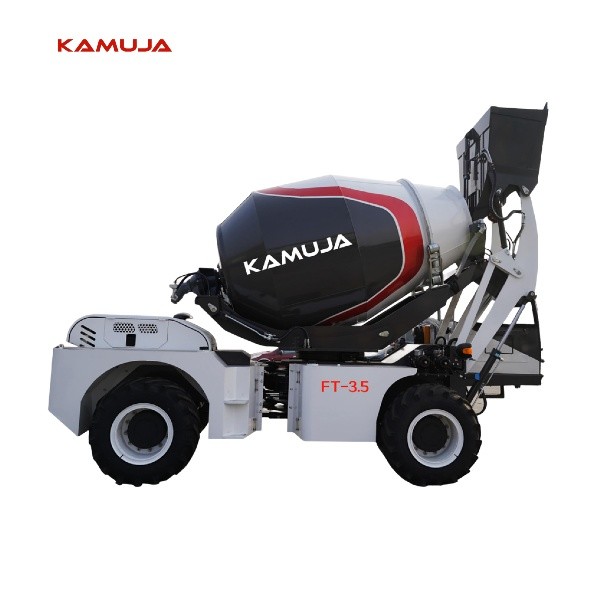

5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 3.5 Cubic Meters/5500L | Chassis Type | Truck Mounted |
|---|---|---|---|
| Control System | Fully Automatic | Discharge Method | Hydraulic, Electrical |
| Power Source | Diesel | Warranty | 1 Year |
| Water Supply System | Automatic | Cool System | Water-cooling,dry Air Filter |
| High Light | 5500l automatic concrete mixer,automatic concrete mixer 3.5m3,3.5m3 truck mounted feed mixer |
||
Product Description
Automatic Concrete Feeding Mixer-Output of concrete:3.5m³/tank
OVERALL
SPECIFICATIONS
| Item | Specification | Unit | FT-3.5 |
| Diesel Engine | Type | YCD4J22T-115 | |
| Total displacement cylinders | 4330cc,4-in-line | ||
| Injection | Direct injection and mechanical control | ||
| Cooling system | Water-cooling,dry air filter | ||
| Maximum power | Kw |
85 | |
| Maximum torque | N-m/r/min | 390/1900 | |
| Electric System | Generator | 28v-1260W 45A | |
| Battery | 2*12V-60AH(272A) | ||
| Speed | The first high speed/second high speed | Km/h | 0-17/0-33 |
| The first low speed/second low speed | Km/h | 0-6/0-12 | |
| Axle and Tyre | Rear axle oscillating | ± | 10° |
| Tyre | 16/70-20 | ||
| Mixing and Unloading | The geometrical volume of drum | L | 5500 |
| The rotation speed of drum | r/min | 22 | |
| Equipment Hydraulic System | Maximum flow rate | ml/r | 40/80 |
| Maximum pressure | Map | 20 | |
| Loading | Capacity | ㎥ | 0.56 |
| Times | 7 | ||
| Maintenance and Oil filling | Fuel tank | L | 158 |
| Total hydraulic system capacity | L | 158 | |
| Engine | L | 14 | |
| Weight | Operating weight | kg | 7550 |
| Max Weight | kg | 16300 | |
| Load-carrying capacity | kg | 8750 | |
| Steering | Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering. | ||
| 4*4 Four-Wheel Drive | Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed. | ||
| Brakes | External disc brake and emergency brake acting on four wheels, independent dual circuit brake and hand-control to braking. | ||
| Water system |
Hydraulic centrifugal self suction pump injection, the capacity is 14-16m³/h, Inside : it is 150L/min. The total capacity of two connected water tanks positioned opposite is 540L Visual flowmeter, the water intake of the roller by hand-control.
|
||
| Cab | Closed cab with heating system,tilting front window, humanized seat flexible suspension and height adjustment are provided. | ||
